Name: FESTO Vacuum nozzle VADMI-200 162510 26.4 V DC G 1/4, Muffler Nominal width (details) 2 mm Enclosure material Aluminium
Brand: FESTO
SKU: 2203682
Availability: BackOrder

Electric valve by Festo with blue and black components, showing model and serial number. Primary application in pneumatic systems.

Image similar

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 539.00 / piece)

€ 539.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Technical specifications

Muffler type: Closed
Fastening method: Optional:
With through hole
With internal thread
Ventilation time at nominal operating pressure: 0.15 s.
Operating pressure: 2 ... 8 bar
Operating medium: Compressed air according to ISO 8573-1:2010 [7:4:4]
Operating voltage range DC: 21.6 ... 26.4 V
All mounting positions permitted
Duty cycle: 1
Ejector characteristic: High vacuum
Electrical connection: Connector
Filter size<: = 40 µm
Manual override: Momentary
Note on operating and control medium: Oiled operation not possible
Integrated function: Discharge pulse valve electrical
Choke
Power-on valve
Filters
Check valve
Corrosion resistance class KBK: 2 - moderate corrosion stress
Max. Vacuum 0.85
Medium temperature: 0 ... 60 °C
Nominal operating pressure 6 bar
Nominal diameter Laval nozzle: 2 mm
Pneumatic connection 1: g1/4
Pneumatic connection 3: Integrated silencer
Product weight: 350 g
Pitch: 22 mm
IP65 rating
Ambient temperature: 0 ... 60 °C
Vacuum connection: G3 / 8
Valve function: Closed
Material seals: NBR
Material: Nickel-plated brass
Material filter: PA
Material filter housing: PC
Material casing: Aluminum wrought alloy
Material piston: POM
Material Muffler: PE
POM
Material jet nozzle: Nickel-plated brass
Material information: Free of copper and PTFE
Complies with RoHS
Approval: C UL us - Recognized (OL)

Operating medium: Compressed Air

Type: 162510

Product type: Vacuum nozzle

Operating voltage: 26.4 V DC

Enclosure material: Aluminium wrought alloy

Connection: G 1/4
Muffler

Max. operating pressure: 8 bar

Operating temperature: 0 °C (min)

Min. operating temperature: 0 °C

Type: Corrosion resistance class KBK: 2 - moderate corrosion stress

Manufacturer part #: 162510

Operating pressure (min.): 2 bar

Max. operating voltage: 26.4 V DC

Min. operating voltage: 21.6 V DC

Sealant: NBR

Time interval setting: 100 %

Function: closed

Weight: 350 g

Media temperature (range): 0 up to 60 °C

Max. media temperature: 60 °C

Media temperature (min.): 0 °C

Medium: Compressed air

Nominal width: 2 mm

Features: P port connector (G1/4)

: IP65

Max. ambient temperature: +60 °C

Min. ambient temperature: 0 °C

Operating principle: OFF/NC

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Connection

Type

FESTO Vacuum nozzle VADMI-200 162510 26.4 V DC G 1/4, Muffler Nominal width (details) 2 mm Enclosure material Aluminium wrought alloy Sealant NBR OFF/NC

Item no:2203682

Dispatches on Tue 27 Oct

Conrad Electronic

This article

G 1/4

162510

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 539.00^*

FESTO Vacuum nozzle VADMI-200-LS-P 171061 26.4 V DC G 1/4, Muffler Nominal width (details) 2 mm Enclosure material Aluminium wrought alloy Sealant NBR OFF/NC

Item no:2203720

Dispatches on Tue 27 Oct

Conrad Electronic

G 1/4

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,389.00^*

FESTO Vacuum nozzle VADMI-300-P 162534 26.4 V DC G 1/4, Muffler Nominal width (details) 3 mm Enclosure material Aluminium wrought alloy Sealant NBR OFF/NC

Item no:2203706

Dispatches on Tue 27 Oct

Conrad Electronic

G 1/4

162534

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,039.00^*

FESTO Vacuum nozzle VADMI-140 162509 26.4 V DC G 1/8, Muffler Nominal width (details) 1.4 mm Enclosure material Aluminium wrought alloy Sealant NBR OFF/NC

Item no:2203681

Unavailable

Conrad Electronic

G 1/8

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 340.00^*

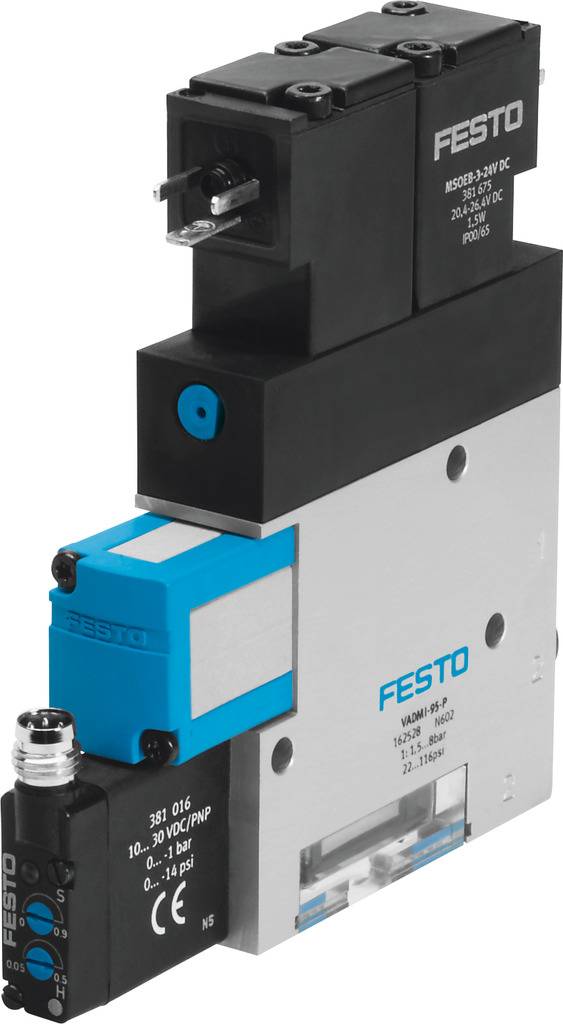

FESTO Vacuum nozzle VADMI-140-LS-N 171060 26.4 V DC G 1/8, Muffler Nominal width (details) 1.4 mm Enclosure material Aluminium wrought alloy Sealant NBR

Item no:2203719

Unavailable

Conrad Electronic

G 1/8

171060

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 909.00^*

FESTO Vacuum nozzle VADMI-140-LS-P 171059 26.4 V DC G 1/8, Muffler Nominal width (details) 1.4 mm Enclosure material Aluminium wrought alloy Sealant NBR OFF/NC

Item no:2203718

Unavailable

Conrad Electronic

G 1/8

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 909.00^*

FESTO Vacuum nozzle VADMI-140-N 162531 26.4 V DC G 1/8, Muffler Nominal width (details) 1.4 mm Enclosure material Aluminium wrought alloy Sealant NBR OFF/NC

Item no:2203703

Unavailable

Conrad Electronic

G 1/8

162531

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 615.00^*

FESTO Vacuum nozzle VADMI-140-P 162530 26.4 V DC G 1/8, Muffler Nominal width (details) 1.4 mm Enclosure material Aluminium wrought alloy Sealant NBR OFF/NC

Item no:2203702

Unavailable

Conrad Electronic

G 1/8

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 615.00^*

FESTO Vacuum nozzle VADMI-200-LS-N 171062 26.4 V DC G 1/4, Muffler Nominal width (details) 2 mm Enclosure material Aluminium wrought alloy Sealant NBR OFF/NC

Item no:2203721

Unavailable

Conrad Electronic

G 1/4

171062

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 925.00^*

FESTO Vacuum nozzle VADMI-200-N 162533 26.4 V DC G 1/4, Muffler Nominal width (details) 2 mm Enclosure material Aluminium wrought alloy Sealant NBR OFF/NC

Item no:2203705

Unavailable

Conrad Electronic

G 1/4

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 625.00^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2203682 FESTO Vacuum nozzle VADMI-200 162510 26.4 V DC G 1/4, Muffler Nominal width (details) 2 mm Enclosure material Aluminium

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
