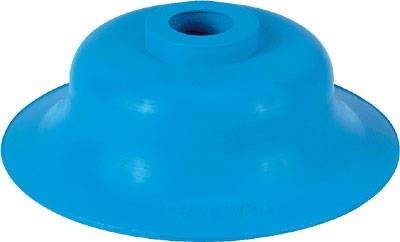

Image similar
FESTO Vacuum suction cup ESV-30-SU 190985 Sealant PUR
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 14.99 / piece)
€ 14.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Technical specifications
- Connection position: Top
- Operating medium: Atmospheric air in accordance with ISO 8573-1:2010 [7:-:-]
- All mounting positions permitted
- Colour : blue
- Holding force at nominal operating pressure 40.8 N.
- Food suitability: See extended material information
- Min Workpiece radius R: 110 mm
- Product weight: 2.7 g
- Suction unit diameter 30 mm
- Suction cup shape: Round flat
- Suction unit volume: 0.867 cm3
- Shore hardness 60 +/- 5
- Ambient temperature: -20 ... 60 °C
- Material suction unit: Pure
- Material information: Free of copper and PTFE
- Lab containing substances
- Complies with RoHS
- Operating medium
Atmospheric air
- Type
190985
- Product type
Vacuum suction cup
- Operating temperature
-20 °C (min)
- Min. operating temperature
-20 °C
- Manufacturer part #
190985
- Sealant
PUR
- Weight
2.7 g
- Medium
Natural air
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-20 °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2203990 FESTO Vacuum suction cup ESV-30-SU 190985 Sealant PUR
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
