Automation & PneumaticsAutomationElectrical Switching ComponentsContactors

Finder 22.74.0.230.1310 Remote switch 4 makers 7000 VA 230 V Compatible with (relay brand): Finder Piece 1 pc(s)

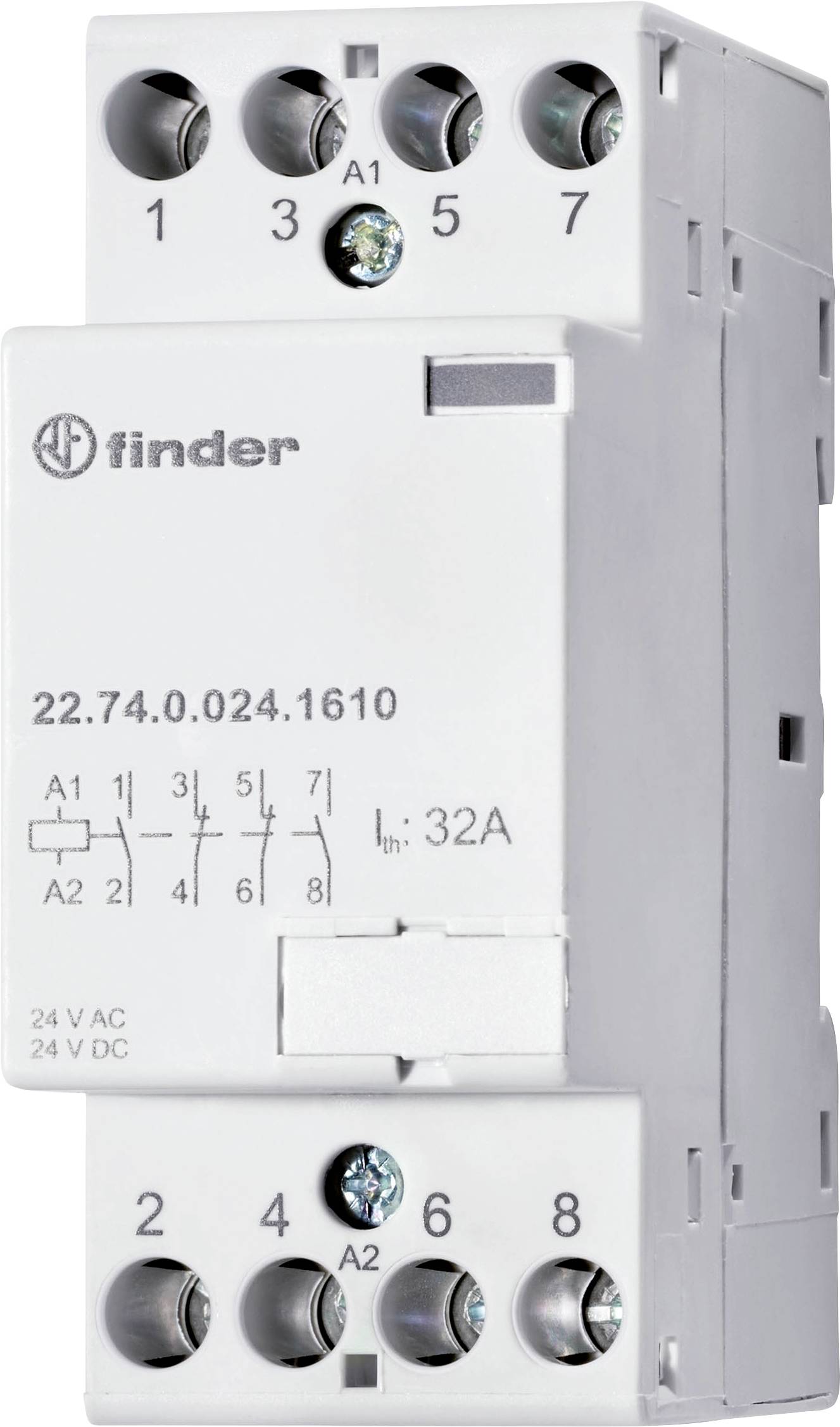

A white electronic relay with the inscription 'Finder 22.74.0.024.1610', showing connection options and rating '32A, 24V AC/DC'.

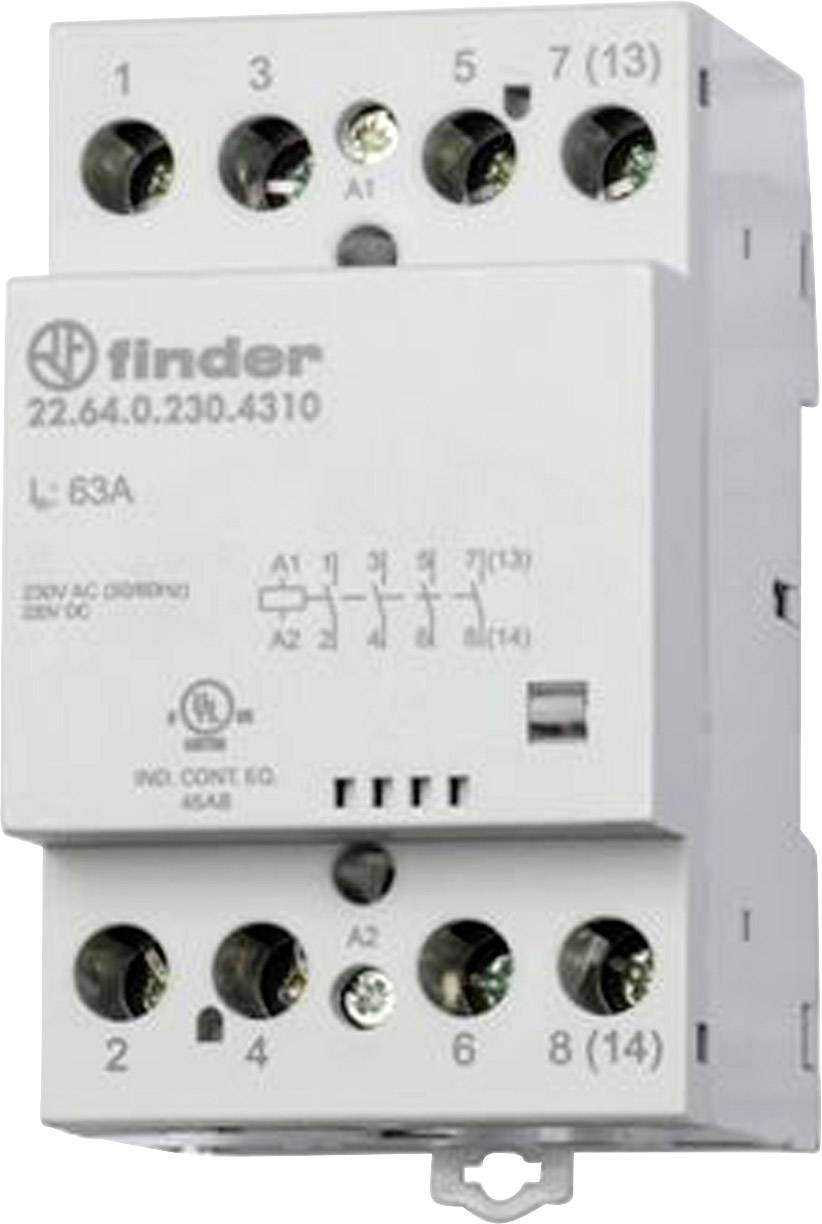

A white contactor with multiple terminals and the marking 'Finder 22.64.0.230.4310', suitable for 230V AC and 63A.
1/2
Product type
Remote switch
No. of pins
4-pin
Nominal voltage
230 V
Power
7000 VA
Packaging type
Piece
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 5 Nov
8 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 67.99 / piece)
€ 67.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 8 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

Packaging type

Piece

Product type

Remote switch

Type

22.74.0.230.1310

No. of pins

4-pin

Contact type

4 makers

Contact material

Ag/Ni (hard silver)

Auxiliary contact type

4 makers

Nominal voltage

230 V

Switching voltage (min.)

230 V AC

Switching voltage (max.)

230 V AC

Max. switching capacity

6 VA

Permanent current (max.)

32 A

7000 VA

Compatible with

Finder

Mounting type

DIN rail

Durability

10000000

IP20

Min. temperature

-15 °C

Max. temperature

+55 °C

Width

17.5 mm

Depth

60.8 mm

Dim

(W x D) 17.5 mm x 60.8 mm

Content

1 pc(s)

RoHS-compliant

Yes

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 2290408 Finder 22.74.0.230.1310 Remote switch 4 makers 7000 VA 230 V Compatible with (relay brand): Finder Piece 1 pc(s)

Datasheet 2290408 Finder 22.74.0.230.1310 Remote switch 4 makers 7000 VA 230 V Compatible with (relay brand): Finder Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2290408 Finder 22.74.0.230.1310 Remote switch 4 makers 7000 VA 230 V Compatible with (relay brand): Finder Piece 1 pc(s)
