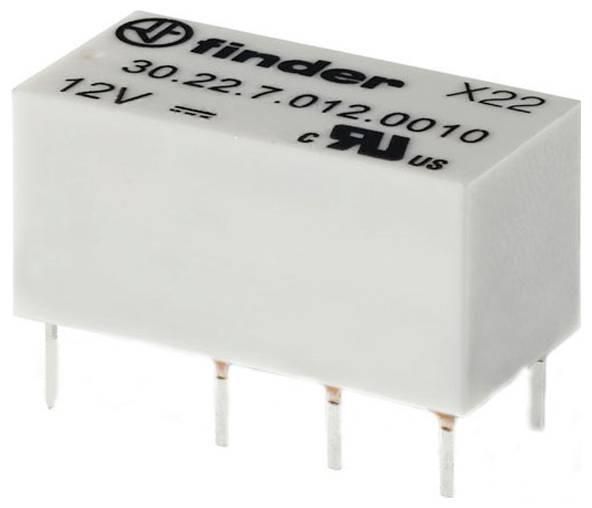

Finder 30.22.9.012.0010 PCB relay 12 V DC 2 A 2 change-overs 1 pc(s)
Product type
PCB relay
Coil nominal voltage
12 V DC
Contact type
2 change-overs
Switching voltage (max.)
250 V AC
Switching current (max.)
2 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 6.49 / piece)
€ 6.49
incl. VAT
14-day return policy included
Highlights & Details
Dual-in-line relay
- Contact material AgNi hard gold plated
- Coil data 12 V DC, 0.4 W, 360 ohms
- Relay protection type: RT III
Technical specifications
- Product type
PCB relay
- Type
30.22.9.012.0010
- Coil nominal voltage
12 V DC
- Min. pick-up voltage
9 V DC
- Max. pick-up voltage
18 V DC
- Resistance (coil)
360 Ω
- Coil voltage rating
0.4 W
- Contact type
2 change-overs
- Contact material
AgNi+Au
- Switching voltage (max.)
250 V AC
- Switching current (max.)
2 A
- Response time
6 ms
- Fall time
4 ms
RT III
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Width
10.1 mm
- Height
11.4 mm
- Depth
20.3 mm
- Dim
(W x H x D) 10.1 x 11.4 x 20.3 mm
- Industrial packaging
Yes
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3702229 Finder 30.22.9.012.0010 PCB relay 12 V DC 2 A 2 change-overs 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3702229 Finder 30.22.9.012.0010 PCB relay 12 V DC 2 A 2 change-overs 1 pc(s)
Description
Print relay with 2 changers for 3 A/125 V AC
This text is machine translated.
This text is machine translated.
