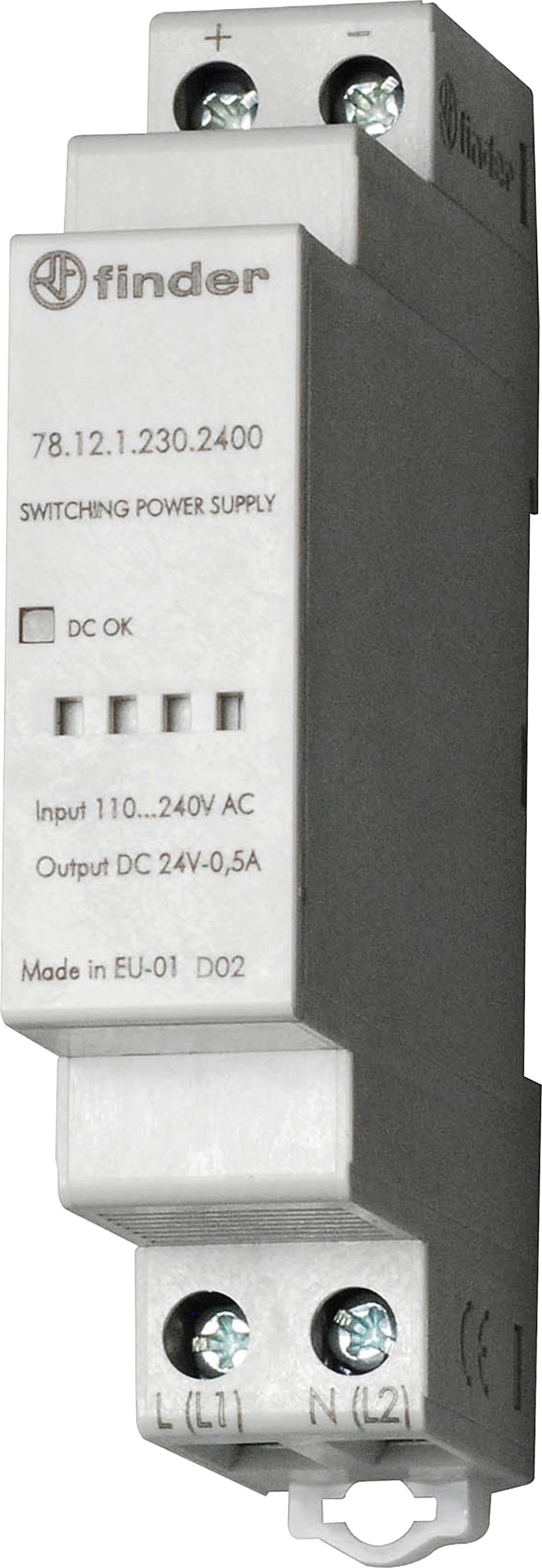

Finder 78.12.1.230.2402 SMPSU 24 V DC 0.63 A 12 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 63.99 / piece)
€ 63.99
incl. VAT
Only 2 Piece(s) available
Highlights & Details
Switched PSU 24 V/12 W
- DIN rail switched-mode power supply
- Input 110-240 V AC or 220 V DC
- At AC voltage the power supply switches at zero crossing
- Output 12 W at 24 V DC
- Output nominal current 0.5 A
- LED driver for LED light bands and LED lamps
- TÜV-certified as per IEC 61347-2-13
- Suitable for SELV applications (EN 60950)
- Internal thermal protection
- Short-circuit protection at output
- Width 17.5 mm
- For mounting rail 35 mm (EN 60715)
- This text is machine translated.
Technical specifications
- Type
One-phase DC industrial switching power supply for control cabinets.
- Nominal input voltage
100-240 V/AC
- Product type
SMPSU
- Inputs
1
- Input voltage
110-240 V AC (50/60 Hz) or 220 V DC.
- Input voltage (max.)
265 V AC
370 V DC
- Max. output current
0.63 A
- Output current (max.) - rounded
630 mA
12 W
- Output type (power supply units)
Fixed voltage
- Output voltage (nominal)
24 V DC
- No. of outputs
1 x
- Dim
(L x W x H) 61 x 17.5 x 88.8 mm
- Output voltage (min.)
24 V DC
- Operating temperature (max.)
+40 °C
- Manufacturer part #
78.12.1.230.2402
- Content
1 pc(s)
- PSU features
Surge protection
- Width
17.5 mm
- Height
88.8 mm
- Length
61 mm
IP20
- Max. temperature
40 °C
- Min. temperature
-20 °C
- Type
78.12
- Efficiency
85 %
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3702276 Finder 78.12.1.230.2402 SMPSU 24 V DC 0.63 A 12 W No. of outputs:1 x Content 1 pc(s)
Datasheet 3702276 Finder 78.12.1.230.2402 SMPSU 24 V DC 0.63 A 12 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3702276 Finder 78.12.1.230.2402 SMPSU 24 V DC 0.63 A 12 W No. of outputs:1 x Content 1 pc(s)
