Finder 7P.24.8.275.0020 7P.24.8.275.0020 Surge arrester 20 kA 1 pc(s)

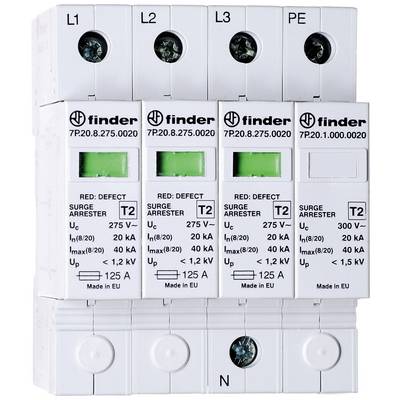

The image shows an overvoltage protection device with four modules designed to safeguard electrical circuits against voltage spikes.
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 164.99 / piece)
€ 180.00
-8 %
€ 164.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Nominal leakage surge current 20 kA
Product type

Surge arrester

Leakage current

20 kA

Nominal voltage

230 V DC/AC

Type

SPD type 2

Operating temperature

-40 - +80 °C

IP20

Manufacturer part #

7P.24.8.275.0020

Factory colour

White

Width

71.8 mm

RoHS-compliant

Yes

Content

1 pc(s)

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2586113 Finder 7P.24.8.275.0020 7P.24.8.275.0020 Surge arrester 20 kA 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2586113 Finder 7P.24.8.275.0020 7P.24.8.275.0020 Surge arrester 20 kA 1 pc(s)

Description

Surge arrester type 2, modules replaceable, between L1, L2, L3 - N and spark gap between N - PE, for 3-phase TN-S and TT-networks, without telecommunications contact, width 71.8 mm

This text is machine translated.
