Name: Fischer 045683 TherMax Spacer fittings 200 mm 18 mm 2 pc(s)
Brand: Fischer
SKU: 2645211
Availability: InStock

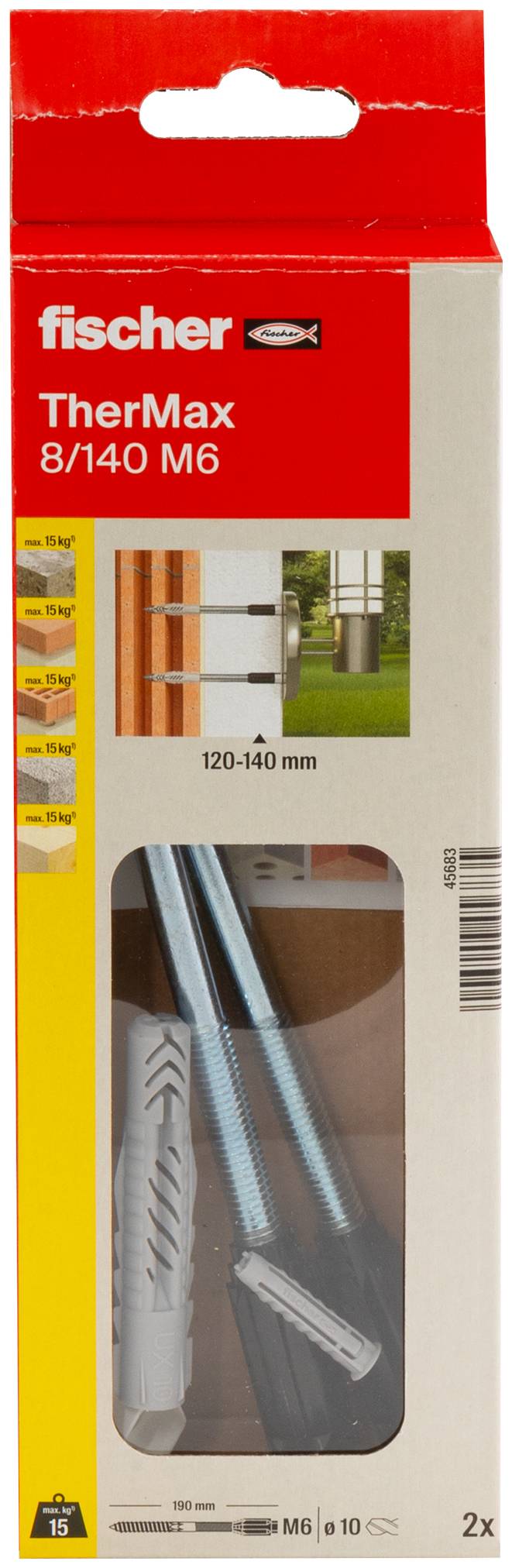

Packaging for Fischer TherMax 8/140 M6 wall anchor kit, showing two anchors and a drill installation illustration for 120-140 mm walls.

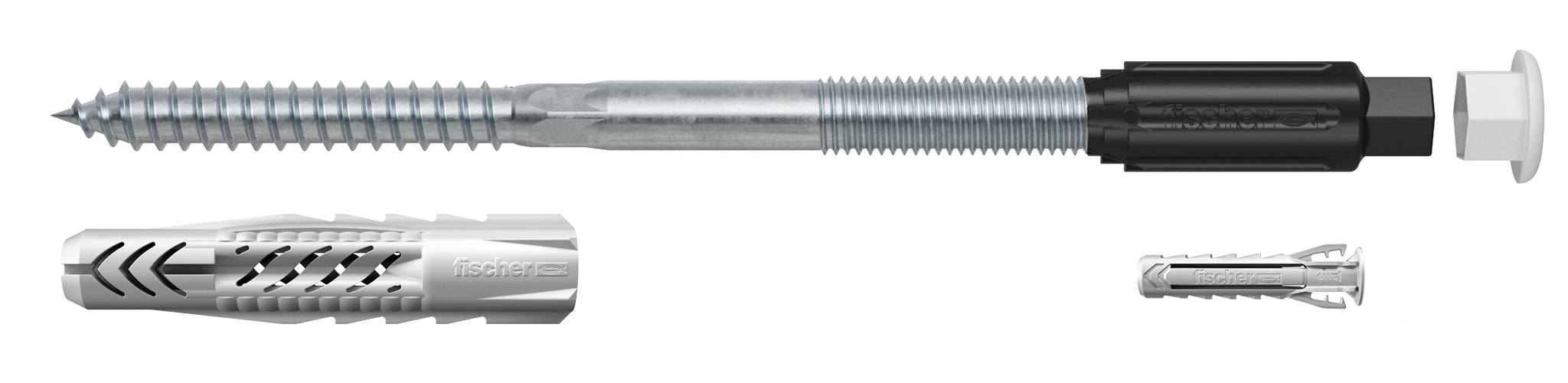

A metal wall anchor and screw set, shown assembled with a long screw through a black plastic sleeve, plus two views of the anchor parts.

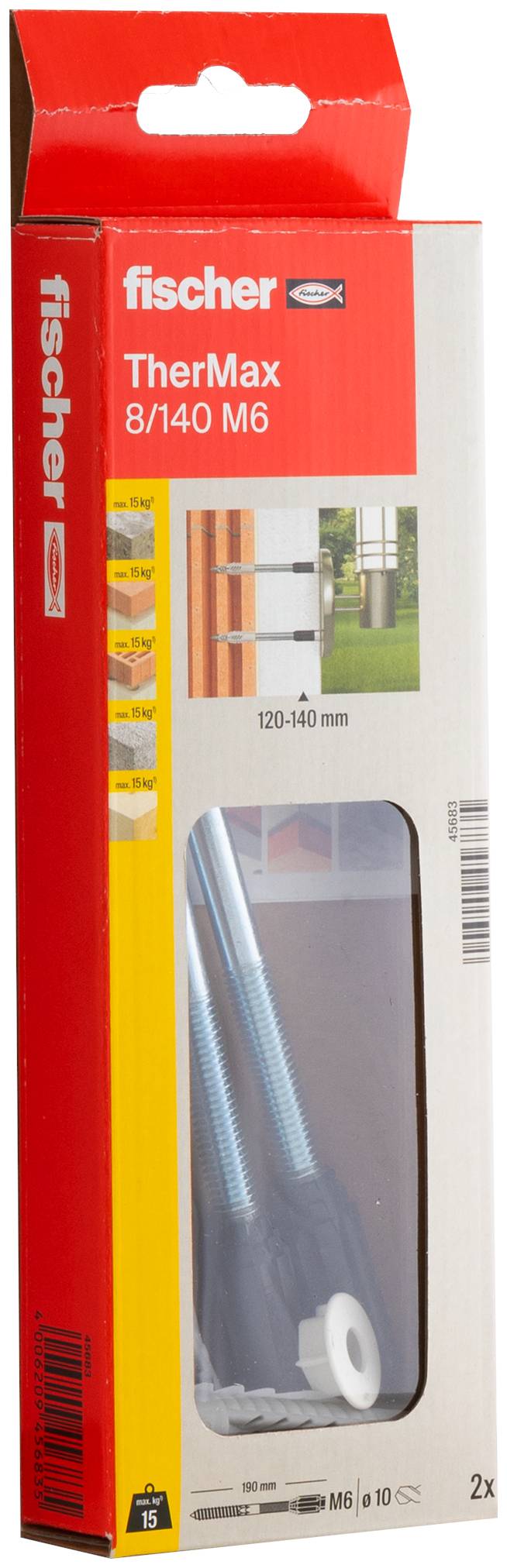

Image of a Fischer TherMax 8/140 M6 wall insulation anchor kit box, red packaging showing the product, dimensions 120-140 mm, and '2x' quantity.<br>

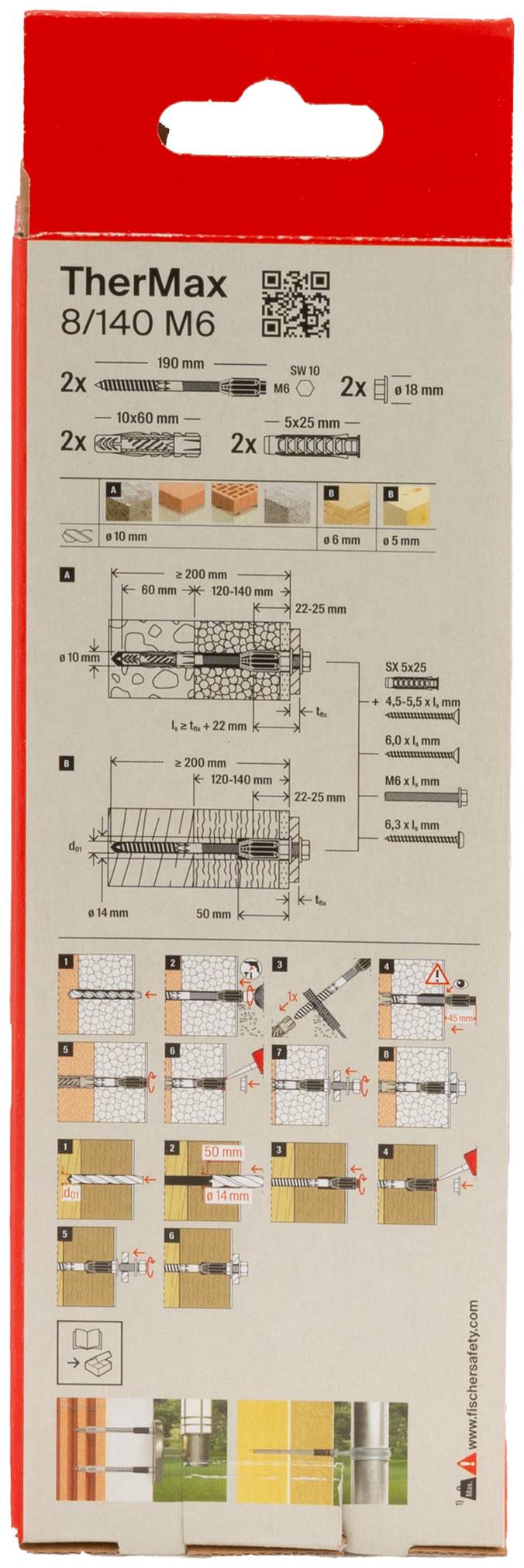

Packaging for TherMax 8/140 M6 anchor system, showing technical diagrams, dimensions, installation steps, and load/material compatibility icons.

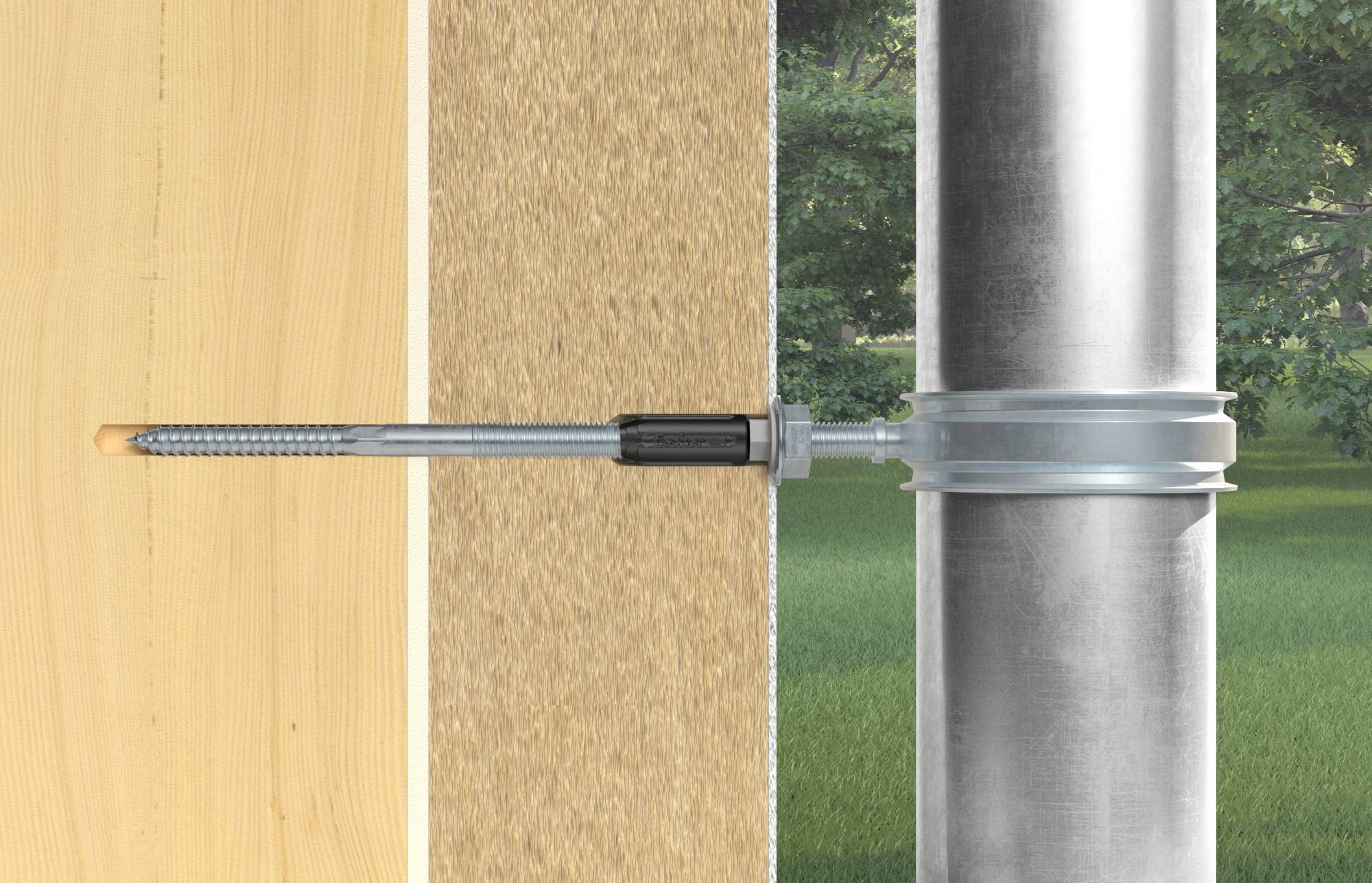

Diagram of a wall anchor bolt driven through wood and insulation into a metal pipe or post, showing fastening through layered materials.

Two wall anchors secure a metal bracket through brick and insulation, supporting a vertical pipe or post on the exterior side of a building.

1/6

EAN:

Part number:

Item no:

Fast track dispatch on Tue 3 Nov

11 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 2 pc(s))

Set(s)

Total (€ 10.99 / piece)

€ 10.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Fischer TherMax 8/140 M6 spacer installation system (2)

No heat bridge through anti-cold cone
Installation without setting tool. This saves time
Self-milling plastic cone
Exact adjustment of the attachment without pressure marks and damage of the WDVS
Suitable for all building materials

Technical specifications

(Ø): 18 mm

Product type: Spacer fittings

Material: Plastic
Steel

Length: 200 mm

Screw diameter: 10 mm

Dim: (Ø x L) 18 mm x 200 mm

Suitable for: Concrete
Cored bricks
Flintlime bricks
Flintlime hollow bricks
Bricks

Content: 2 pc(s)

Material properties: fibreglass-reinforced
zinc galvanized

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2645211 Fischer 045683 TherMax Spacer fittings 200 mm 18 mm 2 pc(s)

Description

The Fischer Thermax distance mounting system is a solution for attachment in the outer wall without thermal bridges in the WDVS. The stock screw with the glass fiber reinforced cone milled itself automatically through the plaster into the insulation material. During installation, the stock screw is rotated into the universal dowel UX and thus anchored securely in the building material. The anti-cold cone on the head of the stock screw interrupts the thermal bridge and takes the external fixing. The Thermal Max attaches light loads such as lamps, letter boxes or lightning conductors in concrete, porous concrete and masonry from perforated and solid stone.

This text is machine translated.

Features

The distance mounting allows the attachment to be adjusted to the exact positioning, avoiding pressure marks or damaging the WDVS.
The plastic cone interrupts the thermal bridge between the attachment and the inner mounting and offers an energy-optimized mounting.
The glass-fiber reinforced plastic cone milled itself positively into the WDVS and enables simple, fast mounting without special tools.
The combination with the universal dowel UX securely anchored in the underground.
Without the UX plug, direct installation in wooden base is also possible after pre-drilling.
