Name: Fischer 503787 FIS H 12 x 85 K K NV Anchor plug 85 mm 12 mm 1 Set
Brand: Fischer
SKU: 3065962
Availability: InStock

Package of four gray Fischer FIS H 12x85 K wall anchors for 12 mm holes, shown in clear plastic packaging.

A cylindrical white plastic mesh filter cartridge with perforated sides and capped ends, shown horizontally on a plain background.

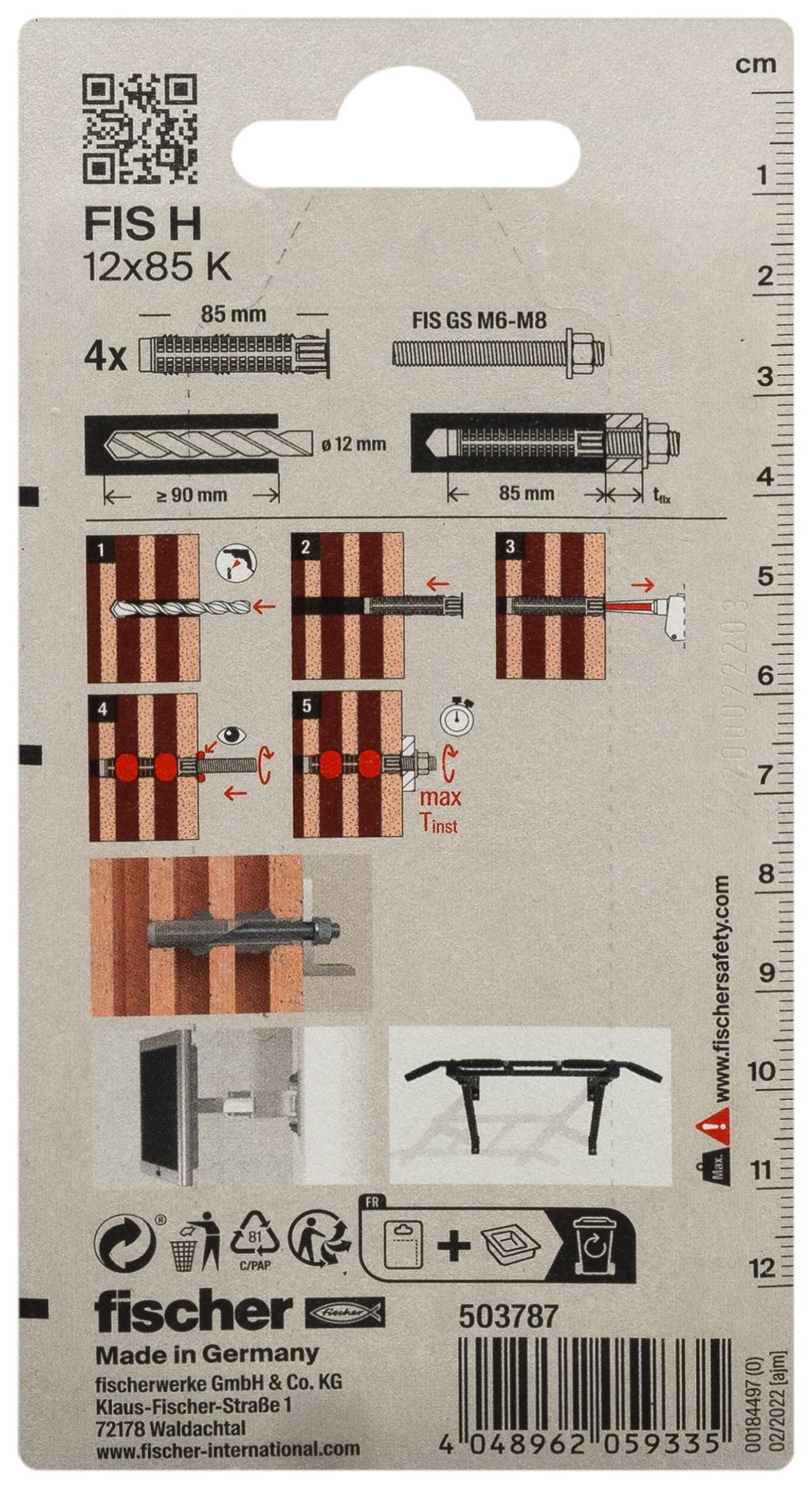

FIS H 12x85 K fastening kit package showing 4 anchors, screw, and drill hole/tightening installation steps with size diagram.

Close-up of a timber bolt fastening a diagonal wooden brace to a wall, illustrating a structural connection detail.

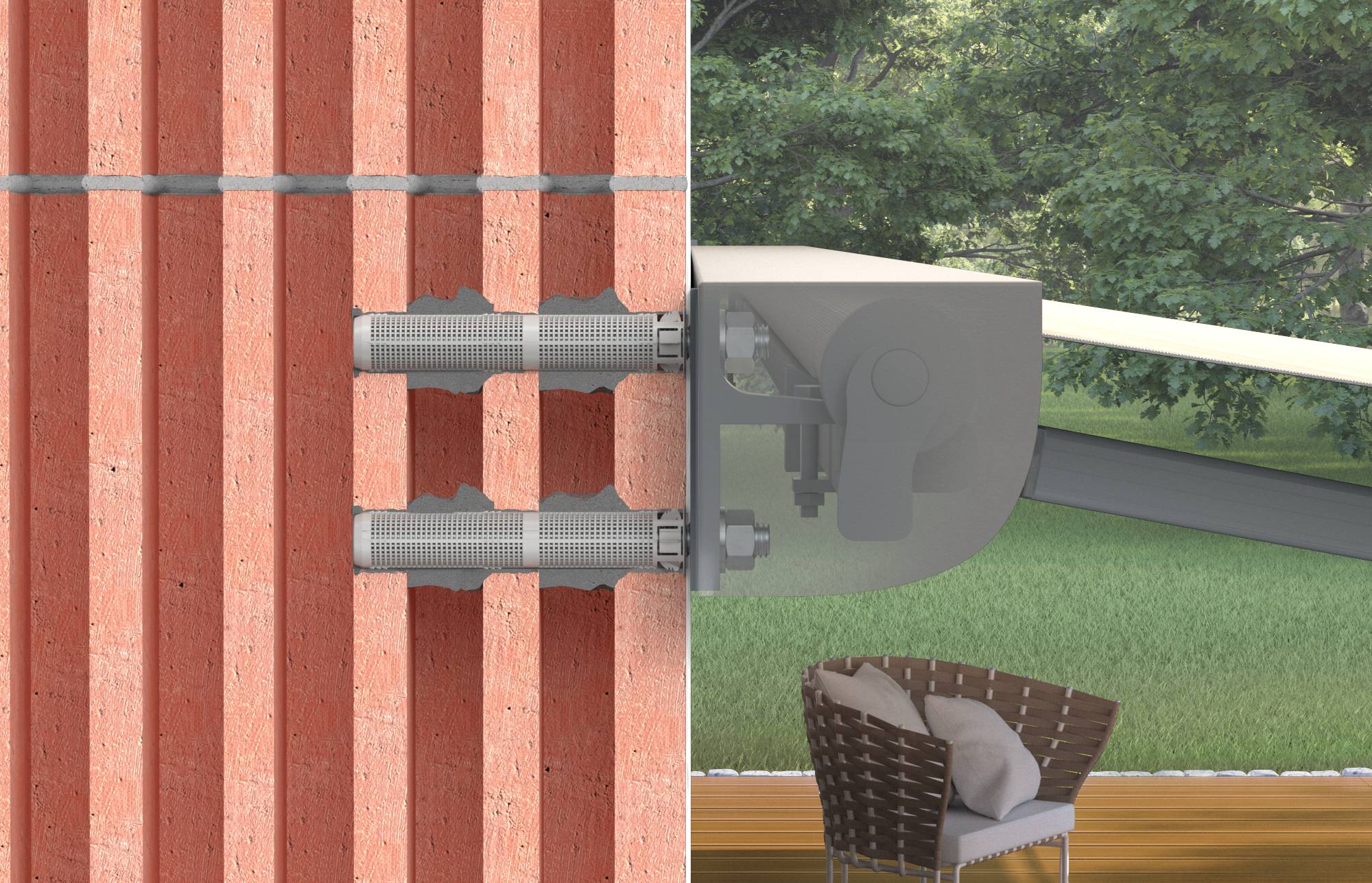

Close-up cutaway of a deck railing post connector bolted through a brick wall, showing the hidden metal bracket anchored to support the railing.

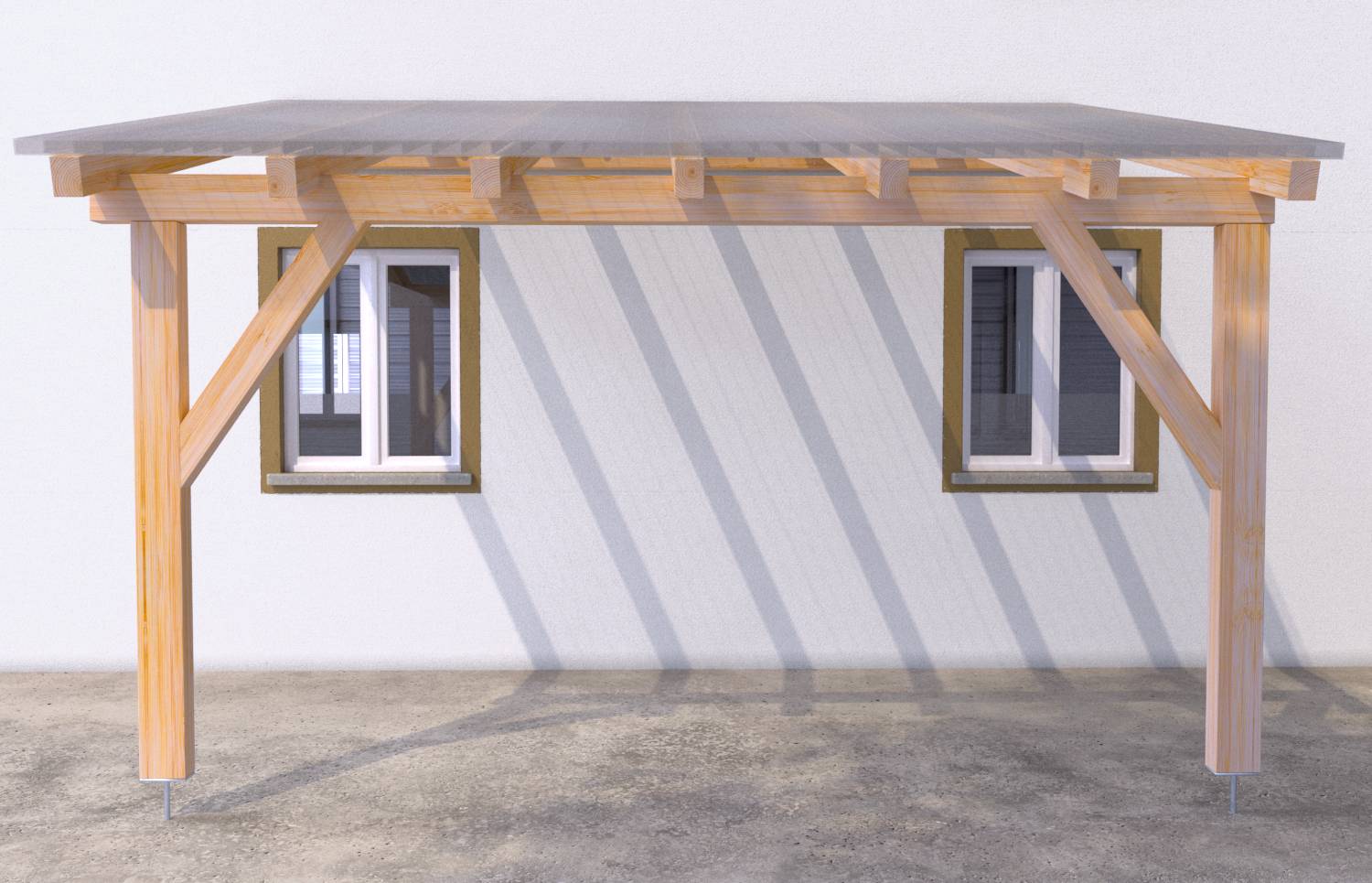

Wooden patio roof canopy with four posts and angled braces attached to a wall, casting diagonal shadows on the white facade.

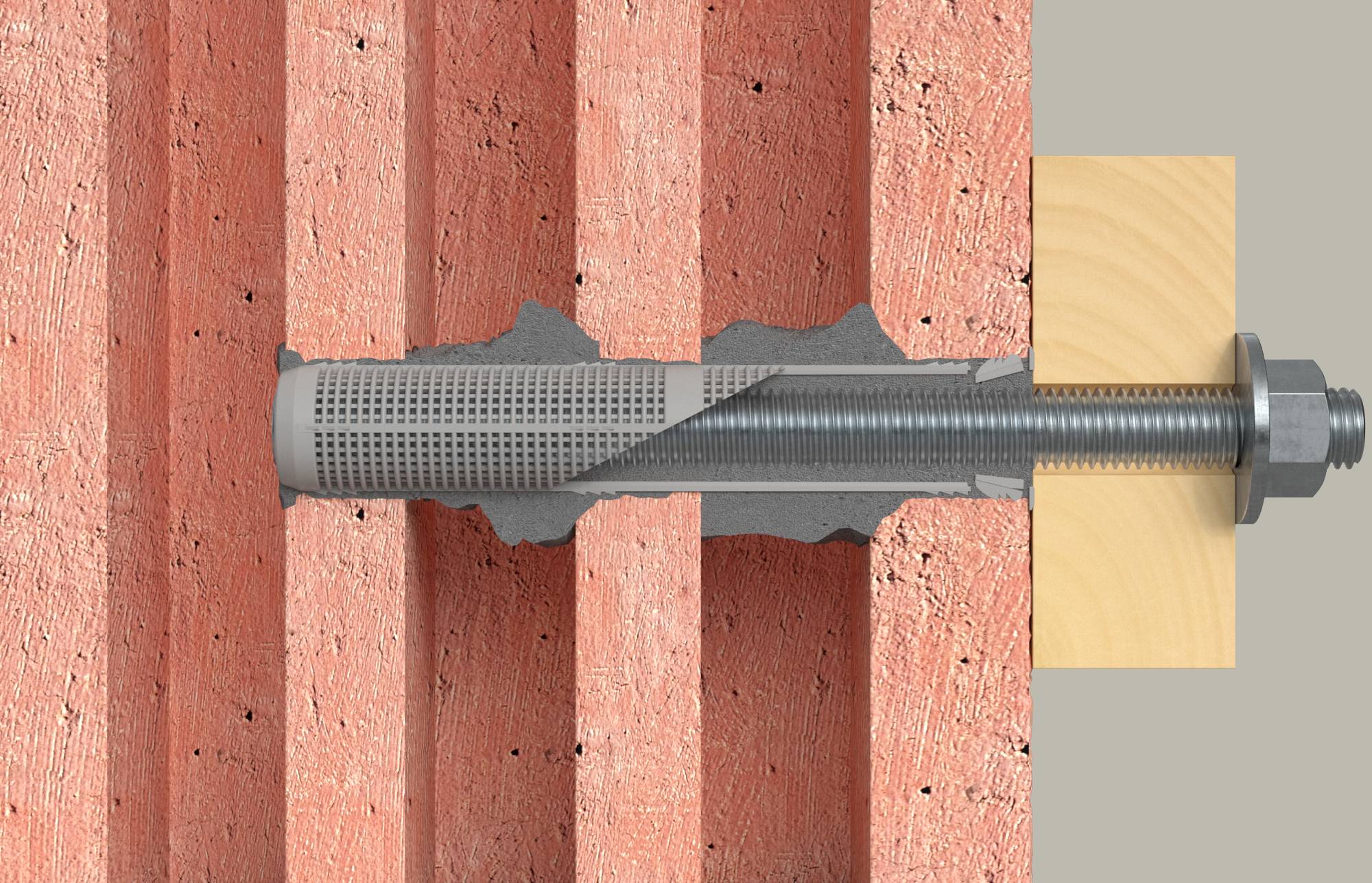

Cutaway showing a wall anchor bolt screwed into a brick wall, with a threaded rod secured through the masonry and into a wood block on the right.

Cutaway of a metal expansion anchor bolt fixed into a brick wall, showing the sleeve expanding inside the masonry and a nut and bracket on the exterior.

1/8

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Tue 3 Nov

35 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Set(s)

Total (€ 3.99 / piece)

€ 3.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Fischer FIS H 12 x 85 K injection anchor sleeve, plastic

Grid structure of the anchor sleeve reduces mortar consumption.
Anchor plug enables optimum fit in perforated brick.
Centering wings fix anchor rods with different diameters. This reduces complexity and storage.
Hooks: No falling out when overhead mounting.
ETA-approval.

Technical specifications

(Ø): 12 mm

Product type: Anchor plug

Material: Plastic

Length: 85 mm

Dim: (Ø x L) 12 mm x 85 mm

Suitable for: Cored bricks
Structural lightweight concrete
Concrete
Flintlime hollow bricks
Flintlime bricks
Solid brick
Hollow pumice slabs
Hollow ceiling panels
Pumice

Content: 1 Set

Outside Ø: 12 mm

Variants(All information include VAT, plus shipping costs)

Length

Dim

(Ø)

Content

Fischer 503787 FIS H 12 x 85 K K NV Anchor plug 85 mm 12 mm 1 Set

Item no:3065962

Fast track dispatch on Tue 3 Nov

35 Set(s)Conrad Electronic

This article

85 mm

(Ø x L) 12 mm x 85 mm

12 mm

1 Set

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3.99^*

Fischer 503788 FIS H 16 x 85 K K NV Anchor plug 85 mm 16 mm 1 Set

Item no:3065963

Fast track dispatch on Tue 3 Nov

28 Set(s)Conrad Electronic

85 mm

(Ø x L) 16 mm x 85 mm

16 mm

1 Set

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 6.99^*

Fischer 522836 FIS H 20 x 85 K K NV Anchor plug 85 mm 20 mm 1 Set

Item no:3065976

Fast track dispatch on Tue 3 Nov

3 Set(s)Conrad Electronic

85 mm

(Ø x L) 20 mm x 85 mm

20 mm

1 Set

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 4.99^*

Fischer 532658 FIS H 16 x 130 K K NV Anchor plug 130 mm 16 mm 1 Set

Item no:3065859

Fast track dispatch on Tue 3 Nov

13 Set(s)Conrad Electronic

130 mm

(Ø x L) 16 mm x 130 mm

16 mm

1 Set

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 8.99^*

Fischer 41900 FIS H 12 x 50 K Anchor plug 50 mm 12 mm 50 pc(s)

Item no:477618

Unavailable

30 Set(s)Conrad Electronic

50 mm

(Ø x H) 12 mm x 90 mm

12 mm

50 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 41901 FIS H 12 x 85 K Anchor plug 85 mm 12 mm 50 pc(s)

Item no:477620

Unavailable

30 Set(s)Conrad Electronic

85 mm

(Ø x L) 12 mm x 85 mm

12 mm

50 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 41902 FIS H 16 x 85 K Anchor plug 85 mm 16 mm 50 pc(s)

Item no:477622

Unavailable

30 Set(s)Conrad Electronic

85 mm

(Ø x H) 16 mm x 180 mm

16 mm

50 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 41903 FIS H 16 x 130 K Anchor plug 110 mm 16 mm 20 pc(s)

Item no:477623

Unavailable

Conrad Electronic

110 mm

(Ø x H) 16 mm x 90 mm

16 mm

20 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 41904 FIS H 20 x 85 K Anchor plug 85 mm 20 mm 20 pc(s)

Item no:477624

Unavailable

Conrad Electronic

85 mm

(Ø x L) 20 mm x 85 mm

20 mm

20 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 46703 FIS H 20 x 130 K Anchor plug 110 mm 20 mm 20 pc(s)

Item no:477853

Unavailable

Conrad Electronic

110 mm

(Ø x L) 20 mm x 110 mm

20 mm

20 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 3065962 Fischer 503787 FIS H 12 x 85 K K NV Anchor plug 85 mm 12 mm 1 Set

User & Safety Instructions

User & Safety Instructions 3065962 Fischer 503787 FIS H 12 x 85 K K NV Anchor plug 85 mm 12 mm 1 Set

Description

The Fischer FIS H K injection armature sleeve is the system component for a professional and mortar-saving assembly of the FIS A anchor rod or the FIS E internal thread anchor in the brickwork. The Fischer FIS V, FIS VW HIGH SPEED injection mortar, multi-function mortar, assembly mortar and Green assembly mortar can be used for this purpose. The optimized grid structure reduces the consumption of the injection mortar. When setting the anchor rod and the internal thread anchor, the mortar is pressed through the grid structure and connects to the perforated stone in the form closure. This will route the load into the building material. It is placed in the pre-plug mounting. Non-load-bearing layers can be bridged with the injection anchor sleeve. The approvals for the injection mortar must be observed.
