Name: Fischer 567823 SX Plus Spring toggle 40 mm 8 mm 20 pc(s)
Brand: Fischer
SKU: 2858415
Availability: InStock

Package of Fischer SX Plus wall plugs, 8x40 mm, 20 pieces, for 8 mm drill holes, shown in clear blister packaging.

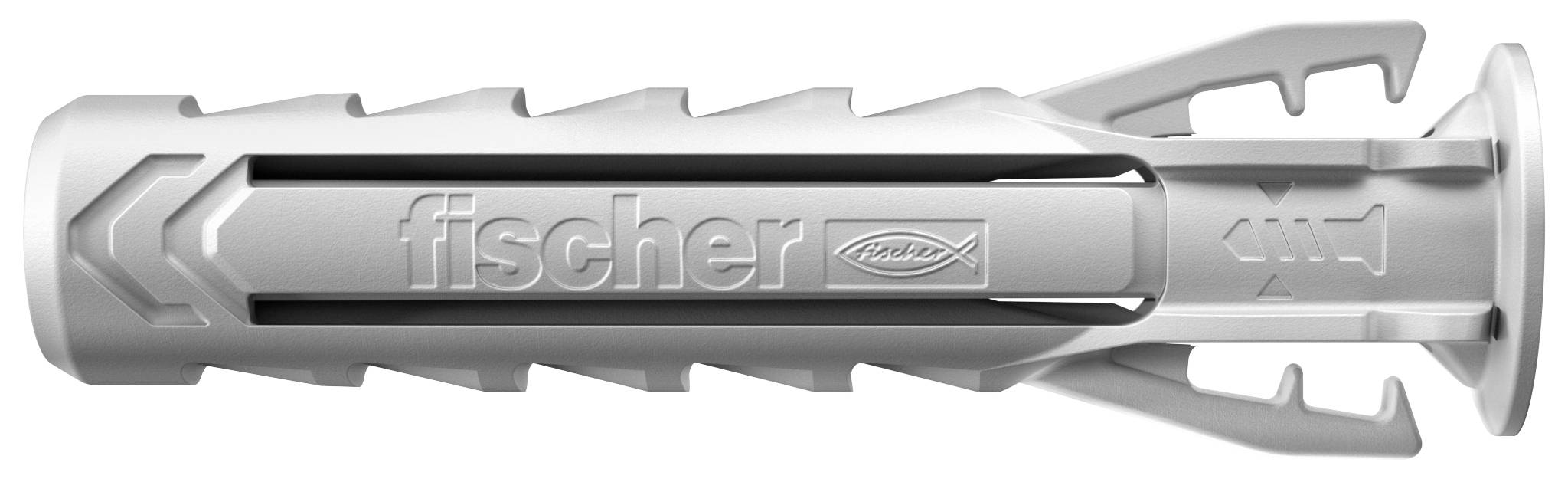

A silver Fischer wall anchor with ribbed sides and a central screw channel, shown on a plain white background.

Fischer SX Plus 8x40 wall plug packaging shows installation steps, drill size 8 mm, load sizes, and product code 567823.<br>

Two white shelves with neatly arranged ring binders in red, white, and gray, suggesting an organized office filing system.

Flat-screen monitor mounted on an adjustable wall bracket, shown in side view against a plain wall.

Illustration of a wall anchor and screw showing installation: anchor in masonry on the left and screw driven into wood on the right.

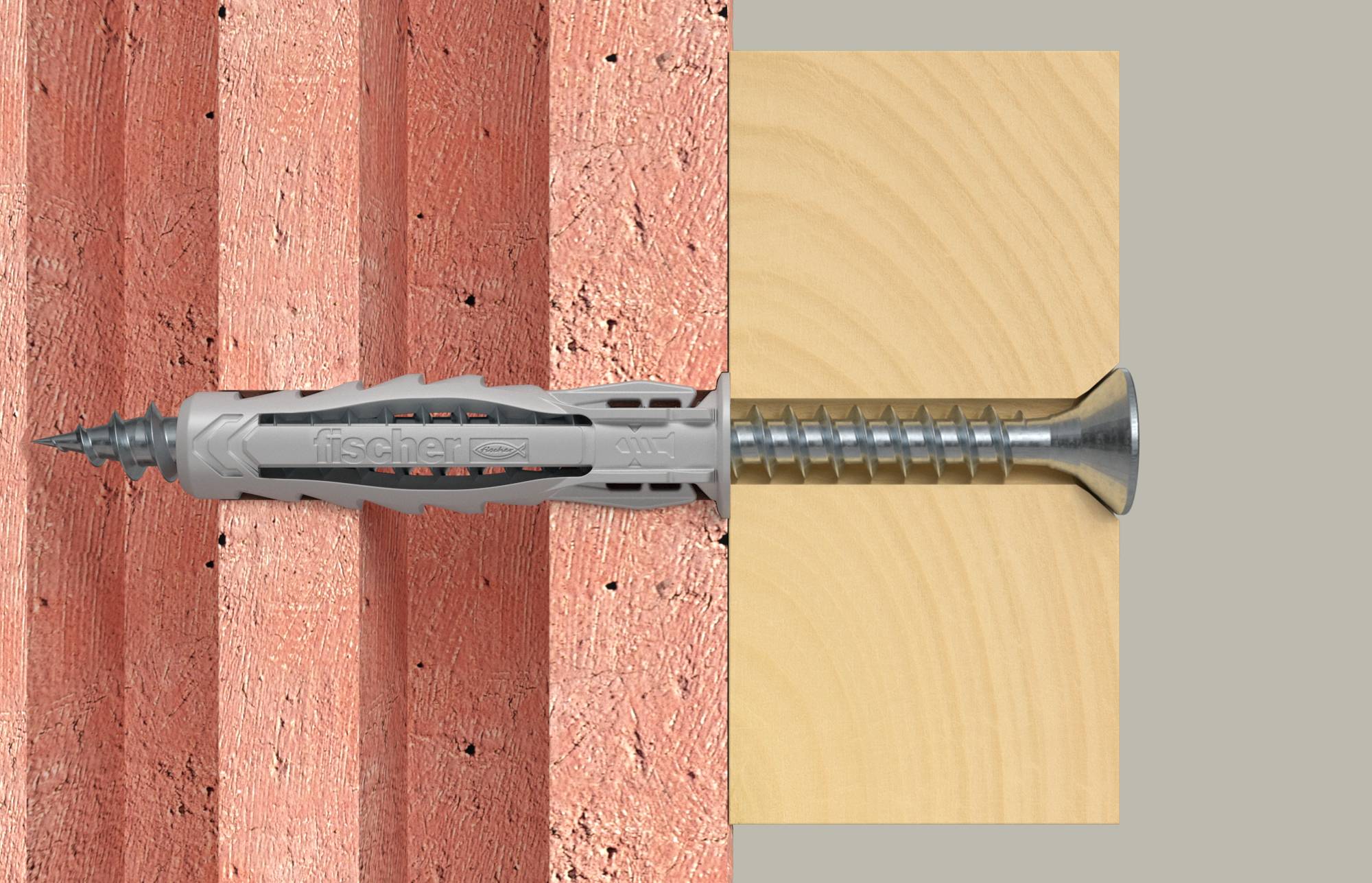

Split view of a wall plug anchor in brick and a screw in wood, showing fastener installation into masonry and wood surfaces.<br>

1/7

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

2 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 20 pc(s))

Set(s)

Total (€ 3.29 / piece)

€ 3.29

incl. VAT

Only 2 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Fischer SX Plus 8 x 40 expanding plug

4-way spread for high withstand valuesFixing wings for screw fixing and flexible mountingIt is possible to mount the plug with little forceDowel border prevents deep sliding into the bore holeA noticeable tightening torque prevents the screw from being overturned.

Technical specifications

Min Drill depth 50 mm

(Ø): 8 mm

Product type: Spring toggle

Length: 40 mm

Dim: (Ø x L) 8 mm x 40 mm

Suitable for: Foamed concrete
Concrete
Flintlime hollow bricks
Natural stone
Foamed concrete wall
Solid brick
Cored bricks

Content: 20 pc(s)

Variants(All information include VAT, plus shipping costs)

Length

Dim

(Ø)

Content

Fischer 567823 SX Plus Spring toggle 40 mm 8 mm 20 pc(s)

Item no:2858415

Fast track dispatch on Wed 4 Nov

2 Set(s)Conrad Electronic

This article

40 mm

(Ø x L) 8 mm x 40 mm

8 mm

20 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3.29^*

Fischer 567821 SX Plus Spring toggle 25 mm 5 mm 50 pc(s)

Item no:2858413

Fast track dispatch on Wed 4 Nov

6 Set(s)Conrad Electronic

25 mm

(Ø x L) 5 mm x 25 mm

5 mm

50 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2.79^*

Fischer 567822 SX Plus Spring toggle 30 mm 6 mm 30 pc(s)

Item no:2858414

Fast track dispatch on Wed 4 Nov

38 Set(s)Conrad Electronic

30 mm

(Ø x L) 6 mm x 30 mm

6 mm

30 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3.29^*

Fischer 567857 SX Plus Spring toggle 65 mm 8 mm 10 pc(s)

Item no:2858502

Fast track dispatch on Wed 4 Nov

5 Set(s)Conrad Electronic

65 mm

(Ø x L) 8 mm x 65 mm

8 mm

10 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2.79^*

Fischer 567820 SX Plus Spring toggle 20 mm 4 mm 50 pc(s)

Item no:2858412

Unavailable

13 Set(s)Conrad Electronic

20 mm

(Ø x L) 4 mm x 20 mm

4 mm

50 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 567824 SX Plus Spring toggle 50 mm 10 mm 10 pc(s)

Item no:2858416

Unavailable

8 Set(s)Conrad Electronic

50 mm

(Ø x L) 10 mm x 50 mm

10 mm

10 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 567825 SX Plus Spring toggle 60 mm 12 mm 6 pc(s)

Item no:2858417

Unavailable

Conrad Electronic

60 mm

(Ø x L) 12 mm x 60 mm

12 mm

6 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 567854 SX Plus Spring toggle 80 mm 10 mm 6 pc(s)

Item no:2858428

Unavailable

Conrad Electronic

80 mm

(Ø x L) 10 mm x 80 mm

10 mm

6 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3.99^*

Fischer 567855 SX Plus Spring toggle 70 mm 14 mm 4 pc(s)

Item no:2858450

Unavailable

12 Set(s)Conrad Electronic

70 mm

(Ø x L) 14 mm x 70 mm

14 mm

4 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 567856 SX Plus Spring toggle 50 mm 6 mm 10 pc(s)

Item no:2858478

Unavailable

3 Set(s)Conrad Electronic

50 mm

(Ø x L) 6 mm x 50 mm

6 mm

10 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2858415 Fischer 567823 SX Plus Spring toggle 40 mm 8 mm 20 pc(s)

Description

The Fischer SX Plus expanding plug is, by its 4-way spread, the specialist for solid building materials such as concrete, limestone and masonry. The special fixing wings provide a pre-fixing of the screw, so that these need not be additionally held in case of overhead applications. This screw fixing enables the user a flexible and comfortable setting procedure. The flexible dowel edge also prevents a low slipping of the dowel in the drill hole for a secure mounting. The high-quality material made of nylon guarantees a permanent safe hold in a variety of solid and perforated building materials.

This text is machine translated.

Features

The 4-way spread provides for optimum force introduction in the building material and guarantees high holding values in full-hole and material
The special fixing wings provide a pre-fixing of the screw, which means that both hands of the user are free during the setting process
The pressure-free dowel neck prevents the spread forces from developing on the surface of the building material when the screw is screwed in. This prevents tiles and plaster from bursting
Due to the special shape of the dowel, it can be easily positioned in the drilled hole with only a few hammer strokes
The pronounced dowel edge prevents the sliding into the drilled hole and allows secure mounting
The noticeable tightening torque allows the user to automatically detect when the screw is properly seated, thus preventing the screw from being overtightened.

Scope of delivery

20 x SX Plus 8 x 40 expanding plugs

Description

Features

The 4-way spread provides for optimum force introduction in the building material and guarantees high holding values in full-hole and material
The special fixing wings provide a pre-fixing of the screw, which means that both hands of the user are free during the setting process
The pressure-free dowel neck prevents the spread forces from developing on the surface of the building material when the screw is screwed in. This prevents tiles and plaster from bursting
Due to the special shape of the dowel, it can be easily positioned in the drilled hole with only a few hammer strokes
The pronounced dowel edge prevents the sliding into the drilled hole and allows secure mounting
The noticeable tightening torque allows the user to automatically detect when the screw is properly seated, thus preventing the screw from being overtightened.
