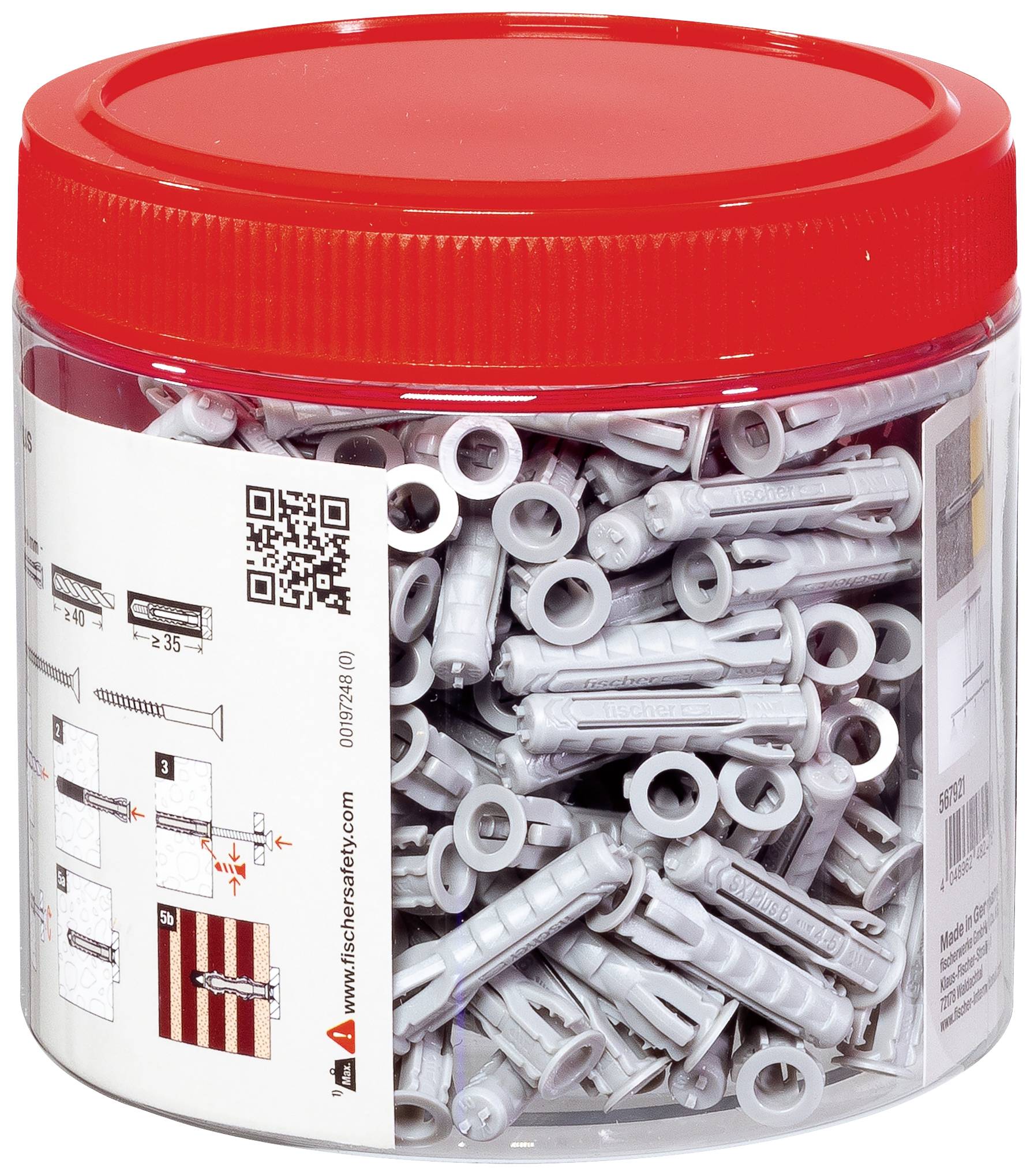

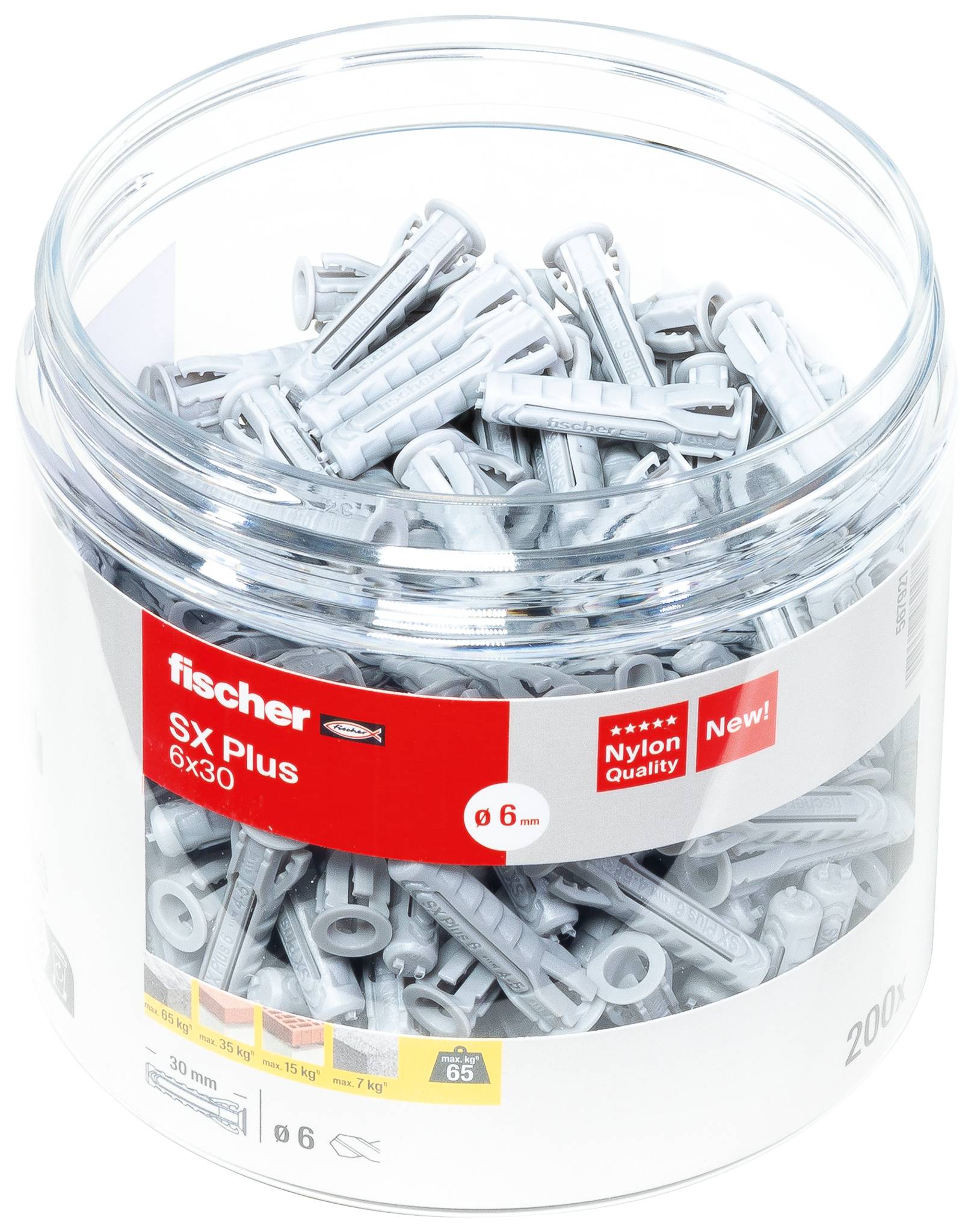

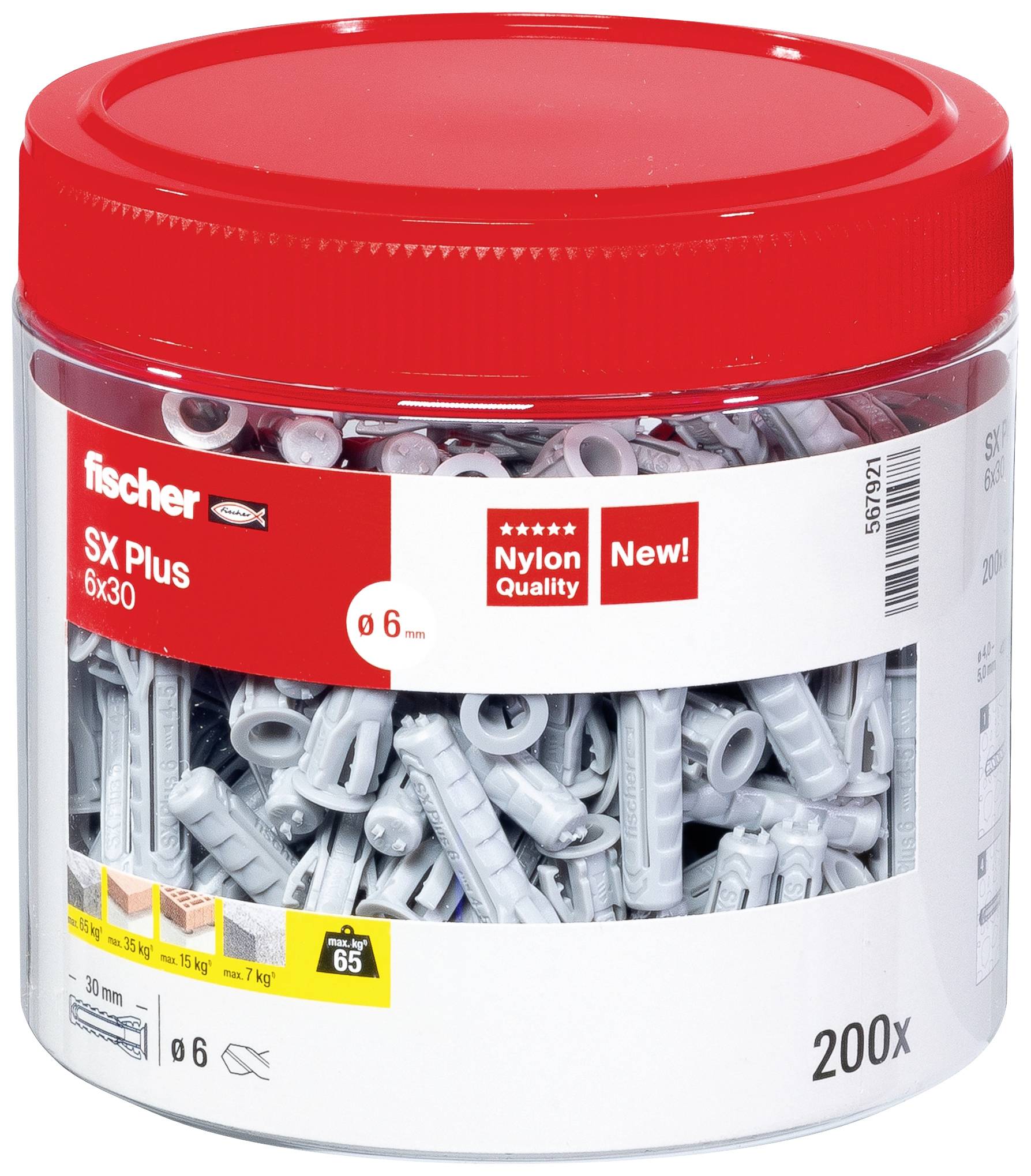

Fischer 567921 SX Plus Spring toggle 30 mm 6 mm 200 pc(s)
EAN:
Part number:
Item no:
Number (Package size 200 pc(s))
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
Highlights & Details
Fischer SX Plus 6 x 30 expanding plug
- 4-way spread for high withstand valuesFixing wings for screw fixing and flexible mountingIt is possible to mount the plug with little forceDowel border prevents deep sliding into the bore holeA noticeable tightening torque prevents the screw from being overturned.
Technical specifications
- Min Drill depth 40 mm
- (Ø)
6 mm
- Product type
Spring toggle
- Length
30 mm
- Dim
(Ø x L) 6 mm x 30 mm
- Suitable for
Foamed concrete
Concrete
Flintlime hollow bricks
Natural stone
Foamed concrete wall
Solid brick
Cored bricks
- Content
200 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2859255 Fischer 567921 SX Plus Spring toggle 30 mm 6 mm 200 pc(s)
Description
The Fischer SX Plus expanding plug is, by its 4-way spread, the specialist for solid building materials such as concrete, limestone and masonry. The special fixing wings provide a pre-fixing of the screw, so that these need not be additionally held in case of overhead applications. This screw fixing enables the user a flexible and comfortable setting procedure. The flexible dowel edge also prevents a low slipping of the dowel in the drill hole for a secure mounting. The high-quality material made of nylon guarantees a permanent safe hold in a variety of solid and perforated building materials.
This text is machine translated.
This text is machine translated.
Features
- The 4-way spread provides for optimum force introduction in the building material and guarantees high holding values in full-hole and material
- The special fixing wings provide a pre-fixing of the screw, which means that both hands of the user are free during the setting process
- The pressure-free dowel neck prevents the spread forces from developing on the surface of the building material when the screw is screwed in. This prevents tiles and plaster from bursting
- Due to the special shape of the dowel, it can be easily positioned in the drilled hole with only a few hammer strokes
- The pronounced dowel edge prevents the sliding into the drilled hole and allows secure mounting
- The noticeable tightening torque allows the user to automatically detect when the screw is properly seated, thus preventing the screw from being overtightened.
