Name: Fischer 567935 SX Plus Spring toggle 30 mm 6 mm 100 pc(s)
Brand: Fischer
SKU: 2859273
Availability: InStock

Red Fischer SX Plus wall anchor box labeled '6x30 S PH TX', showing 100 nylon anchors and screws, for 6 mm holes.<br>

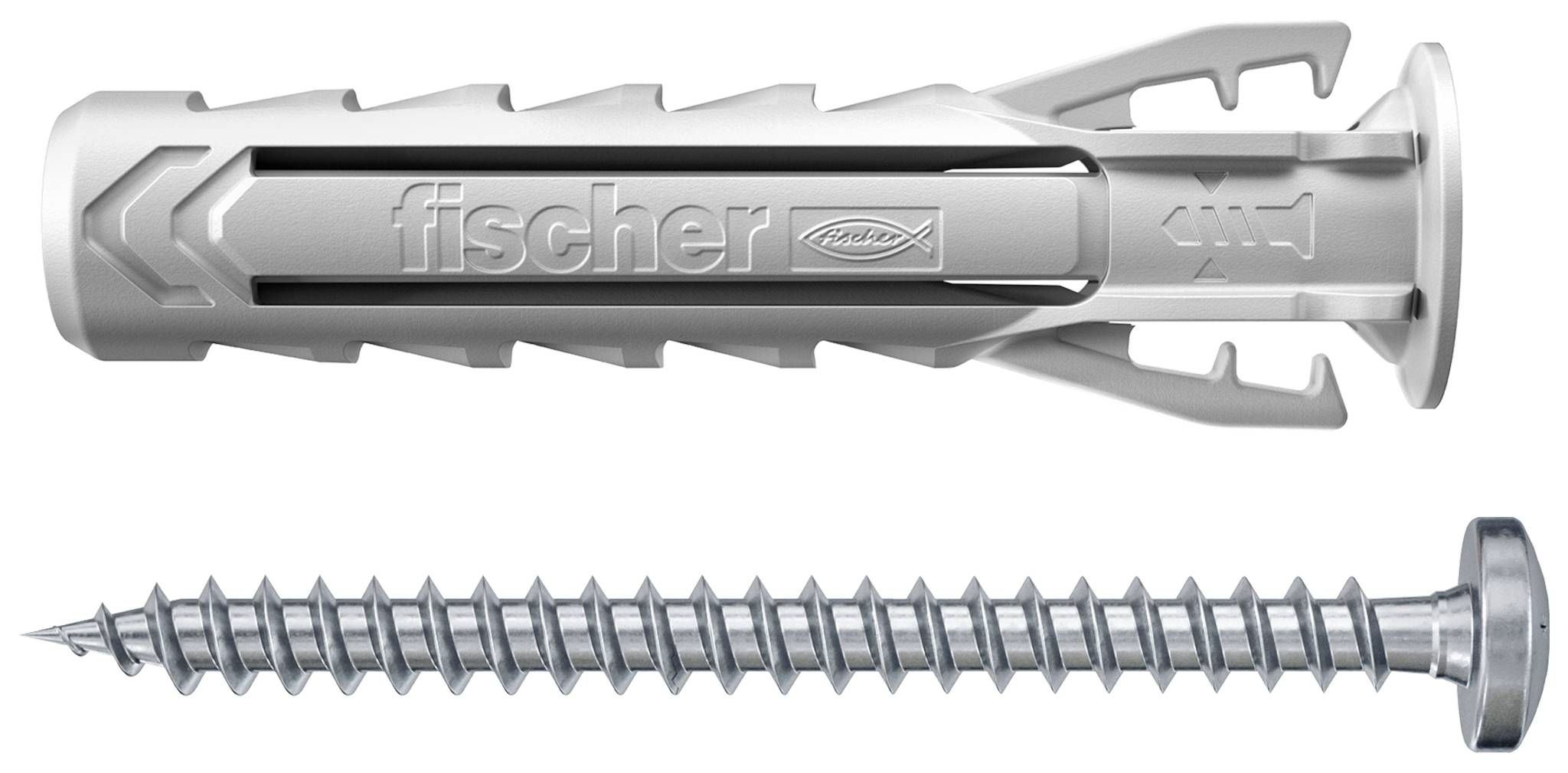

Illustration of a plastic wall anchor and matching screw, showing how the fastener pair is used for mounting into drywall or masonry.

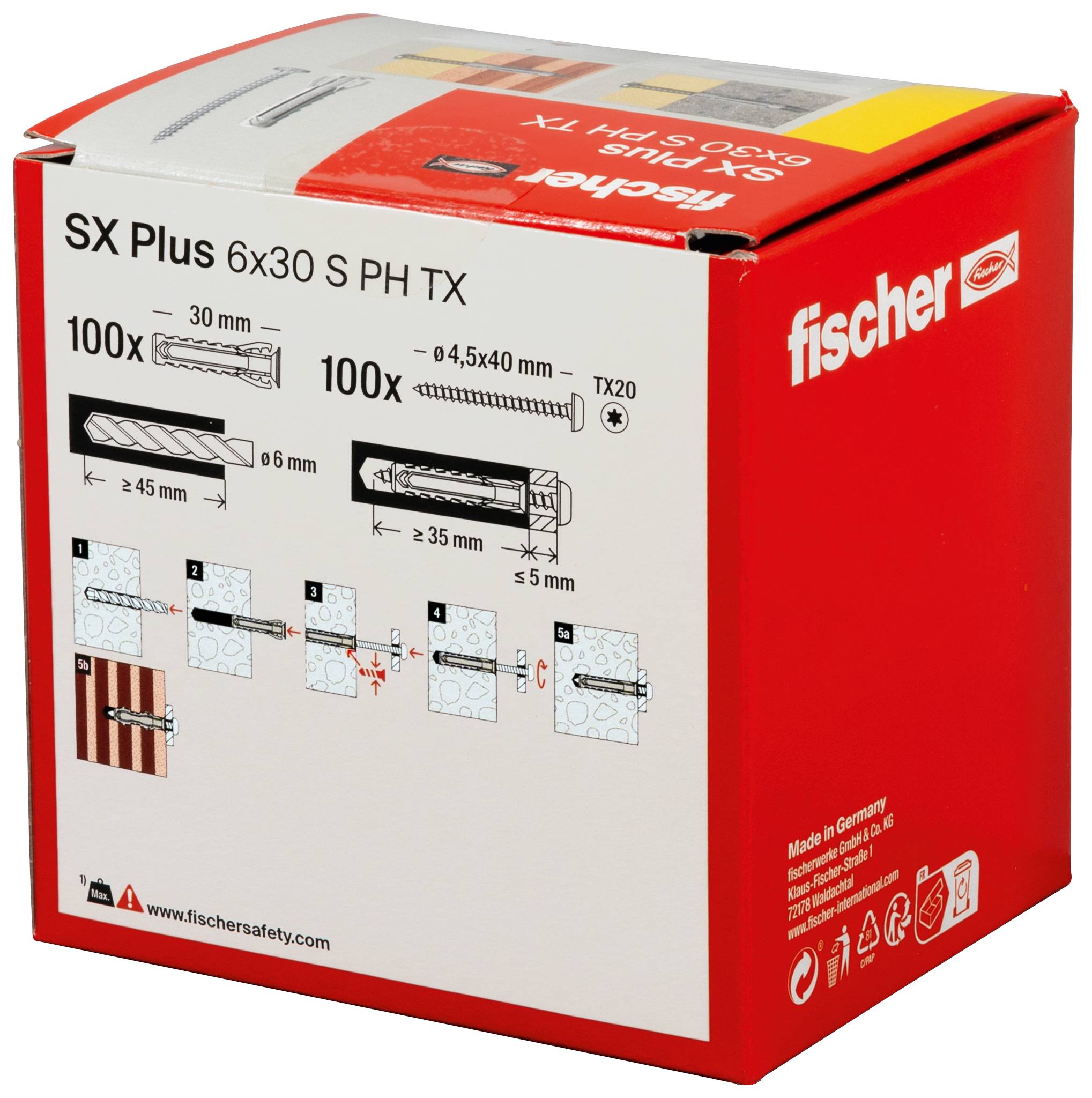

Red Fischer SX Plus wall plug and screw box labeled 'SX Plus 6x30 S PH TX', showing product diagrams and dimensions.

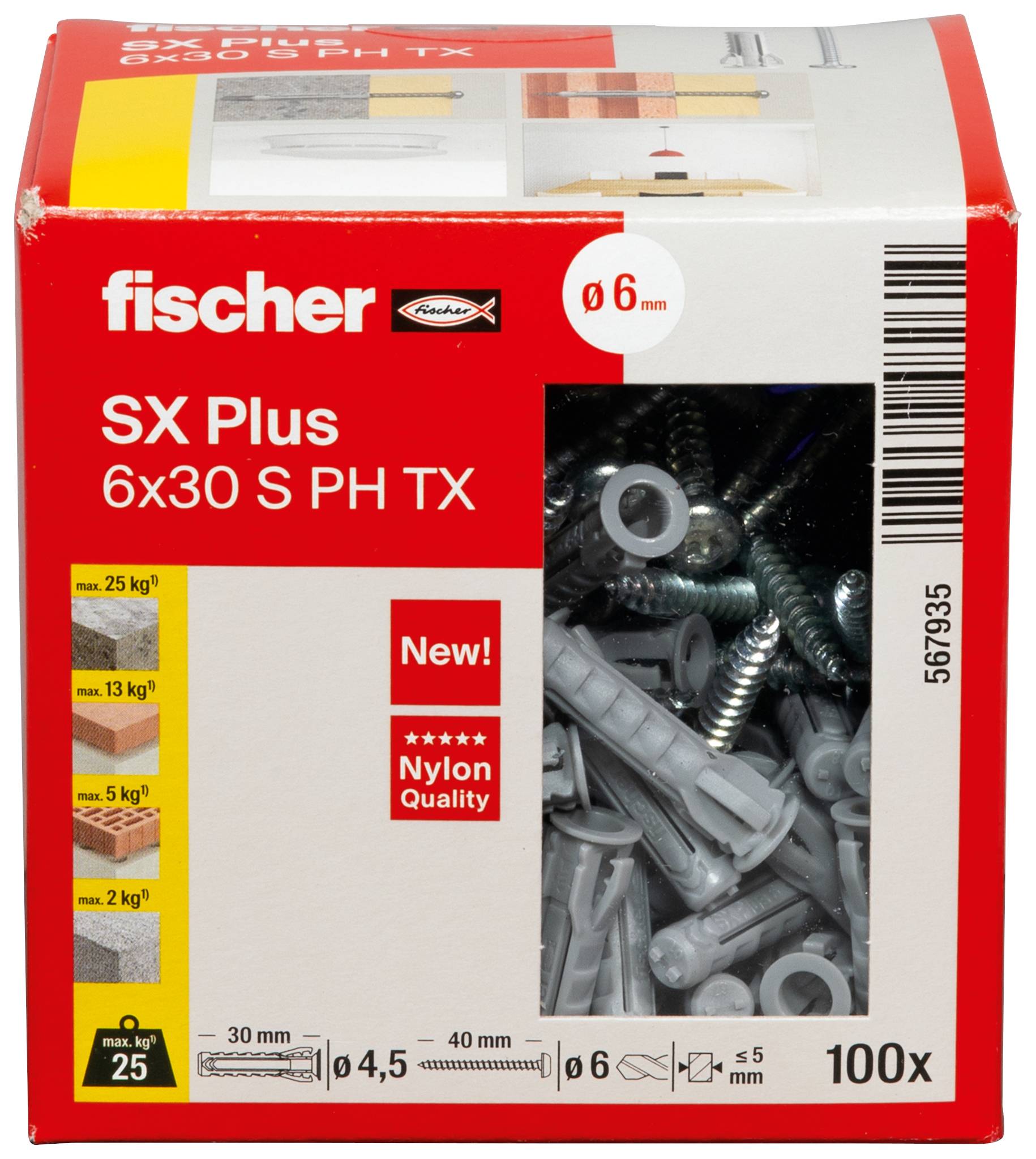

Package of Fischer SX Plus 6x30 PH TX wall plugs, 100-count box with product specifications and screw load ratings.

Two white wall shelves holding rows of ring binders, mostly white and gray with red binders grouped at the left and right.

Flat-screen monitor mounted on an adjustable wall bracket, shown in side view against a light textured wall.

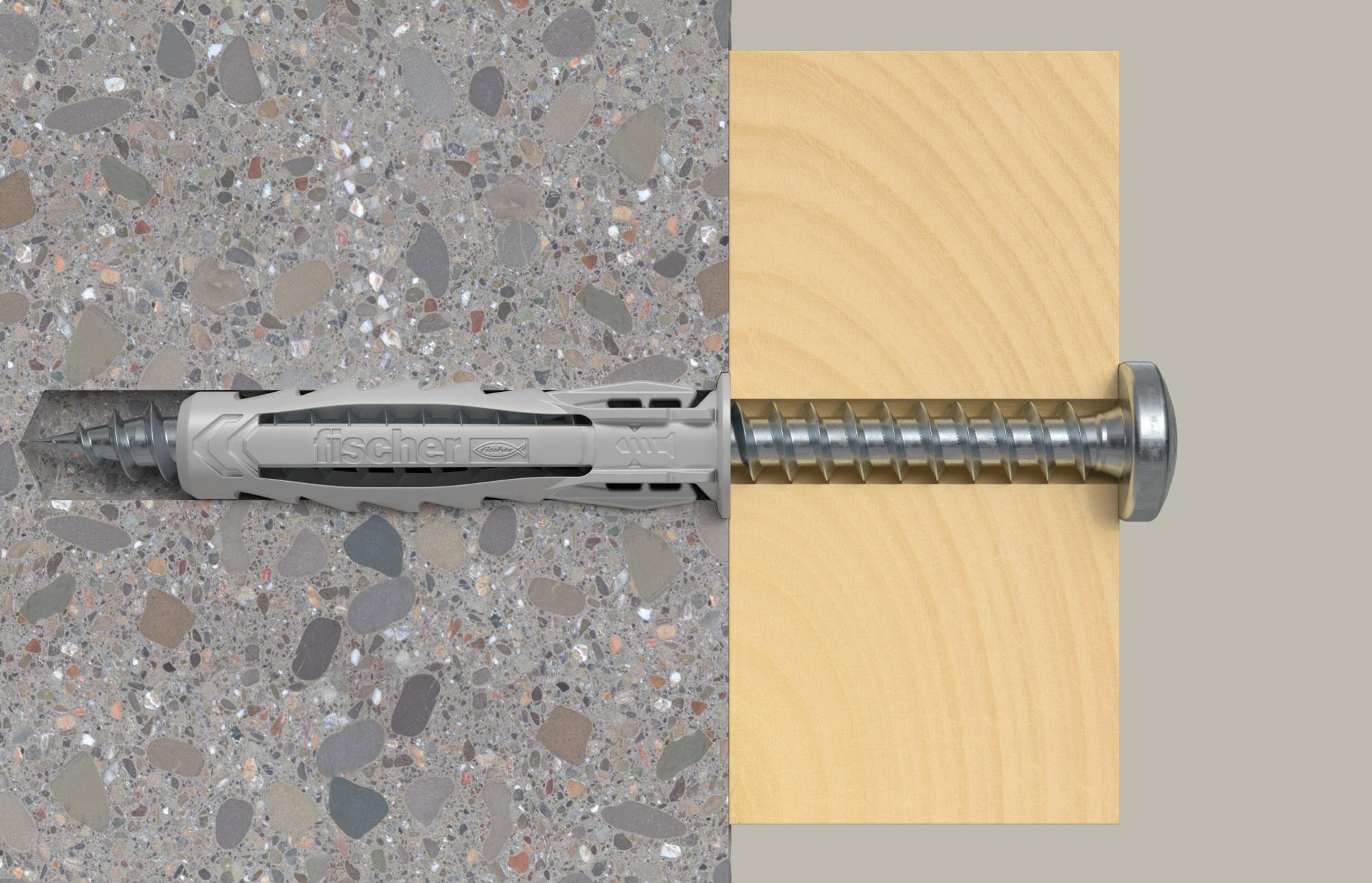

Cross-section diagram of a wall anchor and screw: an anchor expands in concrete on the left, while a screw threads into wood on the right.

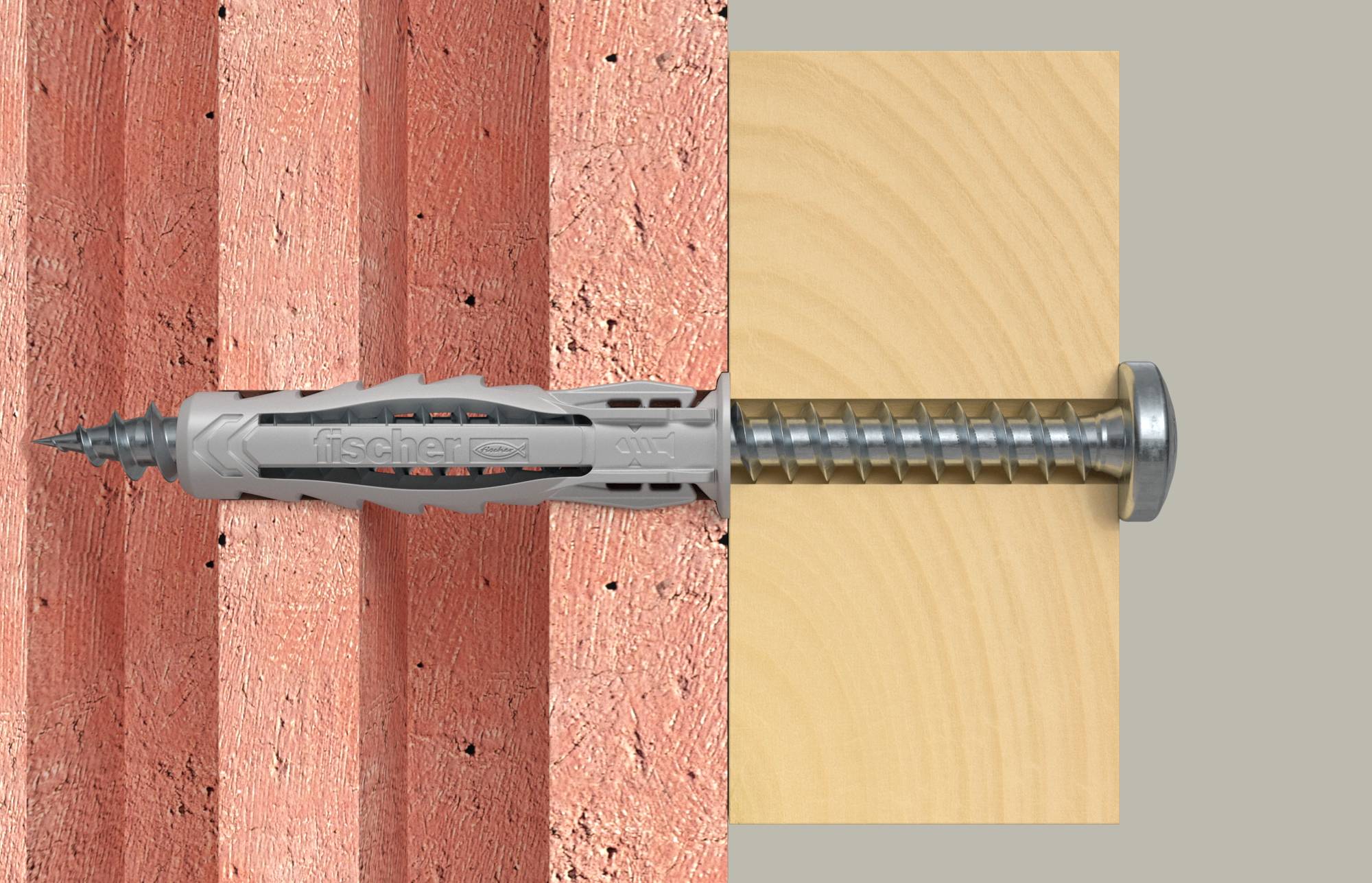

Illustration of a wall anchor and screw securing a wooden board to a masonry wall, showing the fastener embedded in brick and wood.

1/8

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

30 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 100 pc(s))

Set(s)

Total (€ 19.99 / piece)

€ 19.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Fischer SX Plus 6 x 30 PH TX plug with bulkhead screw

4-way spread for high withstand valuesFixing wings for screw fixing and flexible mountingWith suitable screw for maximum supportDowel border prevents deep sliding into the bore holeA noticeable tightening torque prevents the screw from being overturned.

Technical specifications

Min Drill depth 40 mm

(Ø): 6 mm

Product type: Spring toggle

Material: Nylon

Length: 30 mm

Dim: (Ø x L) 6 mm x 30 mm

Suitable for: Foamed concrete
Concrete
Flintlime hollow bricks
Natural stone
Foamed concrete wall
Solid brick
Cored bricks

Content: 100 pc(s)

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2859273 Fischer 567935 SX Plus Spring toggle 30 mm 6 mm 100 pc(s)

Description

The Fischer SX Plus expanding plug is, by its 4-way spread, the specialist for solid building materials such as concrete, limestone and masonry. The special fixing wings provide a pre-fixing of the screw, so that these need not be additionally held in case of overhead applications. This screw fixing enables the user a flexible and comfortable setting procedure. The flexible dowel edge also prevents a low slipping of the dowel in the drill hole for a secure mounting. The screws supplied are perfectly suitable for the Fischer SX Plus expanding plug. The high-quality material made of nylon guarantees a permanent safe hold in a variety of solid and perforated building materials.

This text is machine translated.

Features

The 4-way spread provides for optimum force introduction in the building material and guarantees high holding values in full-hole and material
The special fixing wings provide a pre-fixing of the screw, which means that both hands of the user are free during the setting process
The pressure-free dowel neck prevents the spread forces from developing on the surface of the building material when the screw is screwed in. This prevents tiles and plaster from bursting
Due to the special shape of the dowel, it can be easily positioned in the drilled hole with only a few hammer strokes
The pronounced dowel edge prevents the sliding into the drilled hole and allows secure mounting
The noticeable tightening torque allows the user to automatically detect when the screw is properly seated, thus preventing the screw from being overtightened.

Scope of delivery

100 x SX Plus 6 x 30 expanding plugs100 x Panhead chipboard screws 4.5 x 40
