Buy Fischer 568004 SX Plus Spring toggle 20 mm 4 mm 200 pc(s)

Box of Fischer SX Plus nylon wall anchors, size 4x20, 200 pieces, with load rating and product label visible.

Fast track dispatch on Fri, 18 Sep

40 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number (Package size 200 pc(s))

Set(s)

Total (€ 7.55 / piece)

€ 7.55

plus VAT.

Report legal concerns

Highlights & Details

Fischer SX Plus 4 x 20 expanding plug

4-way spread for high withstand valuesFixing wings for screw fixing and flexible mountingIt is possible to mount the plug with little forceDowel border prevents deep sliding into the bore holeA noticeable tightening torque prevents the screw from being overturned.

Technical specifications

Min Drill depth 25 mm

(Ø): 4 mm

Product type: Spring toggle

Material: Plastic

Length: 20 mm

Dim: (Ø x L) 4 mm x 20 mm

Suitable for: Foamed concrete
Concrete
Flintlime hollow bricks
Natural stone
Foamed concrete wall
Solid brick
Cored bricks

Content: 200 pc(s)

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2859274 Fischer 568004 SX Plus Spring toggle 20 mm 4 mm 200 pc(s)

Description

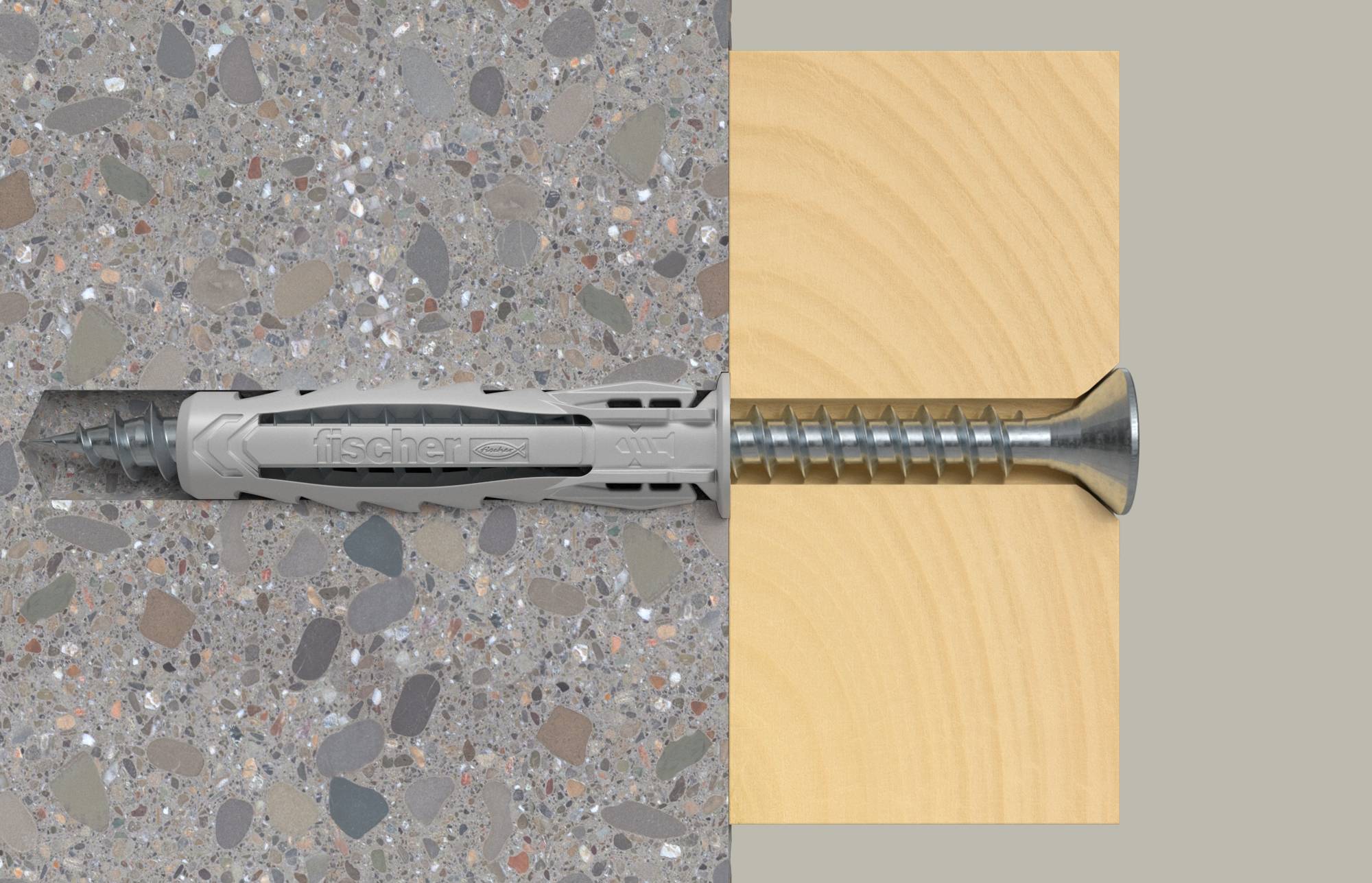

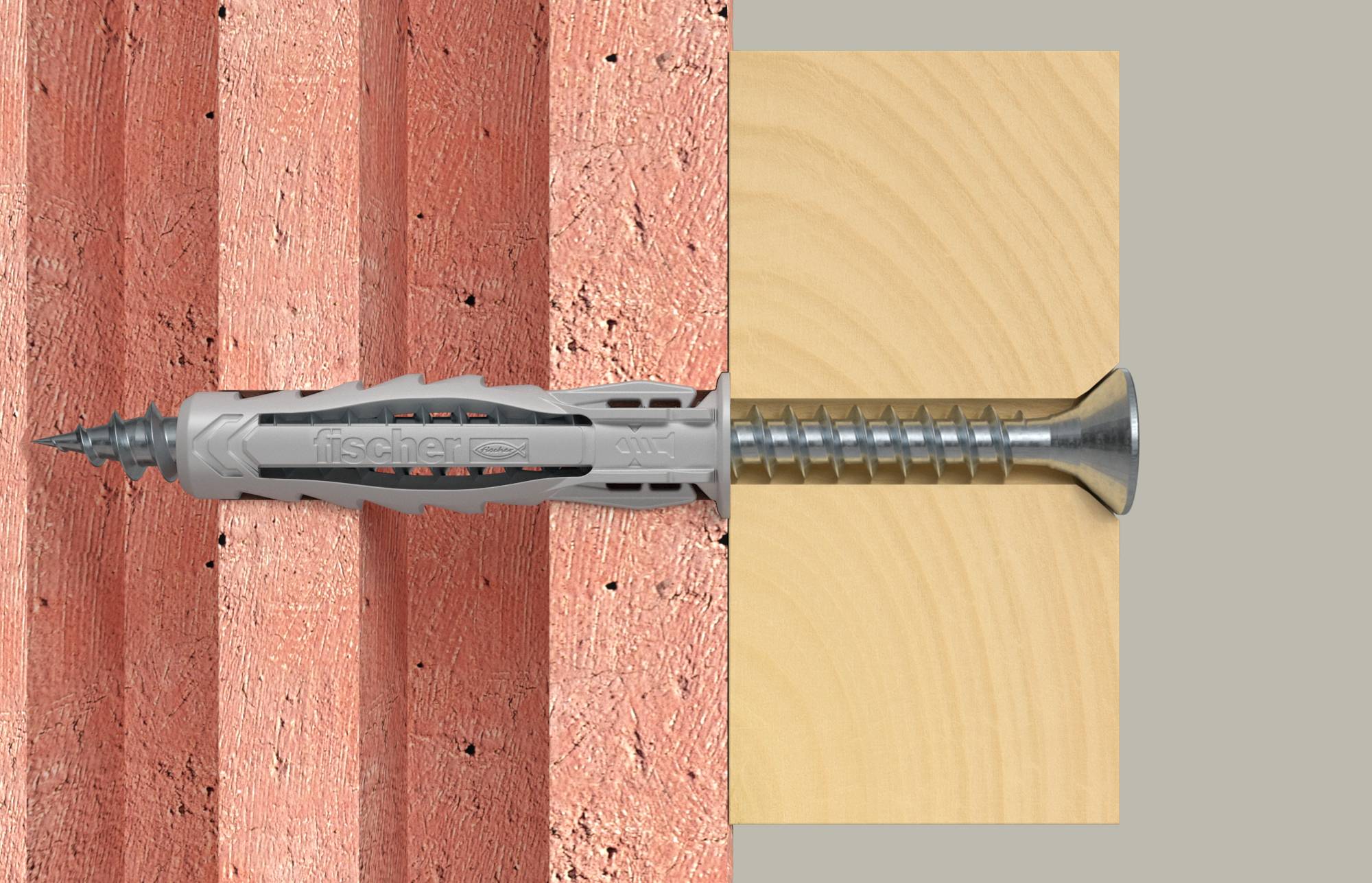

The Fischer SX Plus expanding plug is, by its 4-way spread, the specialist for solid building materials such as concrete, limestone and masonry. The special fixing wings provide a pre-fixing of the screw, so that these need not be additionally held in case of overhead applications. This screw fixing enables the user a flexible and comfortable setting procedure. The flexible dowel edge also prevents a low slipping of the dowel in the drill hole for a secure mounting. The high-quality material made of nylon guarantees a permanent safe hold in a variety of solid and perforated building materials.

This text is machine translated.

Features

The 4-way spread provides for optimum force introduction in the building material and guarantees high holding values in full-hole and material
The special fixing wings provide a pre-fixing of the screw, which means that both hands of the user are free during the setting process
The pressure-free dowel neck prevents the spread forces from developing on the surface of the building material when the screw is screwed in. This prevents tiles and plaster from bursting
Due to the special shape of the dowel, it can be easily positioned in the drilled hole with only a few hammer strokes
The pronounced dowel edge prevents the sliding into the drilled hole and allows secure mounting
The noticeable tightening torque allows the user to automatically detect when the screw is properly seated, thus preventing the screw from being overtightened.
