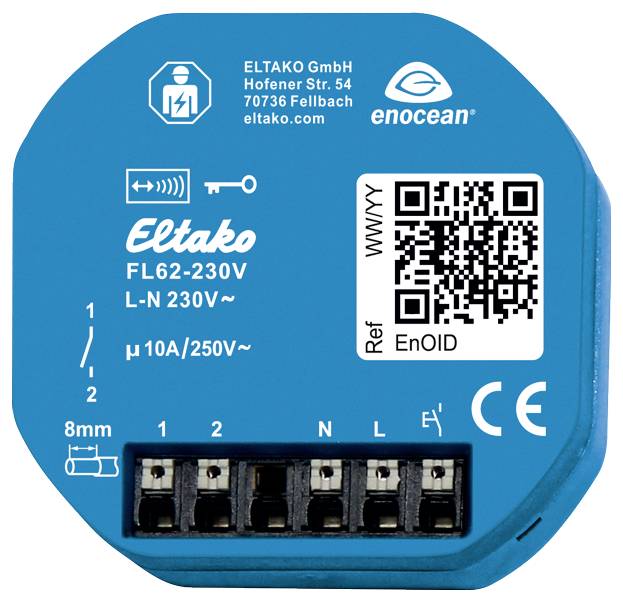

FL62-230V Eltako Wireless Lighting module Flush mount

Radio-light actor 10A/250V AC. Surge switch with 1 closer, potential-free. 230V LED lamps and ESL up to 200W, 230V incandescent and halogen lamps 1000W. Standby loss of only 0.4 watt. For panel mounting. 49x51mm, 20mm deep. The connection terminals are plug-in terminals for conductor cross-sections of 0.2 mm2 up to 2.5mm2. With the comfortable tip technology up to 32 wireless universal switches, wireless direction sensor, wireless central control button and motion sensors can be taught in. Bi-directional radio can be activated. Distance between control connections/contact 6mm. Supply, switching and control voltage locally 230V. If the supply voltage fails, the switch position is maintained. A defined cut-off is performed when the supply voltage is restored. After installation, wait for the automatic short synchronization before connecting the switched load to the mains. In addition to the radio control input via an internal antenna, this radio actuator can also be controlled locally with a conventional 230V control button that may be installed before. A glow lamp current is not permitted.

This text is machine translated.
