Name: Flex PD 2G 18-EC MD DC C 534903 Cordless impact driver 18 V No. of power packs included 0 w/o battery, w/o charger
Brand: Flex
SKU: 3779003
Availability: BackOrder

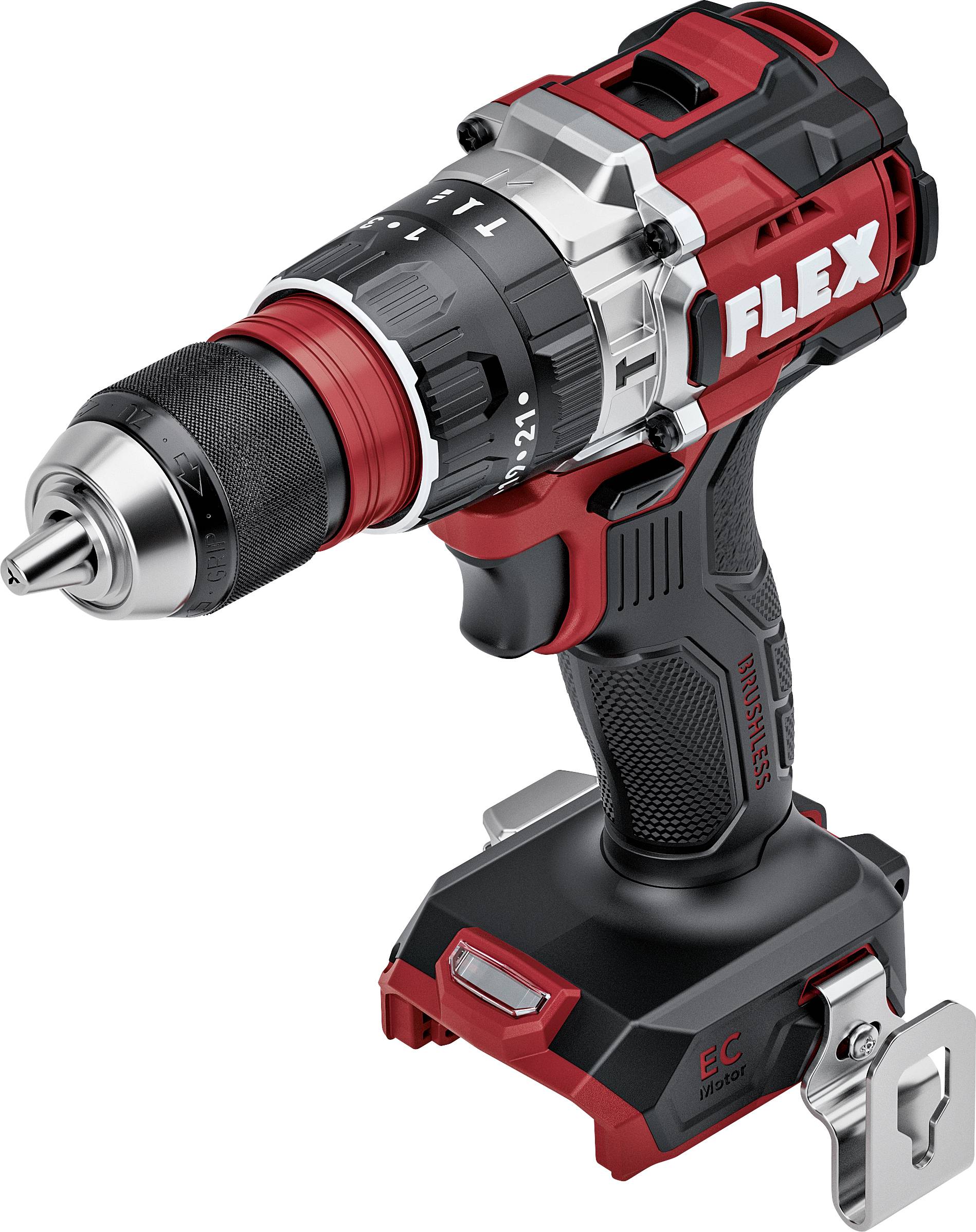

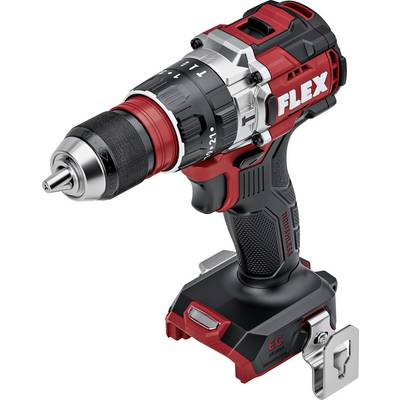

Red and black FLEX cordless drill/driver with battery pack and metal chuck, shown on a white background.

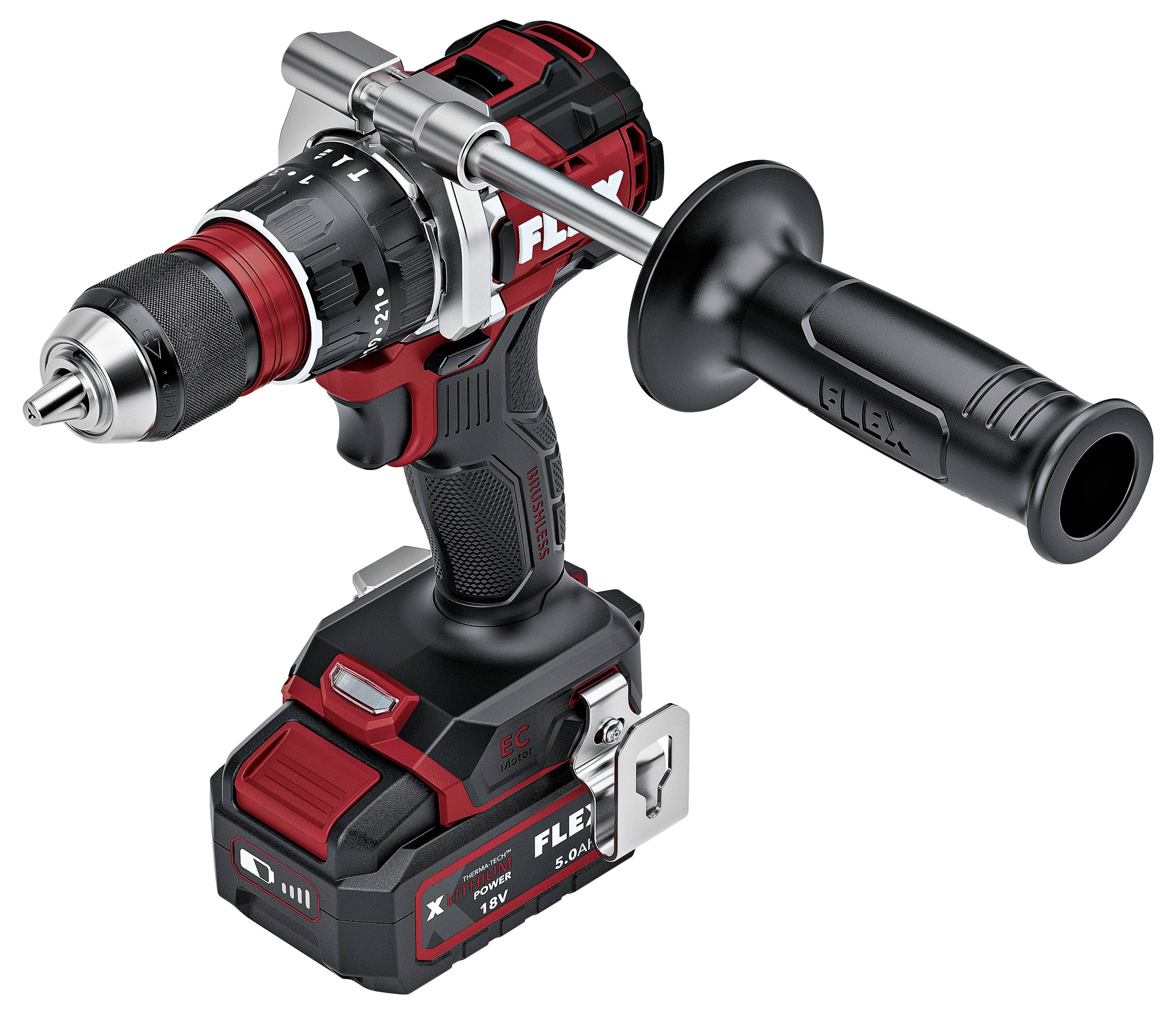

Cordless drill/driver with side handle and battery pack, shown in red and black on a white background.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 3 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 265.00 / piece)

€ 265.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Flex PD 2G 18-EC MD DC C 534903 Cordless impact driver 18 V No. of power packs included 0 w/o battery, w/o charger

18 V/ battery
Torque levels 23

Technical specifications

Battery capacity 2.5/ 5.0/ 8.0 Ah:115 Nm
Max. Torque, soft 60 Nm
Idling speed 1. Gear/speed 0 - 600 1/min.
Idling speed 2. Gear/speed 0 - 2300 1/min.
Idle speed 1. Gear speed 0 - 9600 1/min.
Idle speed 2. Gear speed 0 - 36800 1/min.
Chuck width 1.5-13 mm
Max. Drilling diameter of wood 68 mm
Max. Drilling diameter of stone: 13 mm
Max. Hole diameter steel 13 mm
Torque adjustment 22+1 levels
Sound pressure level 86 dB(A)
Vibration: 11.47 m/s²

Product type: Cordless impact driver

Voltage: 18 V

No. of power packs included: 0

Torque levels: 23

Max. drill diameter: 13 mm

Drill chuck clamping range: 1,5 - 13 mm

Features: w/o battery
w/o charger

Weight: 1.5 kg

Width: 65 mm

Height: 208 mm

Length: 180 mm

Dim: (L x W x H) 180 x 65 x 208 mm

Power supply (LOV): rechargeable

Documents & Downloads

Datasheet

Datasheet 3779003 Flex PD 2G 18-EC MD DC C 534903 Cordless impact driver 18 V No. of power packs included 0 w/o battery, w/o charger

User & Safety Instructions

User & Safety Instructions 3779003 Flex PD 2G 18-EC MD DC C 534903 Cordless impact driver 18 V No. of power packs included 0 w/o battery, w/o charger

Information

Information 3779003 Flex PD 2G 18-EC MD DC C 534903 Cordless impact driver 18 V No. of power packs included 0 w/o battery, w/o charger

Description

Electronic Management System (EMS) protects the machine, extends the service life and increases efficiency, brushless motor with higher efficiency and longer service life, with anti-kickback function which can be switched off, for constant power transmission without unwanted interruption. Useful for applications such as metal working such as tapping, step or core drilling, compact, powerful, safe and very flexible use. The all-rounder for every handyman, accelerator switch with on lock, electronic fast brake, robust aluminum die-cast gearbox housing, right / left-handed with turn-on lock, Drill chuck can be removed without tools, ergonomically designed, slip-proof, rubberized grip, integrated LED light with afterglow function, LED battery capacity indicator, Including mountable additional handle, belt clip and bit garage, Flex battery system: operated with all Flex 18 V battery packs. Battery and charger not included

This text is machine translated.
