Fluke 301D/EUR Clamp meter Digital CAT III 300 V Display (counts): 6000
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 155.45 / piece)
€
Highlights & Details
301D/EUR
- CAT III 300 V
Technical specifications
- Compact pocket size
- Narrow 10 mm pliers
- Hold function
- Backlight
- No True RMS.
- Voltage reading range DC (min.)
0.1 V
- Product type
Clamp meter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
0.1 V
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
0.01 A
- A DC reading range (max.)
600 A
- A AC reading range (min.)
0.01 A
- Amperage reading range AC (max.)
600 A
- Reading range - resistance
600 Ω - 60 kΩ
- Reading range - capacity
9.999 μF - 999.9 μF
- DC resistance
10 MΩ
- Measurement type (details)
Average
- Power supply (details)
3 V
- Height
190 mm
- Width
52 mm
- Length
16 mm
- Weight
154 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 300 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
301D/EUR
- Display
Digital
- Display (counts)
6000
- Dim
(L x W x H) 16 x 52 x 190 mm
IP30
- Opening range of current clamps
34 mm
Documents & Downloads
Datasheet
Datasheet 3521390 Fluke 301D/EUR Clamp meter Digital CAT III 300 V Display (counts): 6000
User & Safety Instructions
User & Safety Instructions 3521390 Fluke 301D/EUR Clamp meter Digital CAT III 300 V Display (counts): 6000
Description

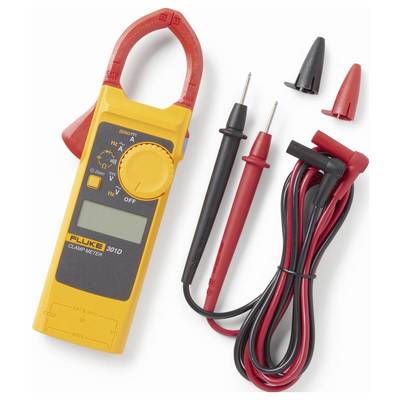

The 301D series DC/AC current clamp meter from Fluke has a light, compact casing. It is designed for mobile use and fits in any pocket. The narrow pliers fit easily into cables adjacent to each other. The 301D measures current, voltage, resistance, continuity, frequency (voltage and current), capacitance and diodes, enabling a variety of test requirements to be met with a single tool. With AC/DC functionality it is Ideal for troubleshooting HVAC systems, residential building modules, lighting and commercial equipment.
This text is machine translated.
This text is machine translated.
Features
- AC and DC voltage measurement
- AC and DC current measurement
- Resistance measurement
- Continuity measurement
- Capacitance testing
- Diode test
- Frequency measurement
- Holding function for display of measured value
Scope of delivery
- Compact AC/DC clamp-on ammeter 301D
- Measuring lead TL75
- Two AAA alkaline batteries
- Quick guide
- Safety information
