Keithley DAQ6510 Bench multimeter Digital
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 2,533.61 / piece)
€
Only 4 Piece(s) available
Technical specifications
- Voltage reading range DC (min.)
0.0001 mV
- Product type
Bench multimeter
- Voltage DC reading range (max.)
1010 V
- V AC reading range (min.)
0.1 µV
- V AC reading range (max.)
750 V
- Amperage reading range DC (min.)
10 pA
- A DC reading range (max.)
10.1 A
- A AC reading range (min.)
100 pA
- Amperage reading range AC (max.)
10.1 A
- Reading range - resistance
1 µOhm - 120 MOhm
- Reading range - capacity
0.1 pF - 120 µF
- Frequency reading range
3 Hz - 300 kHz
- Temperature
-200°C - 1820 °C
- Measurement type (details)
True RMS
- Height
107.2 mm
- Width
224.0 mm
- Length
387.4 mm
- Weight
4.54 kg
Manufacturer's standards (no certificate)
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
DAQ6510
- Display
Digital
- Dim
(L x W x H) 387.4 x 224.0 x 107.2 mm
- Interfaces
Ethernet
USB
Variants(All information is without VAT, plus shipping costs)
Type
Amperage reading range AC (max.)
Voltage DC reading range (max.)
A DC reading range (max.)
Calibrated to
Current reading
Measurement type (details)
Voltage metering
V AC reading range (max.)
DAQ6510
10.1 A
1010 V
10.1 A
Manufacturer's standards (no certificate)
AC/DC
True RMS
AC/DC
750 V
Minimum order quantity: 1
Multiple: 1
€ 2,533.61*
Keithley DMM6500 Bench multimeter Digital
DMM6500
10.1 A
1010 V
10.1 A
Manufacturer's standards (with certificate)
AC/DC
True RMS
AC/DC
750 V
Minimum order quantity: 1
Multiple: 1
€ 1,701.68*
Keithley DAQ6510/7700 Bench multimeter Digital
DAQ6510/7700
10.1 A
1010 V
10.1 A
Manufacturer's standards (no certificate)
AC/DC
True RMS
AC/DC
750 V
Minimum order quantity: 1
Multiple: 1
€ 2,940.34*
Keithley Bench multimeter Calibrated to (ISO standards) Digital
DMM6500-ISO
10.1 A
1010 V
10.1 A
ISO standards
AC/DC
True RMS
AC/DC
750 V
Minimum order quantity: 1
Multiple: 1
Keithley Bench multimeter Calibrated to (DAkkS standards) Digital
DMM6500-DaKKs
10.1 A
1010 V
10.1 A
DAkkS standards
AC/DC
True RMS
AC/DC
750 V
Minimum order quantity: 1
Multiple: 1
Documents & Downloads
Datasheet
Datasheet 1674577 Keithley DAQ6510 Bench multimeter Digital
User & Safety Instructions
User & Safety Instructions 1674577 Keithley DAQ6510 Bench multimeter Digital
Information
Information 1674577 Keithley DAQ6510 Bench multimeter Digital
Conformity certificate
Conformity certificate 1674577 Keithley DAQ6510 Bench multimeter Digital
Description

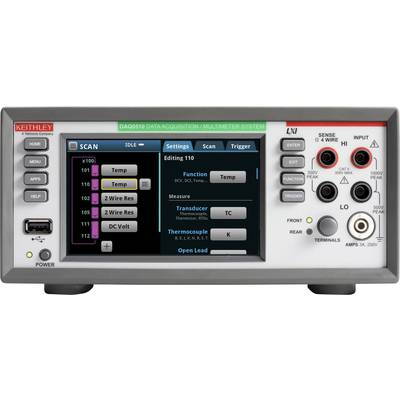

The DAQ6510 is a precise data acquisition and logging system with a new level of simplicity compared to the often complicated configurations and controls of many stand-alone solutions.
This text is machine translated.
This text is machine translated.
Features
- Large 5-inch (12.7 cm) multi-touch capacitive touch-screen with graphical display
- 6½-digit multimeter with 0.0025% DCV (1 V, 10 V Ranges) basic accuracy
- Standard LAN/LXI and USB-TMC communication interfaces
- Optional Interfaces: GPIB, RS-232 and TSP-Link ® technology
- Connection of up to 80 specimens in a test setup
- Up to 80 2-pole channels for thermocouples, RTD or thermistor temperature measurements
- Scanning speeds of up to 800 channels/second with the semiconductor relay module
- Front panel jacks for stand-alone DMM operation
- KickStart coding free device control software with data recording and Logging Application
Scope of delivery
- Universal test lead set (1000 V CAT II)
- USB cable
- Calibration certificate
