Rigol DM3058E Bench multimeter Digital CAT II 300 V Display (counts): 200000
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 452.94 / piece)
€
Only 2 Piece(s) available
Highlights & Details
DM3058E
- CAT II 300 V
Technical specifications
- Volatile Memory: 2000
- Non-volatile memory: 40 groups for different functions
- Voltage reading range DC (min.)
1 µV
- Product type
Bench multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
1 µV
- V AC reading range (max.)
750 V
- Amperage reading range DC (min.)
1 nA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
100 nA
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
1 mΩ - 100 MΩ
- Reading range - capacity
1 pF - 10,000 µF
- Frequency reading range
20 Hz - 1 MHz
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
0.015 %
- Measurement type (details)
True RMS
- Frequency range
20 Hz -100 kHz Hz
- Interfaces
1x USB 2.0
1x RS 232
- Power supply (details)
115 - 230 V/AC
- Height
107 mm
- Width
232 mm
- Weight
2.5 kg
Manufacturer's standards (no certificate)
- Reading category
CAT II 300 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
DM3058E
- Display
Digital
- Display (counts)
200000
- Dim
(W x H) 232 mm x 107 mm
Documents & Downloads
Datasheet
Datasheet 409755 Rigol DM3058E Bench multimeter Digital CAT II 300 V Display (counts): 200000
User & Safety Instructions
User & Safety Instructions 409755 Rigol DM3058E Bench multimeter Digital CAT II 300 V Display (counts): 200000
User & Safety Instructions 409755 Rigol DM3058E Bench multimeter Digital CAT II 300 V Display (counts): 200000
Warranty Terms
Warranty Terms 409755 Rigol DM3058E Bench multimeter Digital CAT II 300 V Display (counts): 200000
Description
The Digital Table Multimeter DM 3058 E has a standard measurement ranges such as voltage (AC/DC), current (AC/DC), resistance, capacitance, diode test and frequency measurement. Through the large multi-display with 5.5 points, all parameters are displayed clearly. The control of the device can be connected by USB and RS232.
This text is machine translated.
This text is machine translated.
Features
- Sensor management for free configuration of own sensors (DC/V, DC/A, Freq, 2-conductor, 4-conductor and TC)
- Mathematical functions such as Pass/Fail, Limit Test, Standard Deviation, Histogram, Relative measurement, Zero, Max/Min/AVG, dBm, dB.
Scope of delivery
- 2 safety test leads (red/black) · 2x alligator clip · USB cable · Power cord · Quick guide.
- This text is machine translated.
Hints
Software and the detailed user manual can be downloaded free of charge on the manufacturer side.
Frequently Bought Together
(*All information is plus legal VAT) This article
Rigol DM3058E Bench multimeter Digital CAT II 300 V Display (counts): 200000
Conrad Electronic
€ 452.94*

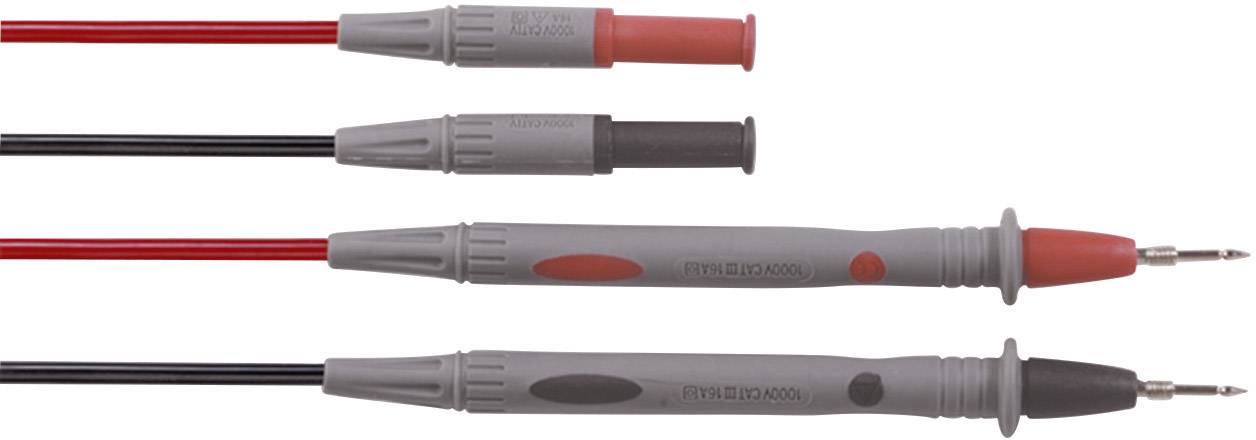

Rigol LEAD-DMM Safety test lead et Banana jack 4 mm Test probe 1.20 m Black, Red 1 pc(s)
