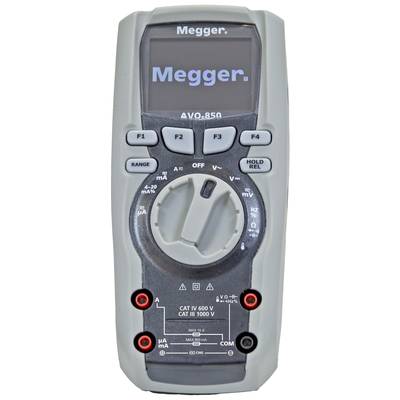

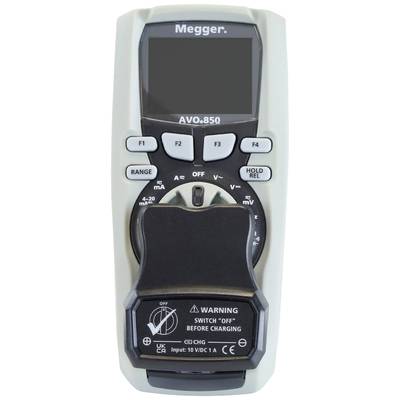

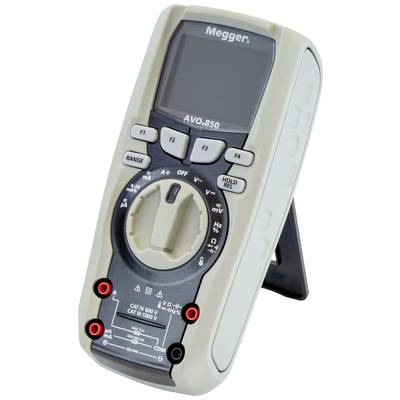

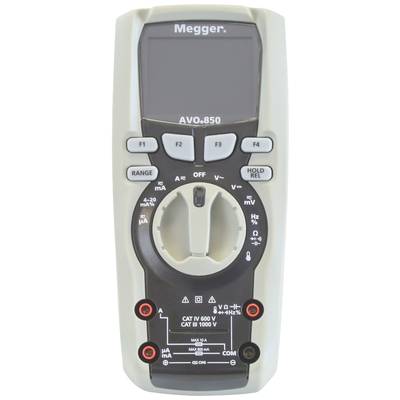

Megger AVO850 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 50000
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 587.39 / piece)
€
Technical specifications
- Display 320 x 240 TFT color LCD screen
- Protection class: IP40
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (max.)
1000 V
- A DC reading range (max.)
10 A
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
500 Ω - 40 MΩ
- Reading range - capacity
0 to 10 mF
- Frequency reading range
50 Hz to 10 MHz
- Measurement type (details)
True RMS
- Interfaces
Bluetooth®
- Height
170 mm
- Width
50 mm
- Length
79 mm
- Weight
376 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
AVO850
- Display
Digital
- Display (counts)
50000
- Dim
(L x W x H) 79 x 50 x 170 mm
Documents & Downloads
Datasheet
Datasheet 3158052 Megger AVO850 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 50000
Description
The AVO850 is a professional real effective digital multimeter with TFT LCD color display (50,000 dpi). It offers a convenient bar graph, recording function and Bluetooth functions. This highly precise multimeter was developed for precision and comfort and can be operated with rechargeable batteries. The meter complies with the categories CAT III and CAT IV according to IEC 61010-1. The safety standard IEC 61010-1 defines four measurement categories (CAT I to IV) depending on the extent of the danger from transient pulses. The real effective multimeter AVO850 was developed for electronics, electricians, technicians, engineers and maintenance personnel. Bluetooth connectivity and app support for Android or iOS devices enable real-time results sharing. Use the Smart app to track readings from a safe distance or to store them for future reference.
This text is machine translated.
This text is machine translated.

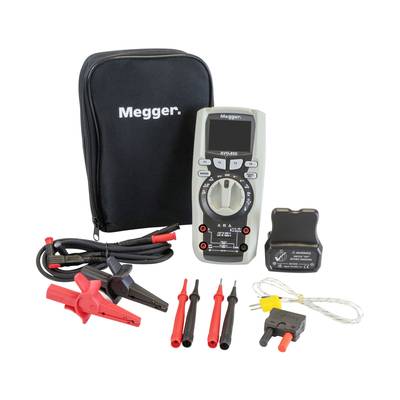

Scope of delivery
- AVO850 Multimeter
- Test leads, 1 m, 4 mm, not secured, right angled (2 pcs.)
- Probes, 4 mm, with exposed metal (2 pcs.)
- Exposed test probes for CAT II measurements (2 pc)
- Red and black alligator clips
- Type K multimeter adapter
- K-type thermocouple
- Padded case
- Cap 4 mm (2 pcs.)
- Lithium-ion rechargeable battery
- Universal mains charger
