Name: FPMA-D935DG
Brand: Neomounts
SKU: 1295543
Price: 169.99 EUR
Availability: SoldOut

Two side-by-side monitor mounting brackets on a swing arm, mounted on a desk, without monitors.

Double monitor arm in silver metal, mounted on a stand, with two VESA mounts for attaching monitors.

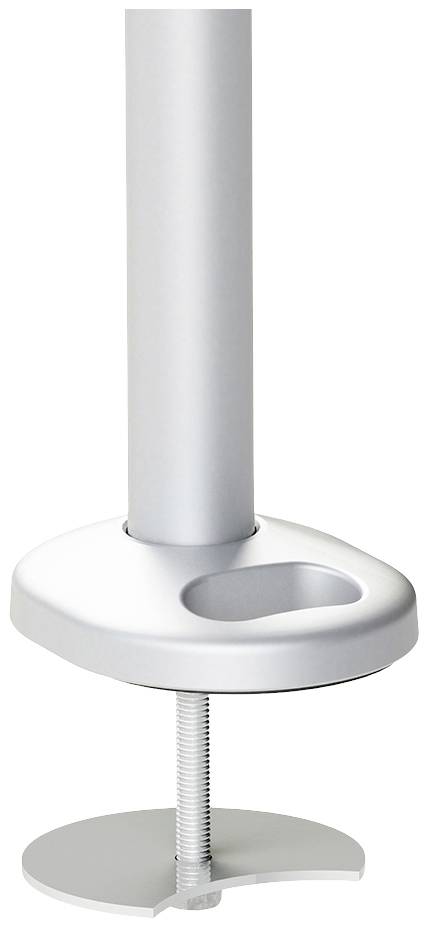

A silver table-mounting arm that can be attached to a table, with a clamp at the end for secure fastening.

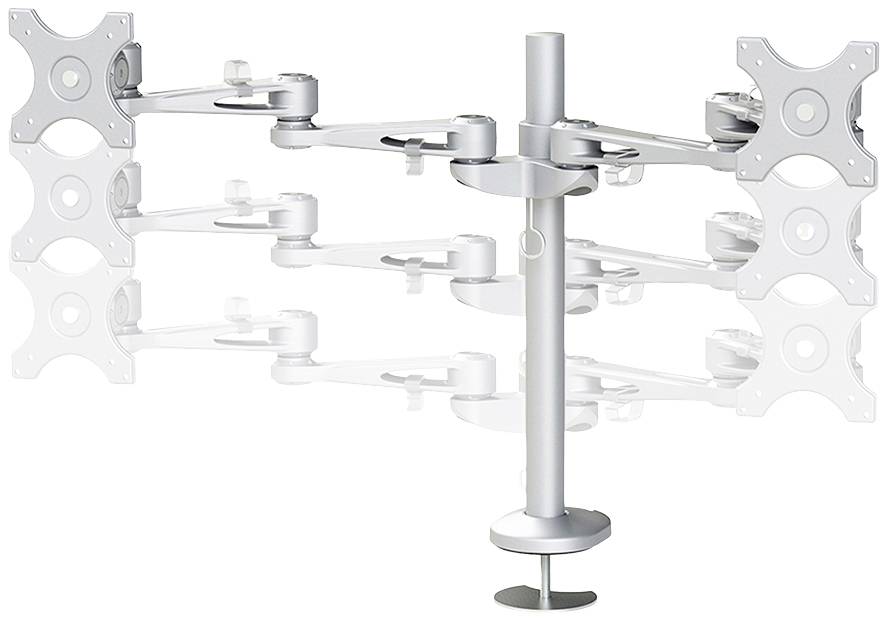

Multi-screen metal monitor mount with adjustable arms, suitable for attaching multiple displays to a desk.

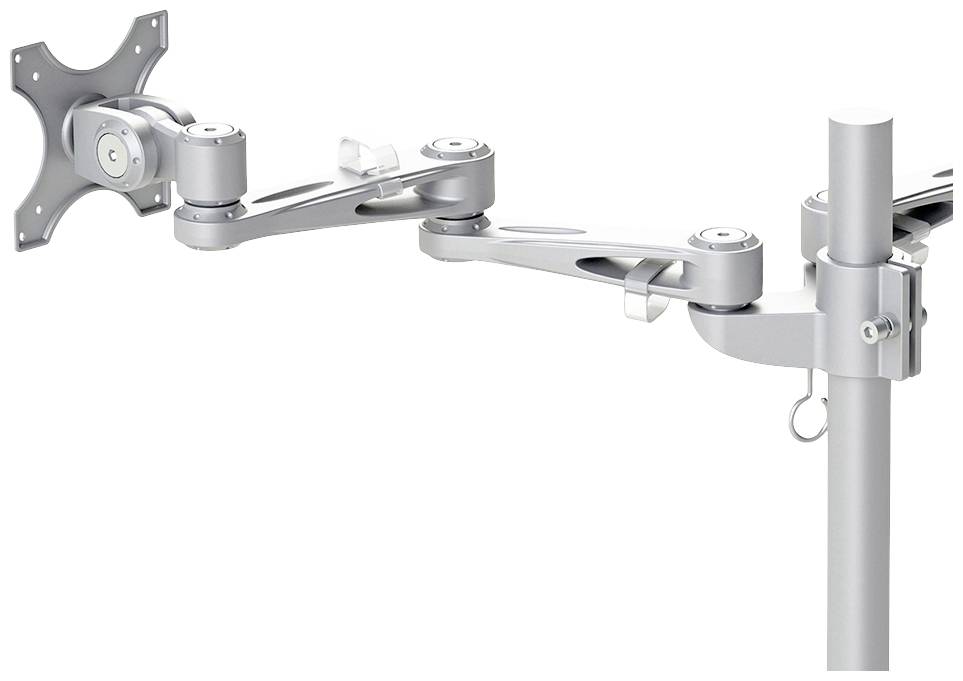

Stable metal monitor mount with adjustable arms attached to a vertical pole, enabling flexible screen positioning.

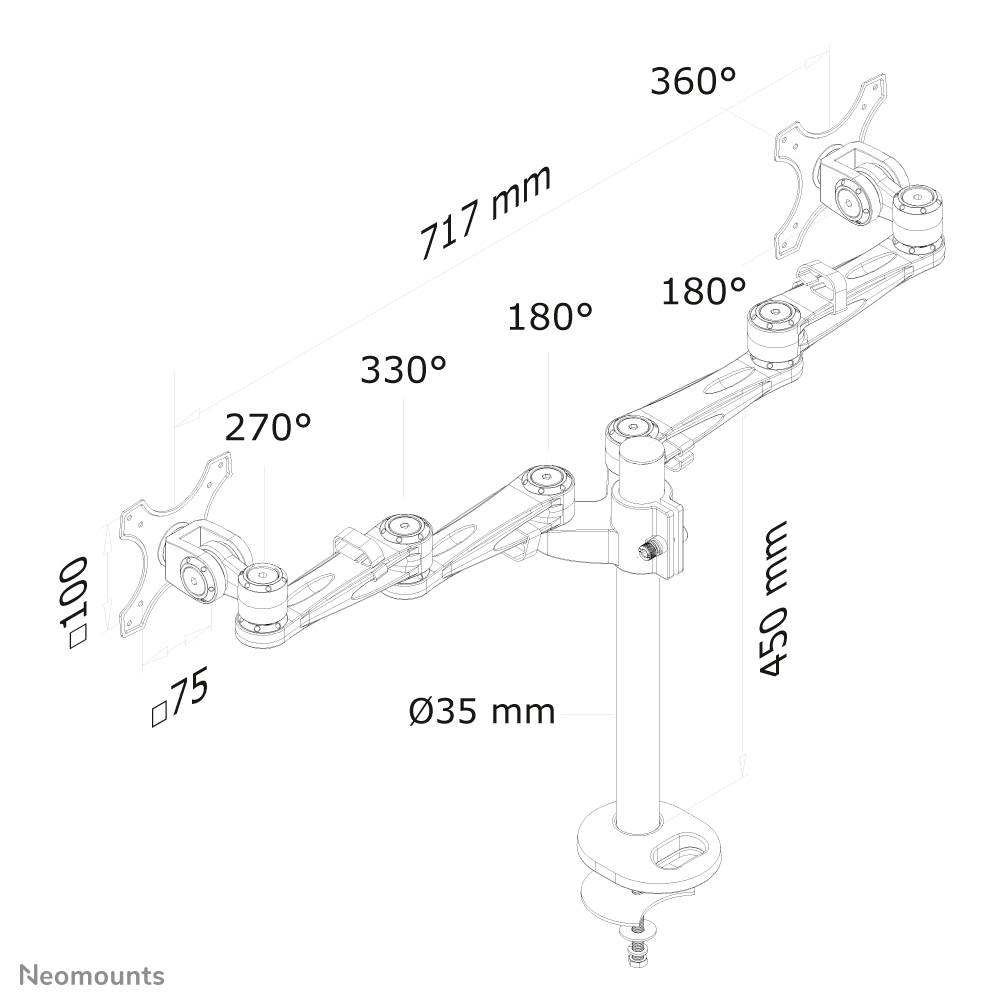

Two monitor holders with adjustable arms, total length 717 mm, vertical height 450 mm, rotatable 360 degrees, tiltable 180 degrees.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 169.99 / piece)

€ 169.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

FPMA-D935DG

Holder type: Tiltable, Swivelling, SwivellingSupports VESA standards up toSuitable for displays sized (range): 25,4 cm (10") - 68,6 cm (27")Load capacity (max.) 12 kg

Technical specifications

Colour of product: Silver
Cord management: Y
Height adjustment: Y
Tilt angle: 0 - 180°
Swivel angle: 300°
Rotation: 360°
Maximum screen size compatibility: "66.04 cm (26"")"
VESA mounting interfaces compatibility: 75 x 75, 100 x 100 mm
Number of displays supported: 2
Minimum screen size compatibility: "25.4 cm (10"")"
Maximum weight (capacity): 12 kg
Depth: 50 cm

Product type: Monitor desk mount

Suitable for: 25,4 cm (10") - 68,6 cm (27")

Add-on displays: 2 Display(s)

Holder type: Tiltable
Swivelling
Swivelling

: No

Max. load capacity: 12 kg

: No

: 100 x 100 mm
75 x 75 mm

Rotation: 360°

Tilt range (bottom): -90°

Tilt range (top): +90°

Swivel range (left): 150°

Swivel range (right): 150°

Width: 31 cm

Height: 56 cm

Depth: 15 cm

Factory colour: Silver

Weight: 6.1 kg

Dim: (W x H x D) 31 x 56 x 15 cm

Suitable for: 25,4 cm (10")
25,7 cm (10,1")
26,7 cm (10,5")
27,9 cm (11")
29,5 cm (11,6")
30,5 cm (12")
30,7 cm (12,1")
31,0 cm (12,2")
31,8 cm (12,5")
32,8 cm (12,9")
33,0 cm (13")
33,8 cm (13,3")
35,6 cm (14")
38,1 cm (15")
39,6 cm (15,6")
40,6 cm (16")
43,2 cm (17")
45,7 cm (18")
48,3 cm (19")
50,8 cm (20")
54,6 cm (21,5")
55,9 cm (22")
58,4 cm (23")
59,9 cm (23,6")
61 cm (24")
63,5 cm (25")
66,0 cm (26")
68,6 cm (27")
Show more

Product type description: Zubehör TFT/LCD-TV

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1295543 FPMA-D935DG

User & Safety Instructions

User & Safety Instructions 1295543 FPMA-D935DG

Warranty Terms

Warranty Terms 1295543 FPMA-D935DG

Description

The NewStar desk mount, model FPMA-D935DG is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 26”. This mount is a great choice for space saving placement on desks using a grommet mount. NewStars’ unique tilt (180°), rotate (360°) and swivel (300°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 50 centimetres. Depth adjustable from 12 to 50 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. NewStar FPMA-D935DG has three pivot points and is suitable for screens up to 26" (65 cm). The weight capacity of this product is 6 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using NewStar VESA adapter plates. By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area. All installation material is included with the product.
