1/6
FPMA-D960DG
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 121.84 / piece)
€ 121.84
plus VAT.
14-day return policy included
FPMA-D960DG
Highlights & Details
- Holder type: Height-adjustable, Tiltable, Swivelling, Swivelling, RetractableSupports VESA standards up toSuitable for displays sized (range): 25,4 cm (10") - 68,6 cm (27")Load capacity (max.) 16 kg
Technical specifications
- Colour of product: Black
- Swivel angle: 180°
- Height adjustment range: 0 - 450 mm
- Rotation: 360°
- Maximum screen size compatibility: "66.04 cm (26"")"
- Number of displays supported: 2
- VESA mounting interfaces compatibility: 75 x 75, 100 x 100 mm
- Minimum screen size compatibility: "25.4 cm (10"")"
- Maximum weight (capacity): 20 kg
- Screen size compatibility: "254 - 660.4 mm (10 - 26"")"
- Mounting hole pattern (WxD): 100 x 100 mm
- Product type
Monitor desk mount
- Suitable for
25,4 cm (10") - 68,6 cm (27")
- Add-on displays
2 Display(s)
- Holder type
Height-adjustable
Tiltable
Swivelling
Swivelling
Retractable
No
- Max. load capacity
16 kg
No
100 x 100 mm
75 x 75 mm
- Rotation
360°
- Max. table thickness
45 mm
- Tilt range (bottom)
-90°
- Tilt range (top)
+90°
- Min. distance to floor/ceiling
0 cm
- Max. distance to floor/ceiling
45 cm
- Swivel range (left)
90°
- Swivel range (right)
90°
- Distance to wall (min.)
10 cm
- Distance to wall (max.)
43 cm
- Width
28 cm
- Height
58 cm
- Depth
16 cm
- Factory colour
Black
- Weight
6.5 kg
- Dim
(W x H x D) 28 x 58 x 16 cm
- Suitable for
25,4 cm (10")
25,7 cm (10,1")
26,7 cm (10,5")
27,9 cm (11")
29,5 cm (11,6")
30,5 cm (12")
30,7 cm (12,1")
31,0 cm (12,2")
31,8 cm (12,5")
32,8 cm (12,9")
Show more
- Product type description
Zubehör TFT/LCD-TV
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1300740 FPMA-D960DG
User & Safety Instructions
User & Safety Instructions 1300740 FPMA-D960DG
Warranty Terms
Warranty Terms 1300740 FPMA-D960DG
Description

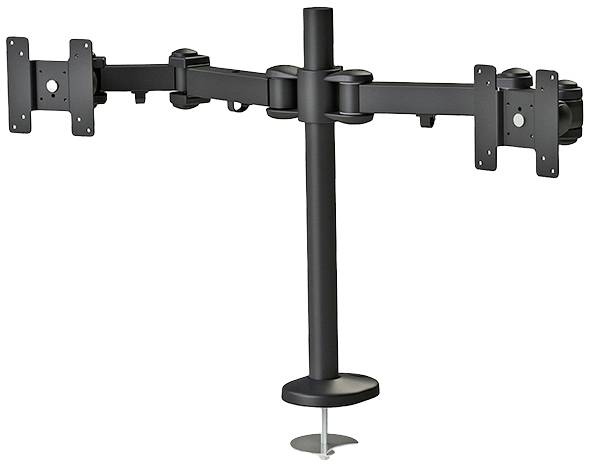

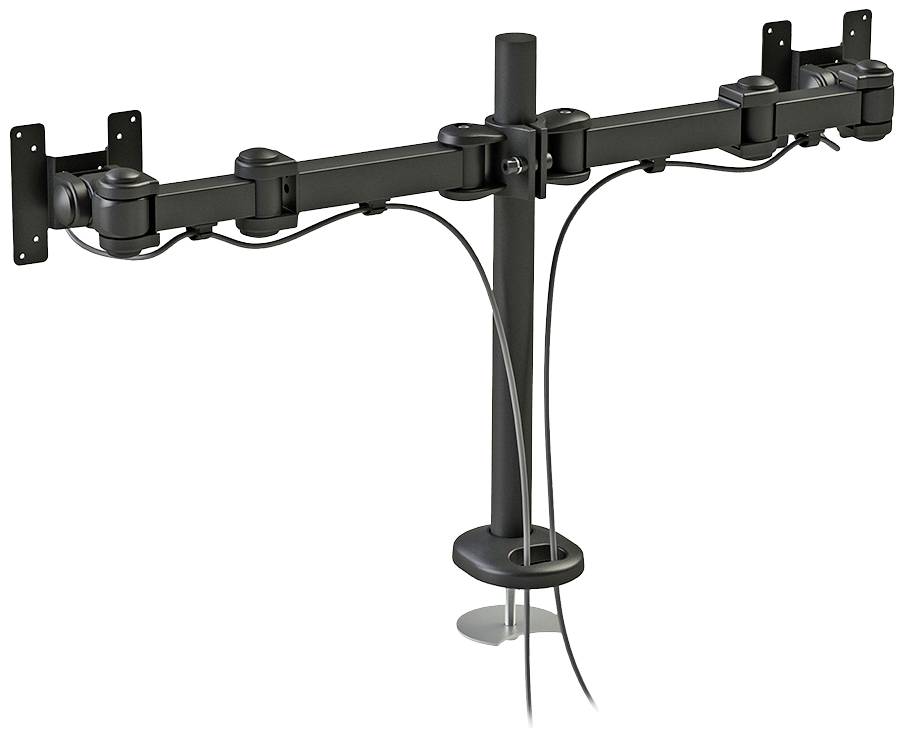

The NewStar desk mount, model FPMA-D960DG is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 26”. This mount is a great choice for space saving placement on desks using a grommet mount. NewStars’ unique tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 45 centimetres. Depth adjustable from 10 to 43 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. NewStar FPMA-D960DG has three pivot points and is suitable for screens up to 26" (65 cm). The weight capacity of this product is 10 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using NewStar VESA adapter plates. By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area. All installation material is included with the product.
Features
- The ultimate in flexibility
- Adjustable height
- Space-saving placing on desk
- Ergonomically
Scope of delivery
- Mount
- Fixings
- Installation manual.
