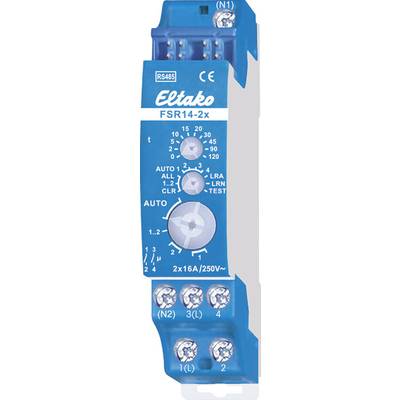

FSR14-2x Eltako RS485 Bus switch actuator 2-channel DIN rail Switching capacity (max.) 2000 W
EAN:
Part number:
Item no:
25 Piece(s)
Sales and shipping:
Number
Total (€ 47.05 / piece)
€
Technical specifications
- Product type
Bus switch actuator
- Series
Eltako
- Dim
(W x H x D) 20.0000 x 90.0000 x 70.0000 mm
- Max. switching capacity
2000 W
IP20
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Mounting type
DIN rail
2000 W
- Data transfer (Smart Home)
RS485
- Channels
2
- Width
20.0000 mm
- Height
90.0000 mm
- Depth
70.0000 mm
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
n.rel.
- Weight
0
- Switching current (max.)
16 A
- Factory colour
Multicolour
DRA (DIN-rail adapter)
16 A
0.1 W
2000 W
12-12 V
FALSE
TRUE
FALSE
2000 W
TRUE
2
1
16 A
None
FALSE
TRUE
FALSE
FALSE
IP20
FALSE
TRUE
FALSE
TRUE
TRUE
400 W
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2162173 FSR14-2x Eltako RS485 Bus switch actuator 2-channel DIN rail Switching capacity (max.) 2000 W
Description
Surge current relay with 2 channels, 1+1 normally open contact potential-free 16A/250V AC, incandescent lamps 2000W, with DX technology. Bidirectional. Stand-by loss only 0.1 watt. Series installation device for mounting on mounting rail. Connection to the Eltako RS485 bus. Cross-wiring bus and power supply with jumper. To do this, simply connect the N conductor to the terminals (N1) and L to 1(L) and/or N to (N2) and L to 3(L). This results in an additional standby loss of only 0.1 watt. If the supply voltage fails, the switching state is retained. With recurring supply voltage is switched off in a defined way. The channels can be taught in independantly of each other as A SINGLE AND/or SINGLE channel. Scene control: With one of the four control signals of a button programd as scene button with double rocker, several channels of one or more FSR14-2x can be switched on or off for each scene. Central commands on the PC are sent with the building radio visualization and control software GFVS. The LED below the upper rotary switch accompanies the programming process according to the operating instructions and indicates control commands during operation by short flashing.
