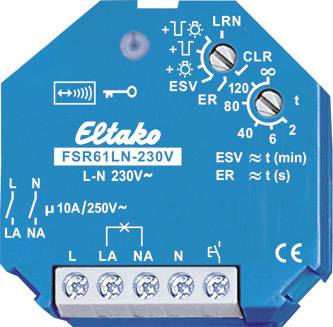

FSR61LN-230V Eltako Wireless Actuator Flush mount Switching capacity (max.) 2000 W Max. range (open field) 30 m

2 normally open contacts for two-pole switching of L and N 10A/250V AC, incandescent lamps 2000 Watt, off-delay with off-warning and button-continuous light can be switched on. Encrypted radio, bi-directional radio and repeater function can be activated. Stand-by loss only 0.8 watts. For panel mounting. 45mm long, 45mm wide, 33mm deep. Supply, switching and control voltage local 230V. If the supply voltage fails, the switching state is retained. With recurring supply voltage is switched off in a defined way. After installation, wait for the automatic short synchronization before connecting the switched consumer to the mains. In addition to the radio control input via an internal antenna, this radio actuator can also be locally controlled with a conventional control button that may be installed in front of it. A glow lamp current is not permitted. Encrypted sensors can be taught in. Bidirectional radio and/or a repeater function can be switched on. Each change in status and received central control message frames are then confirmed with a radio message frame. This radio telegram can be taught in to other actuators such as FSR61NP-230V, the GFVS software and in universal displays. Scene control: With one of the four control signals of a button programd as scene button with double rocker, several FSR61LN can be switched on or off to a scene. With the upper rotary switch, up to 35 radio buttons are assigned in the LRN position, of which one or more central control buttons. In addition, wireless window door contacts with the function NO or NC contact with open window. This then selects the desired function of this current surge switching relay. The LED accompanies the teach-in process according to the operating instructions and indicates radio control commands during operation by briefly flashing.
