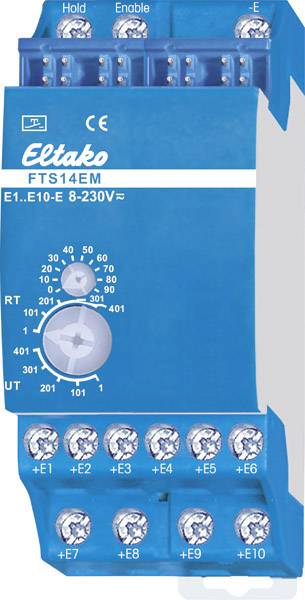

FTS14EM Eltako RS485 Control unit DIN rail
EAN:
Part number:
Item no:
Number
Total (€ 53.77 / piece)
€ 53.77
plus VAT.
Only 7 Piece(s) available
Technical specifications
- Product type
Control unit
- Series
Eltako
- Dim
(W x H x D) 20.0000 x 90.0000 x 70.0000 mm
IP20
- Power supply (LOV)
via DIN rail PSU
- Operating voltage
12 V
- Mounting type
DIN rail
- Data transfer (Smart Home)
RS485
- Width
20.0000 mm
- Height
90.0000 mm
- Depth
70.0000 mm
- Hub
Not required, optional for remote access
- Data exchange
Bidirectional (bi)
n.rel.
- Weight
0.1170 kg
- Factory colour
Blue
DRA (DIN-rail adapter)
FALSE
TRUE
FALSE
Clamp mounting
2
Other
FALSE
IP20
10
FALSE
TRUE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2162186 FTS14EM Eltako RS485 Control unit DIN rail
Description
Input module for the Eltako RS485 bus, 10 control inputs for universal control voltage. Stand-by loss only 0.1 watt. Connection to the Eltako RS485 bus. Cross-wiring bus and power supply with jumpers. Operation in conjunction with FAM14 or FTS14KS. 10 control input +E1..+E10/-E galvanically isolated from the supply voltage. Control voltage: 8..230V UC. From production week 44/15 the control inputs can be activated either for push buttons (factory setting), window door contacts or motion detectors. Control inputs for buttons: Telegrams from radio buttons are generated (e.g. 0x70). A maximum of 10 FTS14EM form a group. In total, a maximum of 50 FTS14EM with 500 keys or contacts are possible in a RS485 bus. In order to generate the required learning telegrams for programming in the actuators, the desired group must be selected at the upper and lower rotary switches. For buttons in the UT or RT area or for window door contacts and motion detectors in the RT area.
