Name: Gedore DVI-28L 2653257 Torque wrench 2800 Nm (max)
Brand: Gedore
SKU: 1908768
Availability: BackOrder

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

17 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 2,359.00 / piece)

€ 2,359.00

incl. VAT

14-day return policy included

Technical specifications

DVI-28L - GEDORE - torque multiplier DREMOPLUS ALU 2800 Nm
particularly suitable for:
Industry, construction sites, commercial and automotive workshops, agricultural technology, construction machines
bridge, ship, aircraft, railway, refineries
machine and plant engineering, maintenance
design:
Mechanical, hand-operated torque multiplier for the controlled screw suit and for loosening screw connections
with single-stage planetary gear
Housing from high-performance aluminum
Models
with 1:4 ratio, 1:5.5 guaranteed accuracy: Better than +/- 3 % tolerance
to operate in conjunction with a torque wrench
2 models with maximum load in the range of max. 2000 N
m to 2800 N
m
Model -Z: With offset reaction arm Z-shape made of chrome-vanadium steel

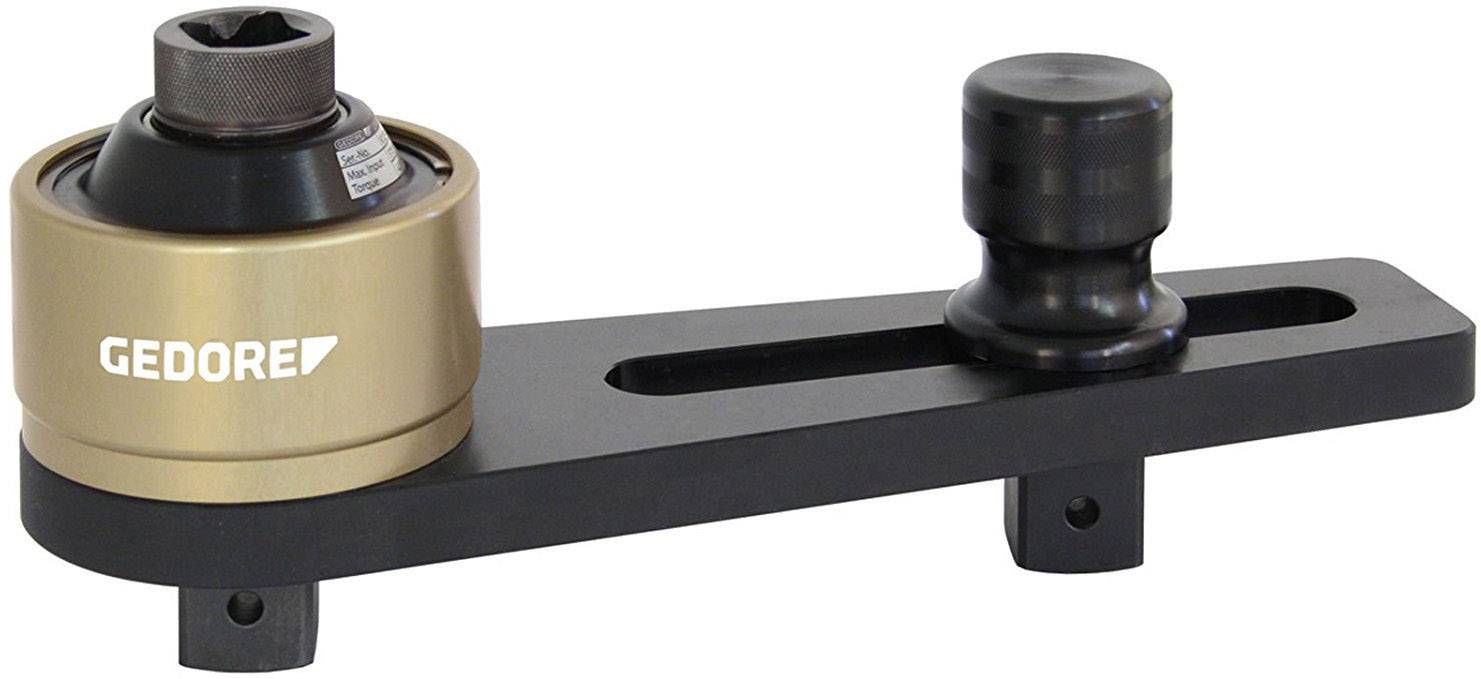

Model -L: With straight reaction arm L-shape, with adjustable reaction square, made of light metal
Output square with bore for power screwdriver inserts with locking pin and ring
Delivery:
Torque-versatile DREMOPLUS ALU
with model-dependant, firmly integrated, reaction arm in Z-shape or L-form
Delivery in sturdy transport case with foam insert
Factory test certificate and setting table
Technical detailed information is available on request

Documents & Downloads

User & Safety Instructions 1908768 Gedore DVI-28L 2653257 Torque wrench 2800 Nm (max)

Information 1908768 Gedore DVI-28L 2653257 Torque wrench 2800 Nm (max)

Particularly suitable for:
Industry, construction sites, car and truck garages, agricultural technology, construction machinery
Bridge, aircraft and railway construction, shipbuilding, refineries
Machinery and plant engineering, maintenance Features:
Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections
With a single-stage planet gear
High-performance aluminium housing
Multiplication at the ratio of 1:4, 1:5.5
Guaranteed accuracy: Better than +/- 3 % tolerance
For operation in combination with a torque wrench
2 models for maximum load in the range between max. 2000 N
m and 2800 N
m
Z model: with Z-form, offset reaction arm of chrome-vanadium steel
L model: with L-form straight reaction arm - with adjustable reaction square - of lightweight metal
Output square with drill hole for impact sockets with safety pin and ring Scope of delivery:
Torque Multiplier DREMOPLUS ALU
With firmly integrated reaction arm of an Z- or L-form depending on model
Delivery in sturdy shipping case with foam insert
Factory test certificate and setting table
Detailed technical information is available on request
