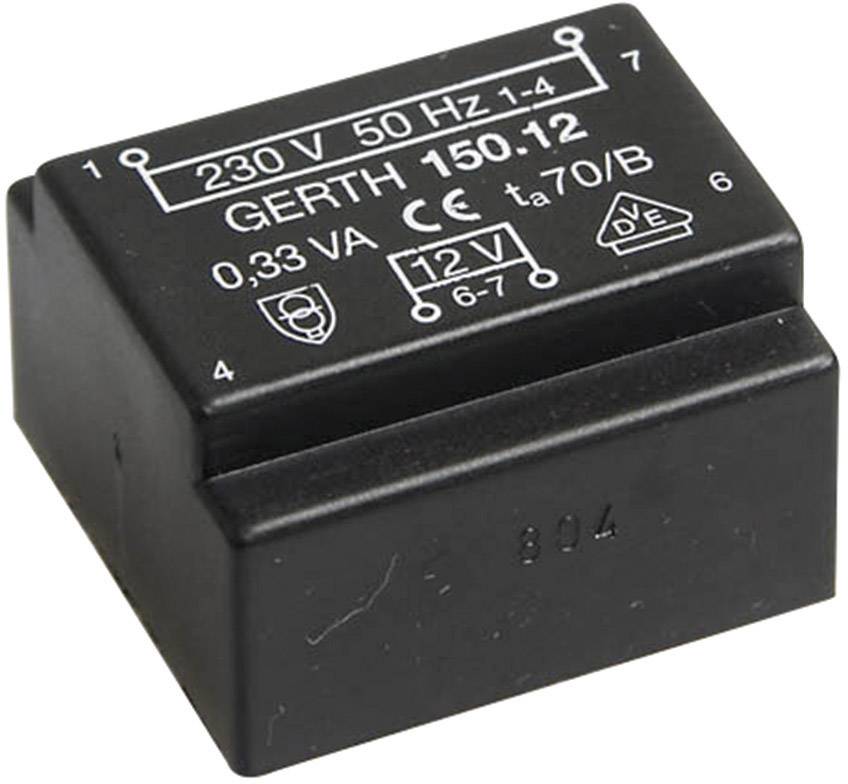

Image similar
Gerth PT151501 PCB mount transformer 1 x 230 V 1 x 15 V AC 0.35 VA 23 mA
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 3.49 / piece)
€ 5.99
-42 %
€ 3.49
incl. VAT
Only 5 Piece(s) available
Highlights & Details
EE 20/6,1 Print transformer
- 1 x 230 V
- 1 x 15 V AC
- 23 mA
- 0.35 VA
Technical specifications
- Product type
PCB mount transformer
- Output voltage
15 V AC
- Output voltage (number x voltage)
1 x 15 V AC
- Output current
23 mA
- No. of inputs
1 x
- No. of outputs
1 x
- Input voltage
230 V
- Input voltage (number x voltage)
1 x 230 V
0.35 VA
- Width
22 mm

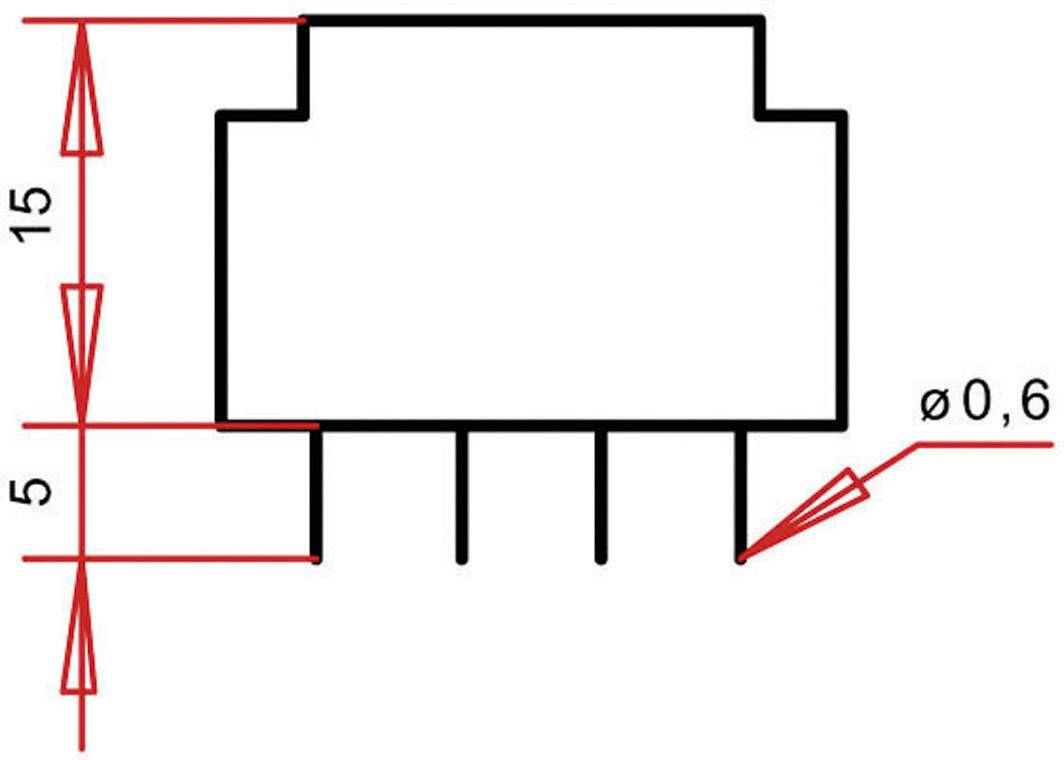

- Height
15 mm
- Length
24 mm
- Type
PT151501

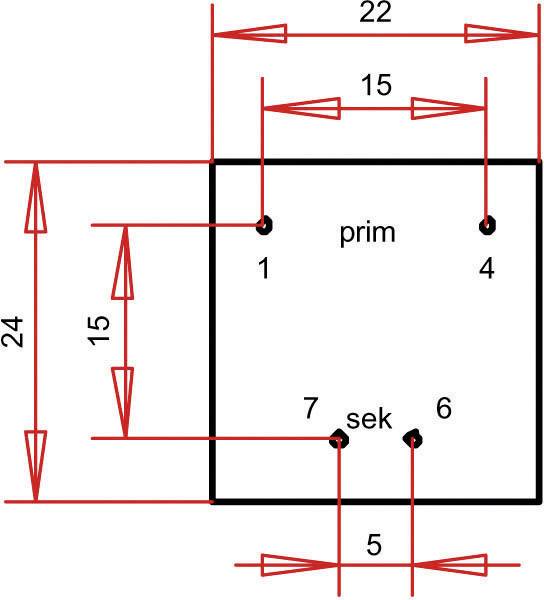

- Dim
(L x W x H) 24 x 22 x 15 mm
- Connection
Soldering
- Frequency
50 - 60 Hz
- Weight
25 g
- Content
1 pc(s)
- Max. ambient temperature
+70 °C
