Gerth PT420902 PCB mount transformer 1 x 230 V 2 x 4.50 V AC 4.80 VA 533 mA

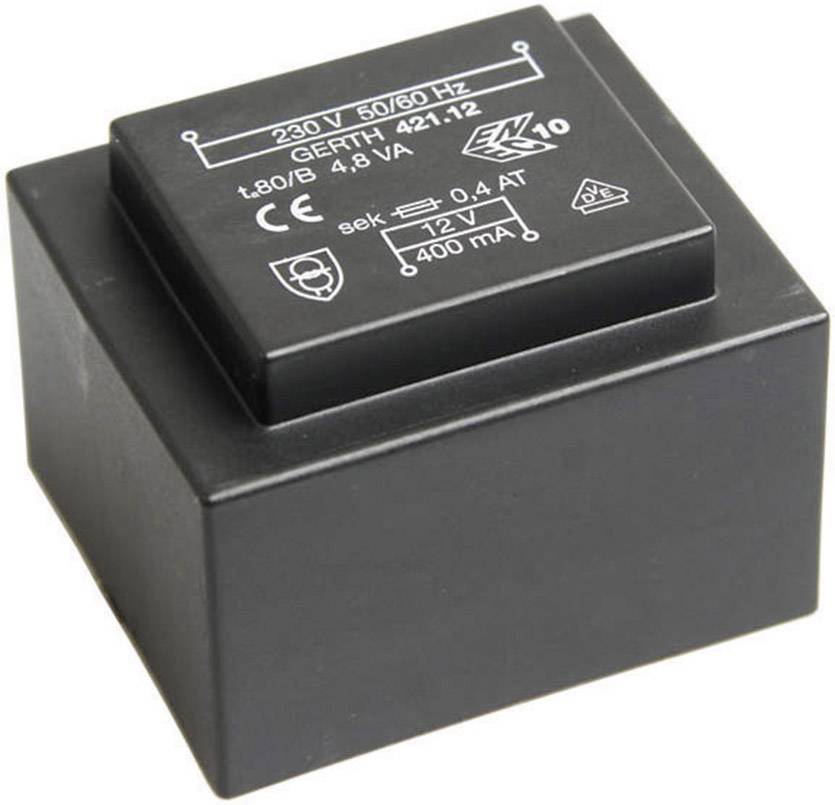

Black ring core transformer with markings: '230V 50/60Hz', 't.80/B 4.8 VA', 'sec: 0.4 AT, 12V, 400mA'.

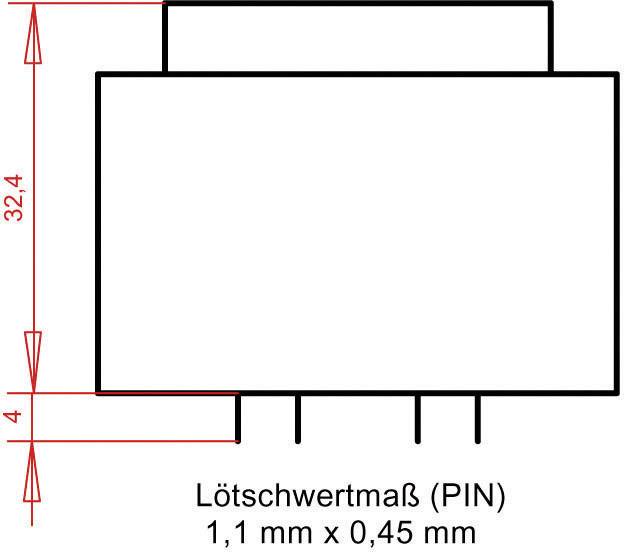

Technical drawing of a rectangular component with dimensions: 32.4 mm total height, 4 mm height of rectangular part; PIN: 1.1 mm x 0.45 mm.

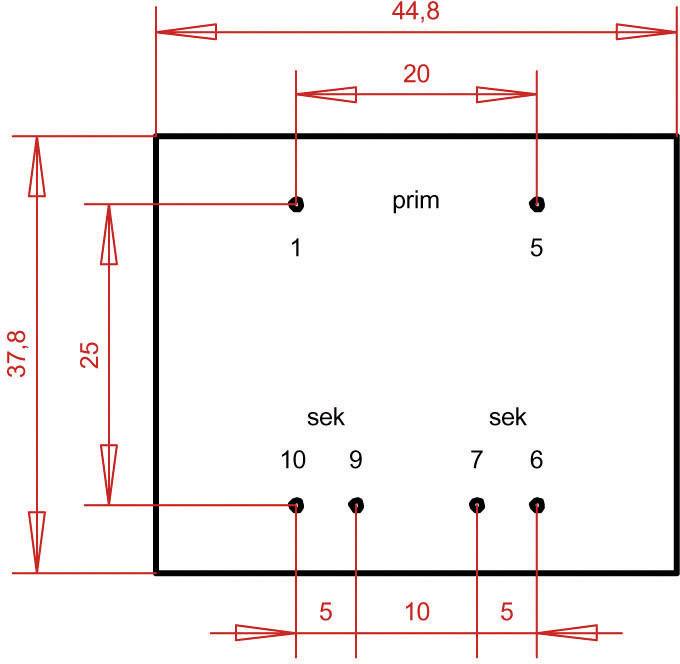

Sketch of a rectangular component with dimensions: 44.8 length, 37.8 width. Primary side with markings 'prim', 1, 5; secondary side with 10, 9, 7, 6.
1/3
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Mon 2 Nov
4 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 7.99 / piece)
€ 7.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 4 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

EI 42/14.8 Print transformer

  • 1 x 230 V
  • 2 x 4.50 V AC
  • 533 mA
  • 4.80 VA

Technical specifications

Product type

PCB mount transformer

Output voltage

4.50 V AC

Output voltage (number x voltage)

2 x 4.50 V AC

Output current

533 mA

No. of inputs

1 x

No. of outputs

2 x

Input voltage

230 V

Input voltage (number x voltage)

1 x 230 V

4.80 VA

Width

45 mm

Height

32 mm

Length

38 mm

Type

PT420902

Dim

(L x W x H) 38 x 45 x 32 mm

Connection

Soldering

Frequency

50 - 60 Hz

Weight

192 g

Content

1 pc(s)

Max. ambient temperature

+70 °C

Documents & Downloads

Datasheet

Datasheet 1092901 Gerth PT420902 PCB mount transformer 1 x 230 V 2 x 4.50 V AC 4.80 VA 533 mA

User & Safety Instructions

User & Safety Instructions 1092901 Gerth PT420902 PCB mount transformer 1 x 230 V 2 x 4.50 V AC 4.80 VA 533 mA
