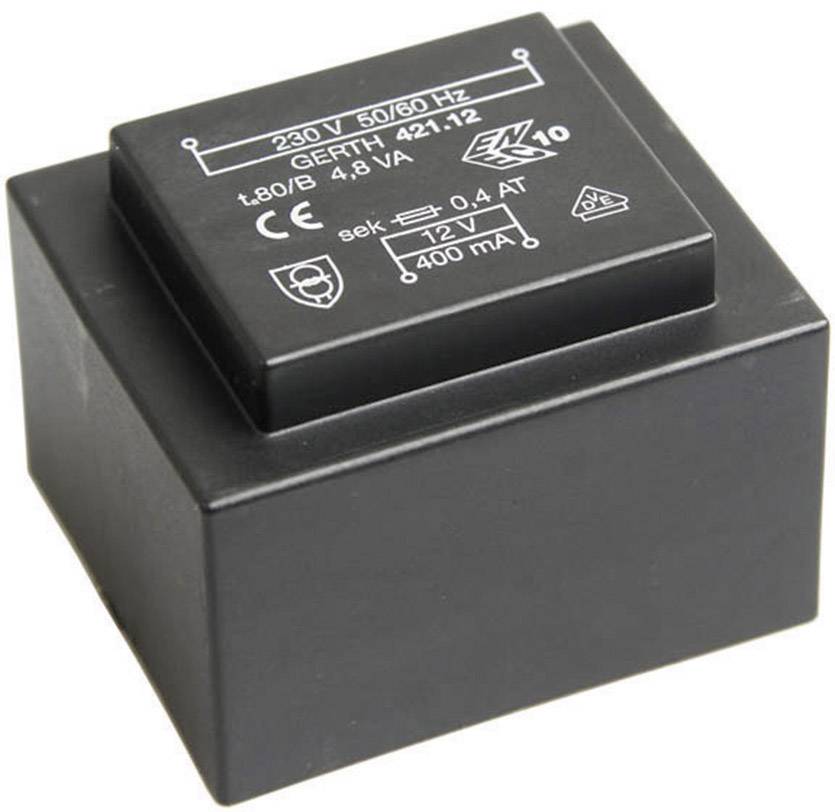

Image similar
1/3

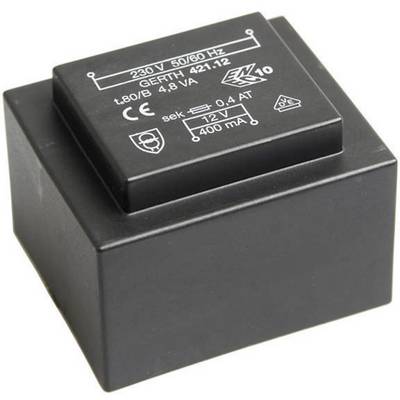

Image similar
Gerth PT423002 PCB mount transformer 1 x 230 V 2 x 15 V AC 4.80 VA 160 mA
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 6.71 / piece)
€ 6.71
plus VAT.
Only 1 Piece(s) available
Highlights & Details
EI 42/14.8 Print transformer
- 1 x 230 V
- 2 x 15 V AC
- 160 mA
- 4.80 VA
Technical specifications
- Output voltage
15 V AC
- Output voltage (number x voltage)
2 x 15 V AC
- Output current
160 mA
- No. of inputs
1 x
- No. of outputs
2 x
- Input voltage
230 V
- Input voltage (number x voltage)
1 x 230 V
4.80 VA
- Width
45 mm
- Height
32 mm
- Length
38 mm
- Type
PT423002
- Content
1 pc(s)

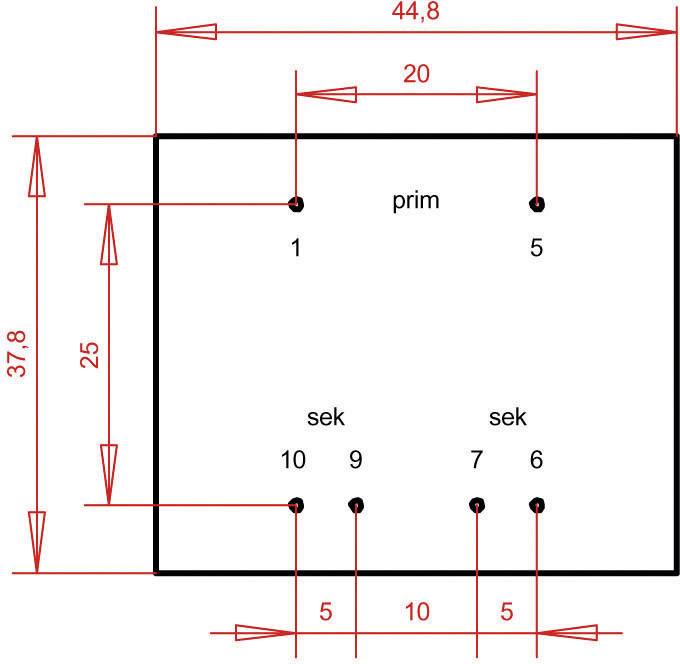

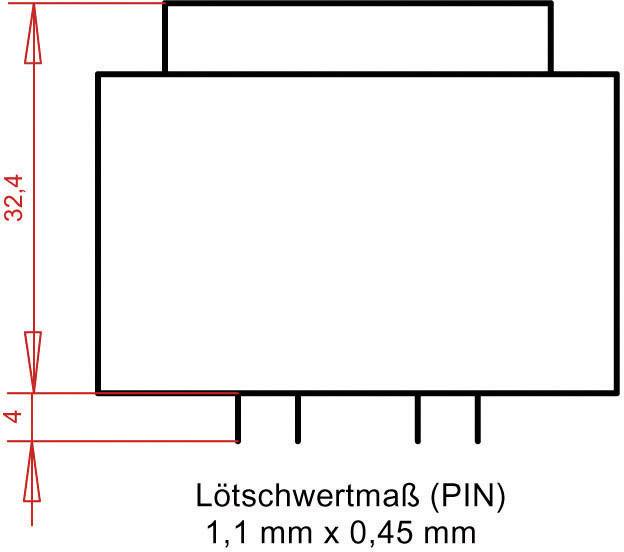

- Dim
(L x W x H) 38 x 45 x 32 mm
- Connection
Soldering
- Frequency
50 - 60 Hz
- Max. ambient temperature
+70 °C
- Weight
192 g
- Product type
PCB mount transformer
