Gerth PT481201 PCB mount transformer 1 x 230 V 1 x 12 V AC 10 VA 833 mA

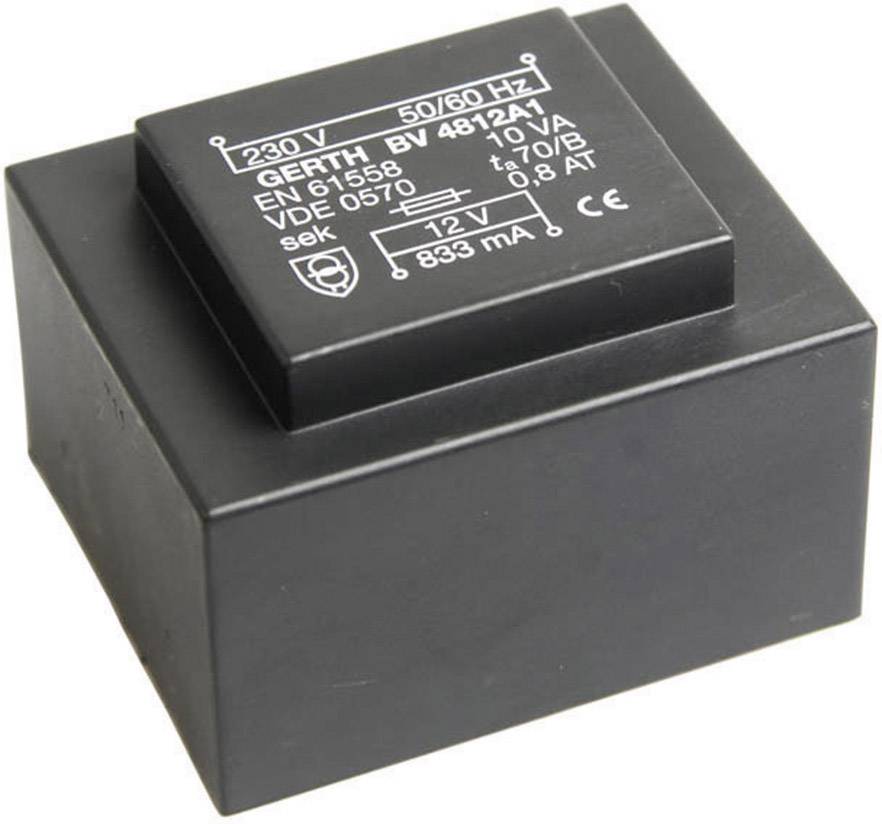

Black electrical transformer with white print. Label shows specifications: 230 V, 50/60 Hz, 12 V, 833 mA.

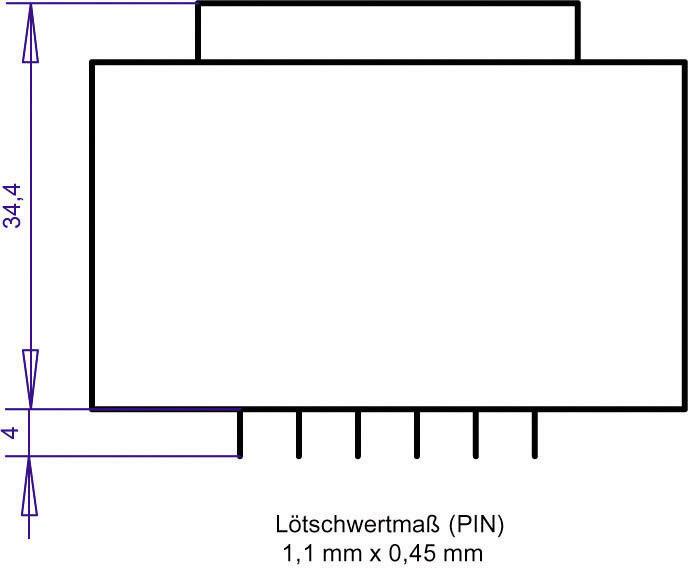

Technical drawing of a rectangular component with dimensions: height 34.4 mm, width 4 mm; soldering pad (PIN): 1.1 mm x 0.45 mm.

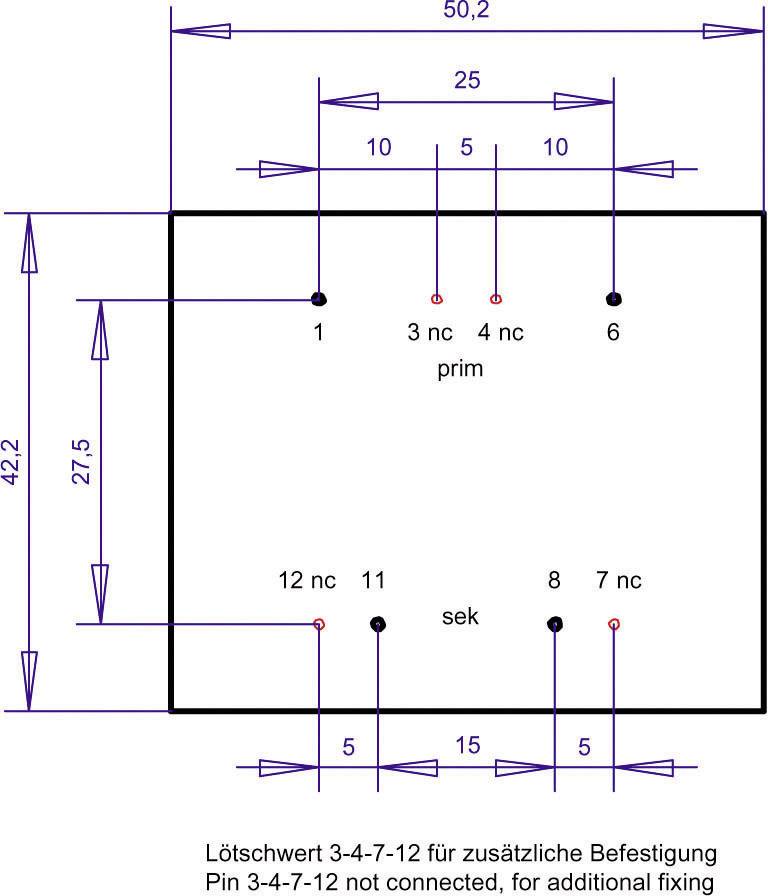

'Diagram of a rectangular object with dimensions and positions of mounting points. Notes on additional fastening.'
1/3
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 14.99 / piece)
€ 14.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

EI 48/16.8 Print transformer

  • 1 x 230 V
  • 1 x 12 V AC
  • 833 mA
  • 10 VA

Technical specifications

Product type

PCB mount transformer

Output voltage

12 V AC

Output voltage (number x voltage)

1 x 12 V AC

Output current

833 mA

No. of inputs

1 x

No. of outputs

1 x

Input voltage

230 V

Input voltage (number x voltage)

1 x 230 V

10 VA

Width

50 mm

Height

34 mm

Length

42 mm

Type

PT481201

Dim

(L x W x H) 42 x 50 x 34 mm

Connection

Soldering

Frequency

50 - 60 Hz

Weight

295 g

Content

1 pc(s)

Max. ambient temperature

+70 °C

Documents & Downloads

Datasheet

Datasheet 1092944 Gerth PT481201 PCB mount transformer 1 x 230 V 1 x 12 V AC 10 VA 833 mA

User & Safety Instructions

User & Safety Instructions 1092944 Gerth PT481201 PCB mount transformer 1 x 230 V 1 x 12 V AC 10 VA 833 mA
