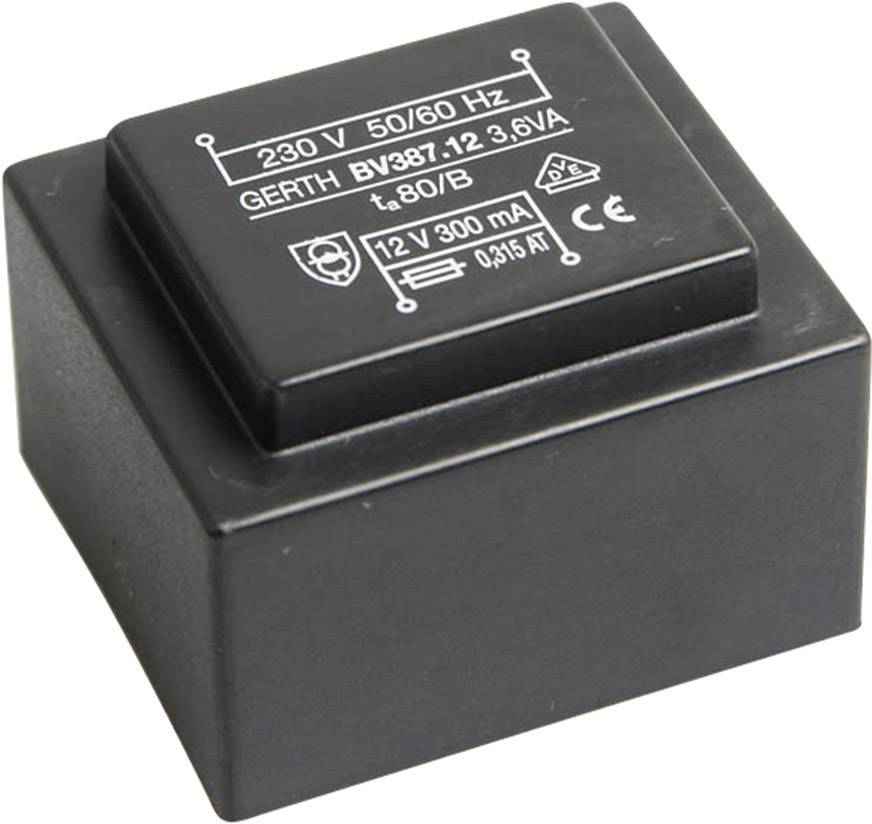

Image similar
1/3
Image similar
Gerth PTG380801 PCB mount transformer 1 x 230 V 1 x 8 V AC 3.60 VA 450 mA
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 5.03 / piece)
€ 5.03
plus VAT.
Only 1 Piece(s) available
Highlights & Details
EI 38/13.6 Print transformer
- 1 x 230 V
- 1 x 8 V AC
- 450 mA
- 3.60 VA
Technical specifications
- Output voltage
8 V AC
- Output voltage (number x voltage)
1 x 8 V AC
- Output current
450 mA
- No. of inputs
1 x
- No. of outputs
1 x
- Input voltage
230 V
- Input voltage (number x voltage)
1 x 230 V
3.60 VA
- Width
41 mm
- Height
29 mm
- Length
34 mm
- Type
PTG380801
- Content
1 pc(s)

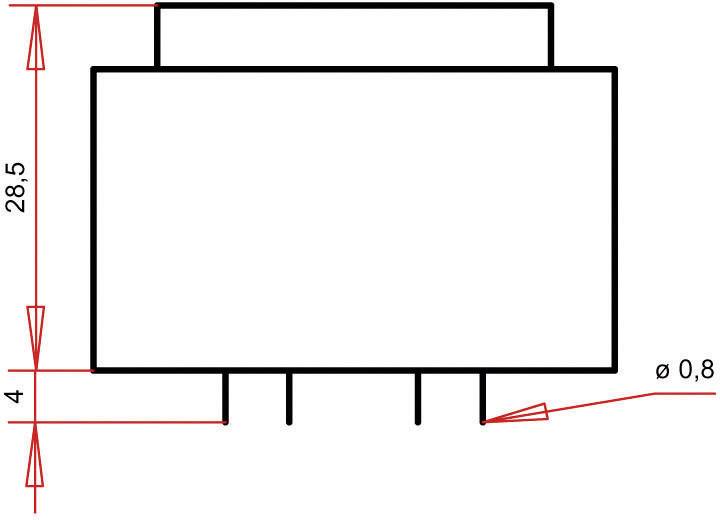

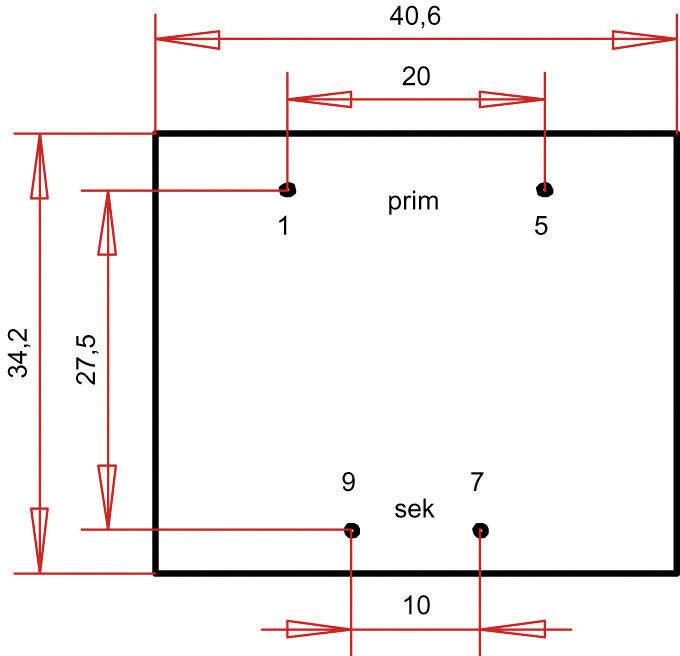

- Dim
(L x W x H) 34 x 41 x 29 mm
- Connection
Soldering
- Frequency
50 - 60 Hz
- Max. ambient temperature
+70 °C
- Weight
152 g
- Product type
PCB mount transformer
