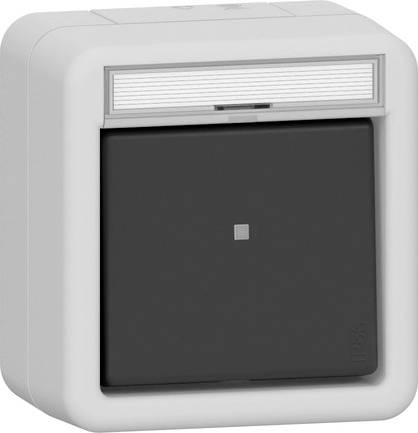

GIRA Toggle Grey 311631 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Suitable for protection class (IP): IP66
- Material: Plastic
- Material quality: Thermoplastic
- Surface protection: Other
- Mounting type: Screw fixing
- Connection type: Plug-in terminal
- Halogen-free: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Antibacterial treatment: No.
- Operating mode rocker/button
- Lighting: Yes
- Assembly: Base element with complete casing
- Switching type: Toggle switch
- Push button: No
- Number of operating rockers: 1
- With mounting plate: No.
- Text field/label area: Yes
- Feedback contact: No.
- Heating switch: No.
- Washing machine switch: No.
- Number of modules (for modular design): 1
- Rated current 10 A
- Lighting function: Illuminated when switched on
- Lighting type: Glow lamp
- Type
Rocker control Auswe BSF WD AP gray 311631
- Product type
Toggle
- Factory colour
Grey
- Nominal voltage
250 V
- Content
1 pc(s)
- Mounting type
Surface-mount
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3824664 GIRA Toggle Grey 311631 1 pc(s)
Description
Rocker control switch 10 AX 250 V~ with labeling field gray Universal-off changeover switch Features: - With orange LED-lighting element. - Plastic: Halogen-free, impact-resistant and break-proof thermoplastic - floating rocker provides automatic and precise positioning of the rocker in the cover frame. - Voltage testing possible from the front. - Uniform stripping length (11 mm) for switches and sockets ensures faster and more efficient mounting. - The use of rigid and flexible conductor material is possible. - Easily accessible release levers. - Unbreakable thermoplastic base. - Standard LED lighting elements can be used from the front. - By turning the lighting element at 180°, it is possible to change between the control lighting and continuous lighting depending on the switch. - Water-protected Wall-mounted IP66 Notes: - Can also be illuminated. Scope of supply: - "Heating On/Off" label, "WARMING AAN/UIT" is attached. - Cable entry 2-fold (twin entry) is attached. - Orange 230 V~ 0.5 mA LED lamp is included.
