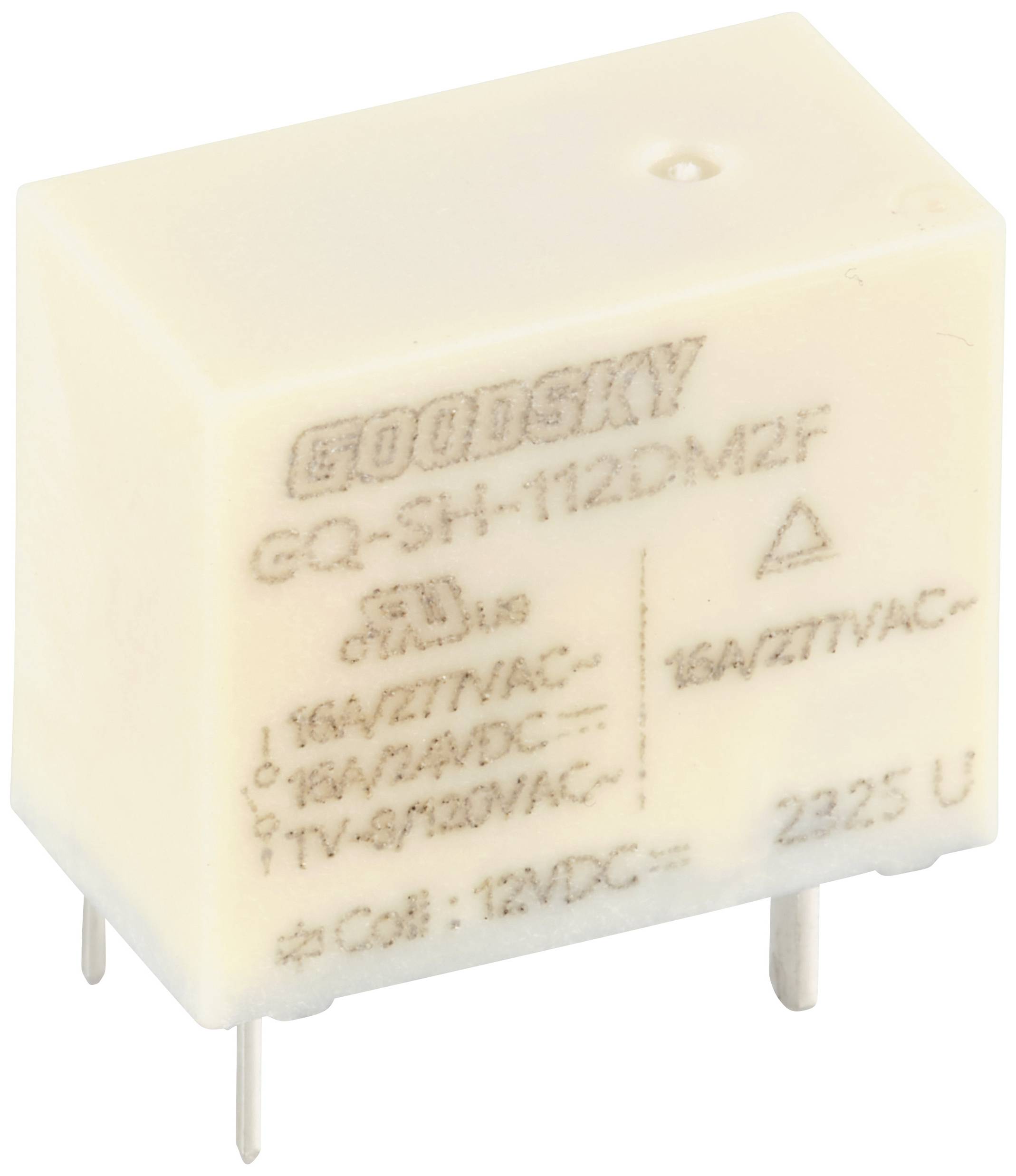

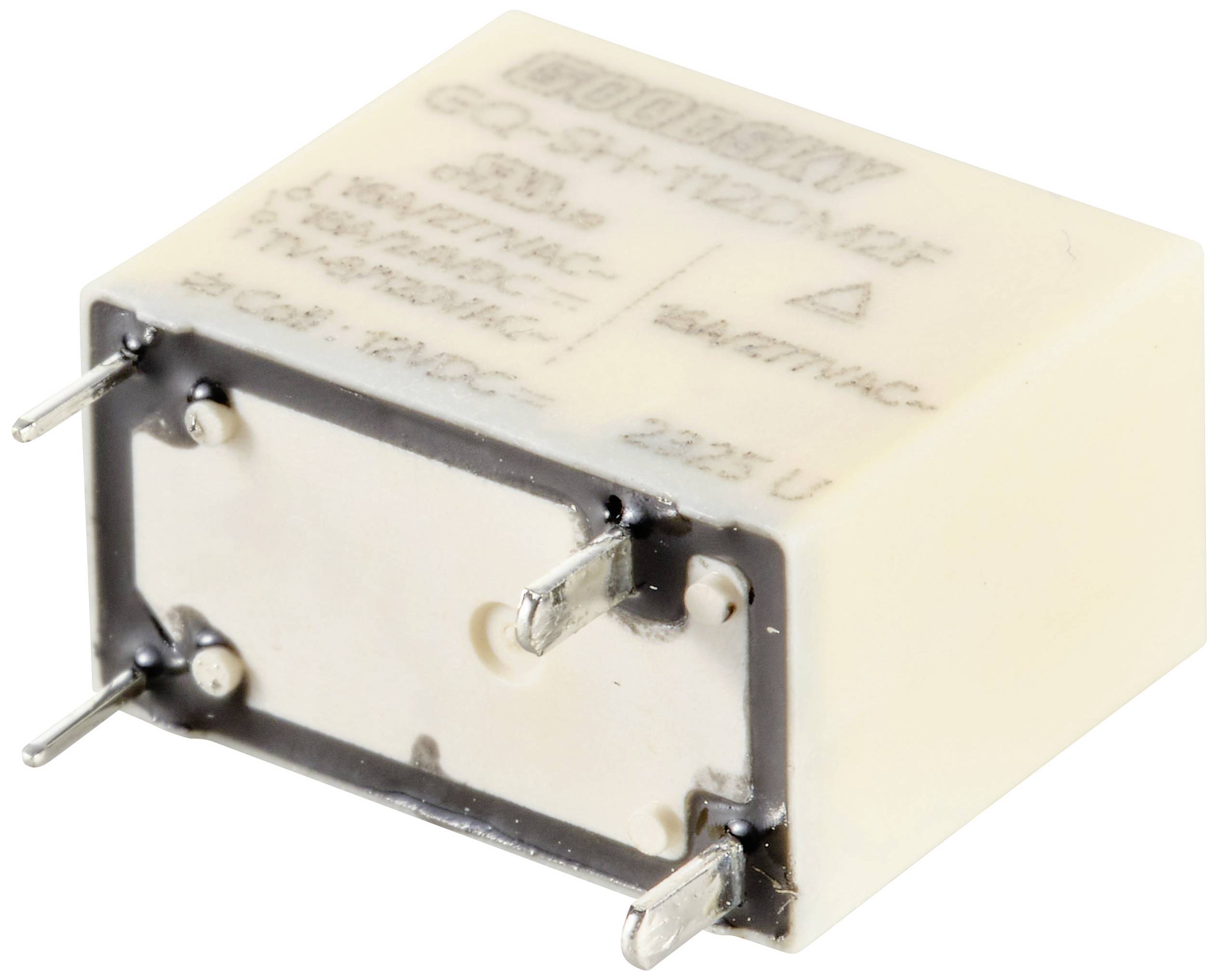

GoodSky GQ-SH-112DM2F PCB relay 12 V DC 16 A 1 maker 1 pc(s)
Product type
PCB relay
Coil nominal voltage
12 V DC
Contact type
1 maker
Switching voltage (max.)
250 V AC
Switching current (max.)
16 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 1.99 / piece)
€ 1.99
incl. VAT
14-day return policy included
Highlights & Details
GoodSky GQ series SPST-NO Relay
- Miniature size with low power consumption for rated loads up to 16 A
- Surge strength up to 10,000 V
- Operating temperature of up to 105 °C
Technical specifications
- Product type
PCB relay
- Type
GQ-SH-112DM2F
- Coil nominal voltage
12 V DC
- Resistance (coil)
400 Ω
- Contact type
1 maker
- Contact material
Ag-alloy
- Switching voltage (max.)
250 V AC
- Switching current (max.)
16 A
- Connection
Solder pins
- Insulation voltage
10.000 V
- Response time
10 ms
- Fall time
5 ms
- Electrical lifespan
10 5 Operations at Rated Resistive Load
2.5 x 104 Operations at TV Rated Load
- Durability
107 Operations at No Load Condition
- Min. temperature
-40 °C
- Max. temperature
105 °C
- Weight
9 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2953926 GoodSky GQ-SH-112DM2F PCB relay 12 V DC 16 A 1 maker 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2953926 GoodSky GQ-SH-112DM2F PCB relay 12 V DC 16 A 1 maker 1 pc(s)
Description
Scope of delivery
- Relay
