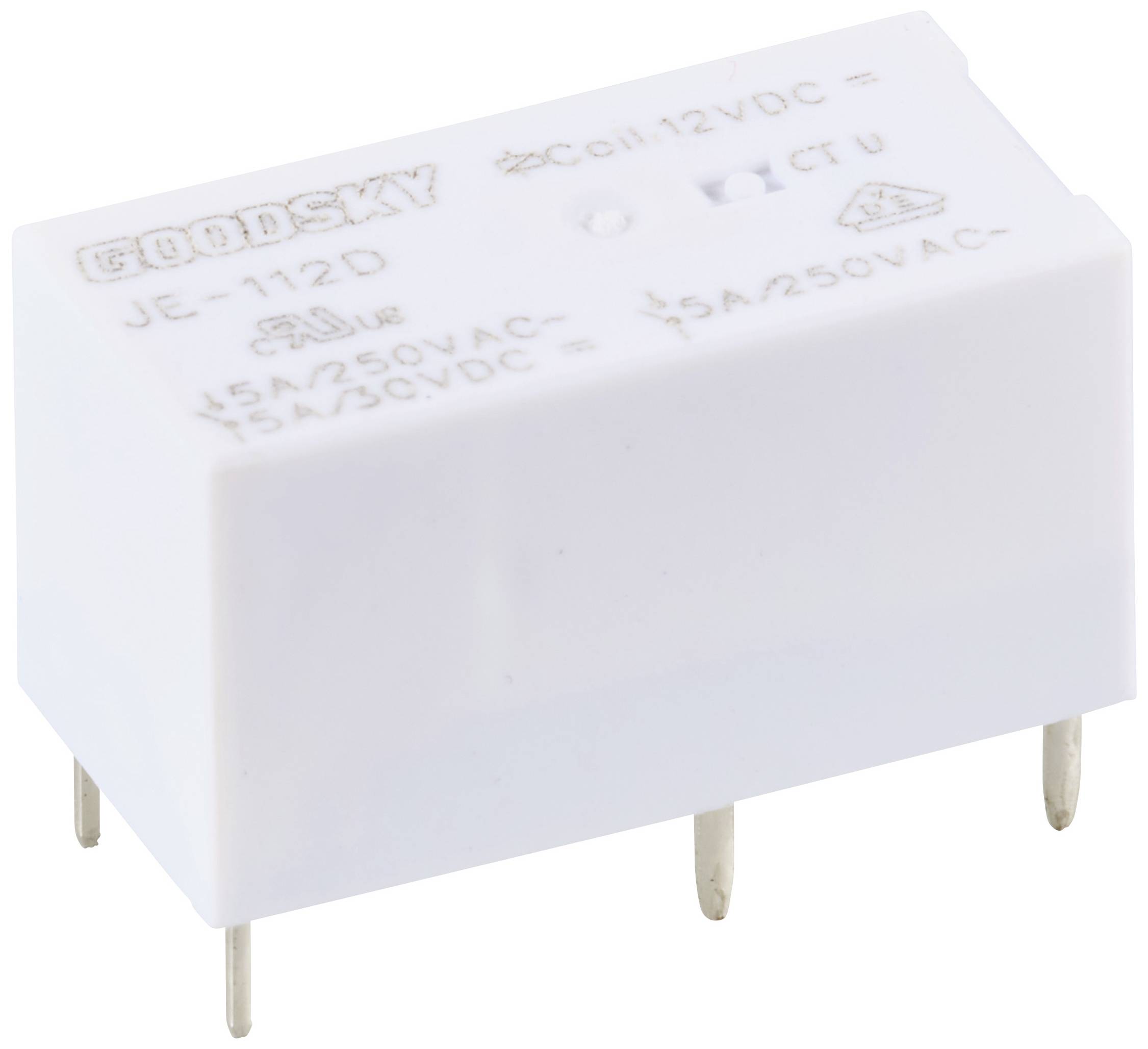

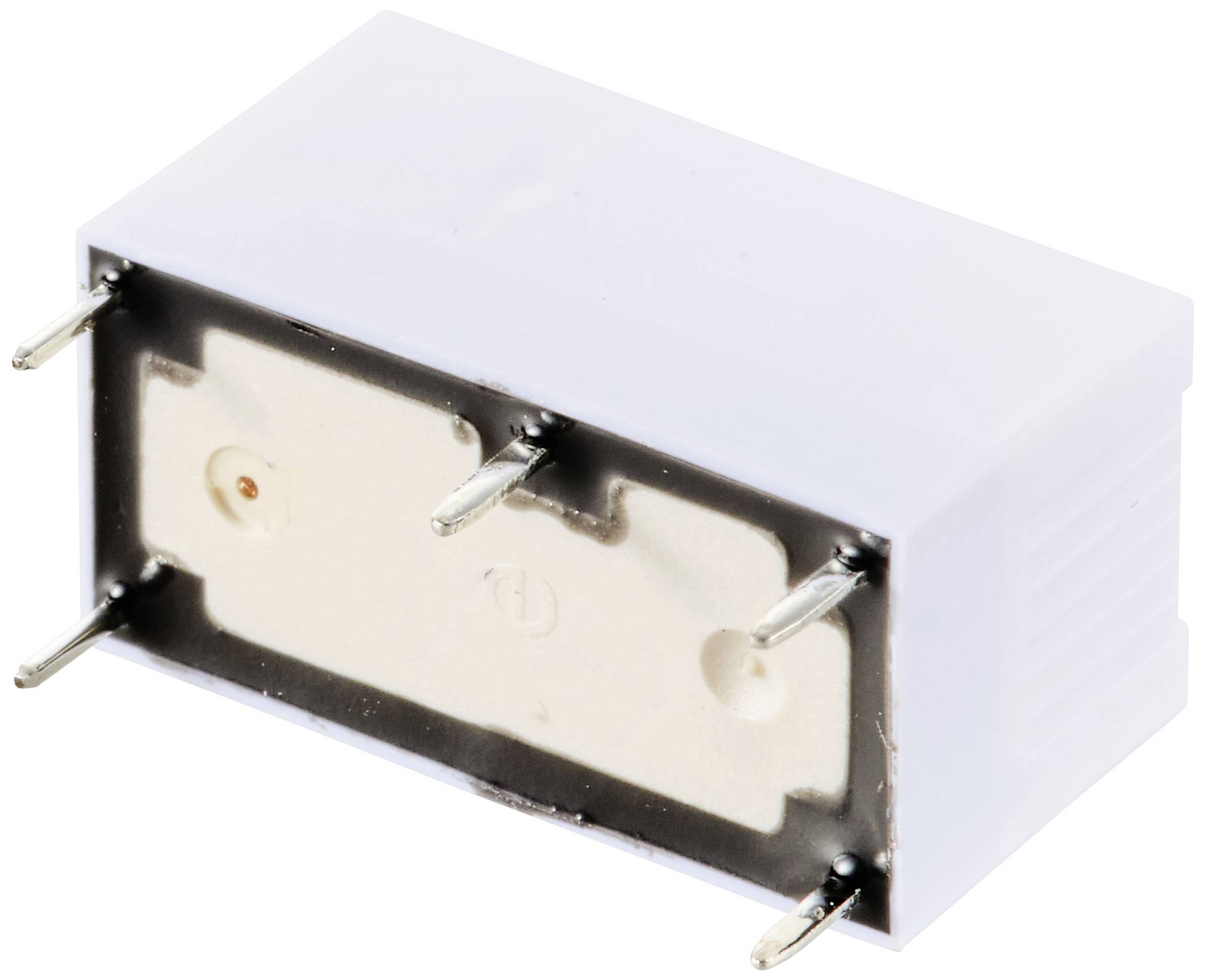

GoodSky JE-112D PCB relay 12 V DC 5 A 1 change-over 1 pc(s)
EAN:
Part number:
Item no:
Product type
PCB relay
Coil nominal voltage
12 V DC
Contact type
1 change-over
Switching voltage (max.)
250 V AC
Switching current (max.)
5 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.34
10
7% = € 0.17
€ 2.17
25
10% = € 0.24
€ 2.10
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.34 / piece)
€ 2.34
plus VAT.
Highlights & Details
GoodSky JE series SPDT-NO Relay
- Low coil power consumption (200 mW)
- Dielectric strength up to 4,000 VAC
- Low 10.5 mm profile
- Clearance and creepage of more than 5.0 mm
Technical specifications
- Product type
PCB relay
- Type
JE-112D
- Coil nominal voltage
12 V DC
- Resistance (coil)
720 Ω
- Coil voltage rating
200 mW
- Contact type
1 change-over
- Contact material
Ag-alloy
- Switching voltage (max.)
250 V AC
- Switching current (max.)
5 A
- Connection
Solder pins
- Response time
8 ms
- Fall time
6 ms
- Electrical lifespan
10 5 Operations at Rated Resistive Load
- Durability
107 Operations at No Load Condition
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Weight
6 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2953917 GoodSky JE-112D PCB relay 12 V DC 5 A 1 change-over 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2953917 GoodSky JE-112D PCB relay 12 V DC 5 A 1 change-over 1 pc(s)
Description
Scope of delivery
- Relay
