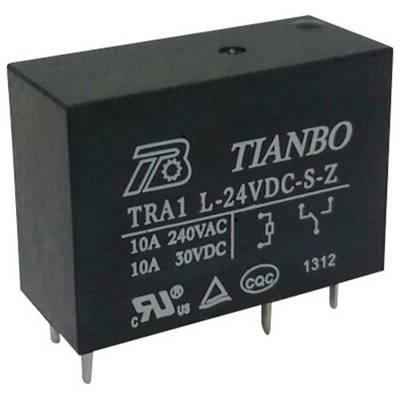

Tianbo Electronics TRA1 L-24VDC-S-Z PCB relay 24 V DC 12 A 1 change-over 1 pc(s)
EAN:
Part number:
Item no:
Product type
PCB relay
Coil nominal voltage
24 V DC
Control mode
monostable, 1 coil
Contact type
1 change-over
Switching voltage (max.)
30 V DC
250 V AC
Datasheet (PDF)
50 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.34
10
7% = € 0.17
€ 2.17
25
10% = € 0.24
€ 2.10
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.34 / piece)
€
Technical specifications
- Product type
PCB relay
- Type
TRA1 L-24VDC-S-Z
- Coil nominal voltage
24 V DC
- Control mode
monostable, 1 coil
- Resistance (coil)
1050 Ω
- Coil voltage rating
0.54 W
- Contact type
1 change-over
- Contact material
Silver alloy
- Switching voltage (max.)
30 V DC
250 V AC
- Switching current (max.)
12 A
- Max. switching capacity
2500 VA
300 W
- Connection
Solder pins
- Response time
20 ms
- Fall time
10 ms
- Electrical lifespan
100 000 Switching cycles
- Durability
1000 0000 switching cycles
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Length
29 mm
- Width
12.7 mm
- Height
24.4 mm
- Dim
(L x W x H) 29 x 12.7 x 24.4 mm
- Content
1 pc(s)
