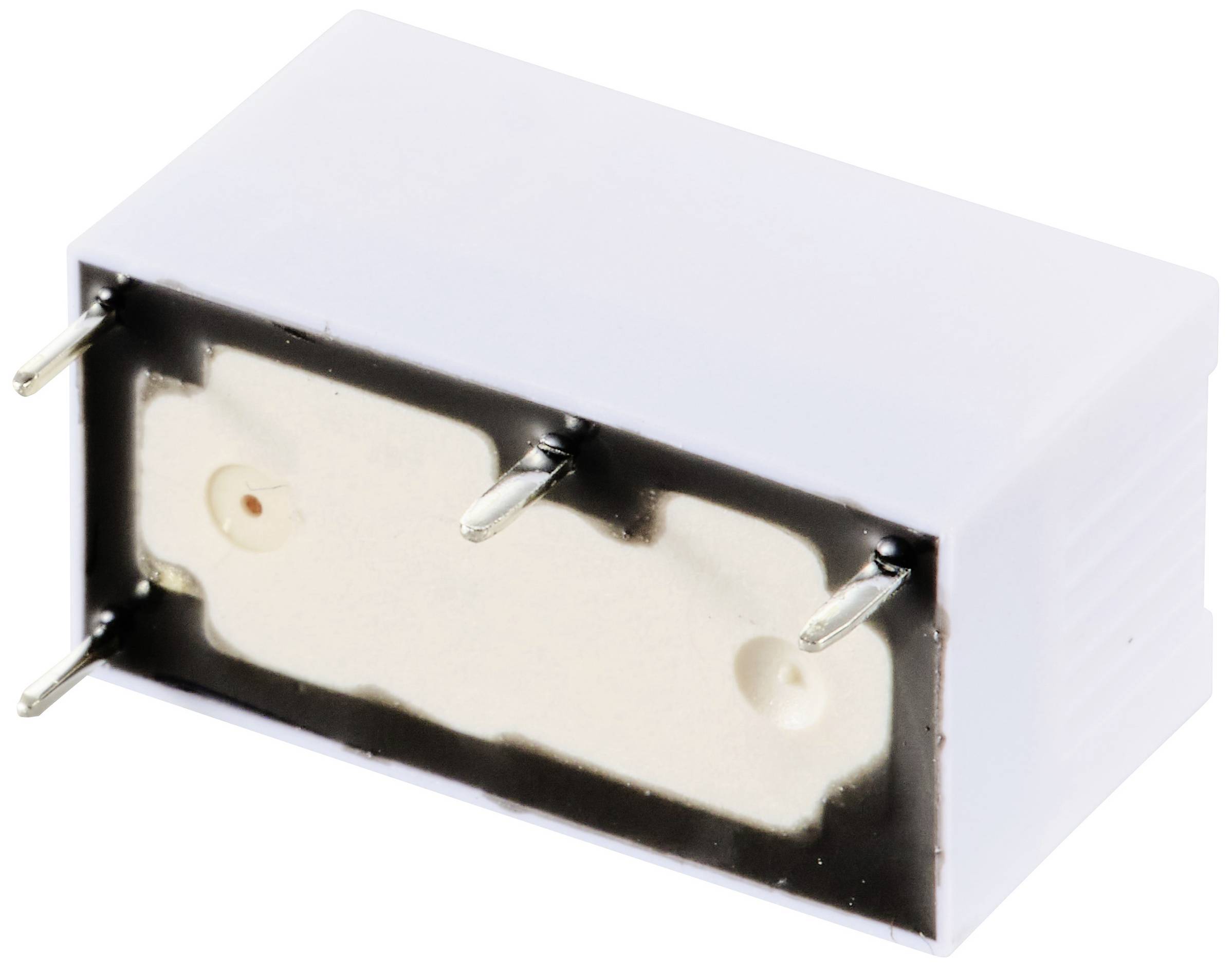

GoodSky JE-124DM PCB relay 24 V DC 8 A 1 maker 1 pc(s)
EAN:
Part number:
Item no:
Product type
PCB relay
Coil nominal voltage
24 V DC
Contact type
1 maker
Switching voltage (max.)
250 V AC
Switching current (max.)
8 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.09
10
8% = € 0.16
€ 1.93
25
11% = € 0.22
€ 1.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.09 / piece)
€ 2.09
plus VAT.
Highlights & Details
GoodSky JE series SPST-NO Relay
- Low coil power consumption (200 mW)
- Dielectric strength up to 4,000 VAC
- Low 10.5 mm profile
- Clearance and creepage of more than 5.0 mm
Technical specifications
- Product type
PCB relay
- Type
JE-124DM
- Coil nominal voltage
24 V DC
- Resistance (coil)
2880 Ω
- Coil voltage rating
200 mW
- Contact type
1 maker
- Contact material
Ag-alloy
- Switching voltage (max.)
250 V AC
- Switching current (max.)
8 A
- Connection
Solder pins
- Response time
8 ms
- Fall time
6 ms
- Electrical lifespan
10 5 Operations at Rated Resistive Load
- Durability
107 Operations at No Load Condition
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Weight
6 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2953921 GoodSky JE-124DM PCB relay 24 V DC 8 A 1 maker 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2953921 GoodSky JE-124DM PCB relay 24 V DC 8 A 1 maker 1 pc(s)
Description
Scope of delivery
- Relay
