Name: Grothe 43740 Wireless door chime Complete set
Brand: Grothe
SKU: 2386853
Availability: SoldOut

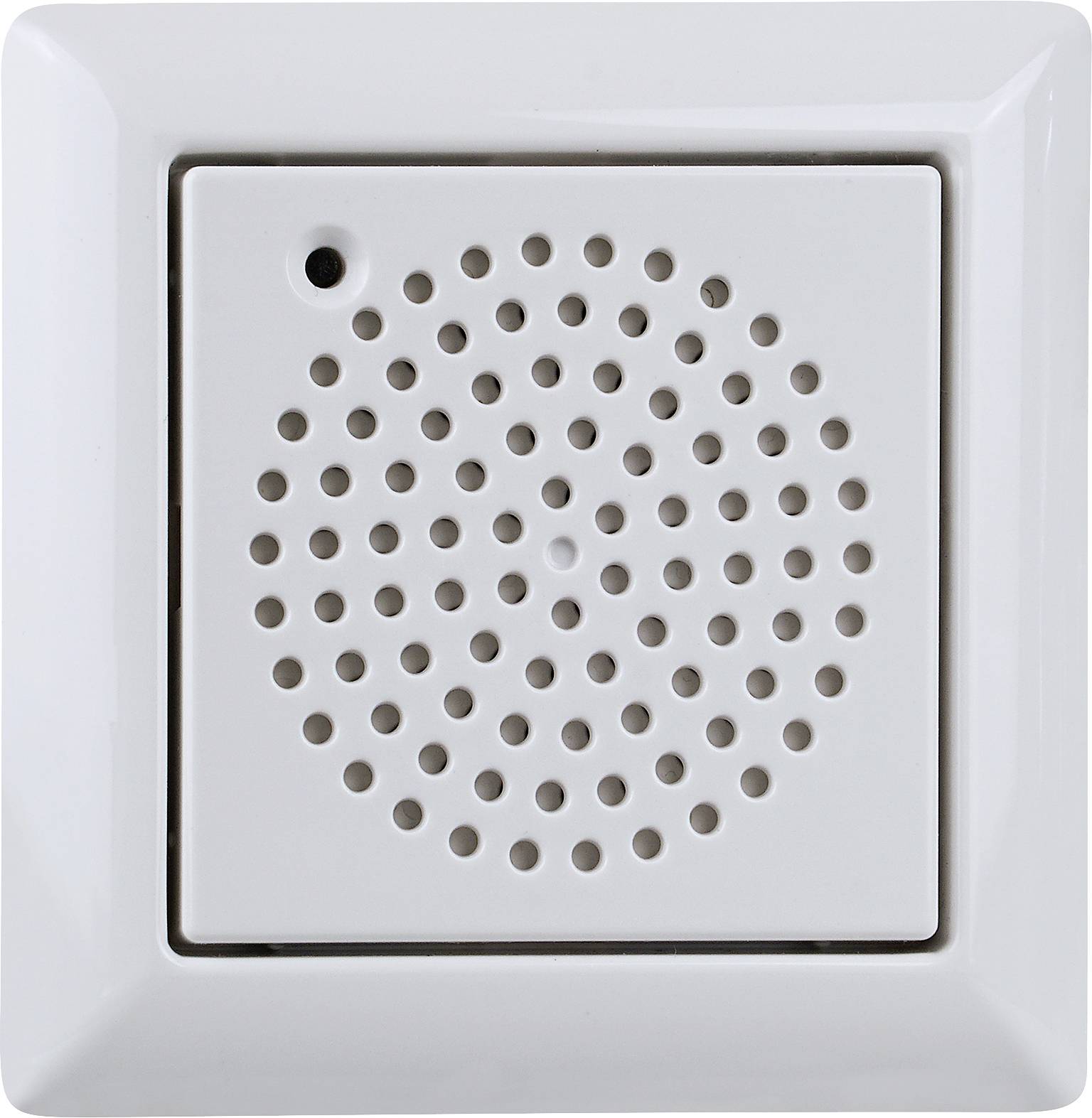

White wall-mounted square speaker or intercom grille with a circular pattern of perforations and a small indicator hole in the corner.

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 67.99 / piece)

€ 67.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

FLUSH-MOUNTED radio gong set UP-FG 230ws

Flush mounting
LED setting button
Voice prompts and LED status messages
Mute/snooze function

Technical specifications

Installation depth 40 mm + cover 11 mm
Power supply: 230 V AC
Radio frequency: 868.35 MHz

Product type: Wireless door chime

Component: Complete set

: 500 m

Tunes: 15

Volume: 83 dBa

Adjustable volume: 4-stage

Factory colour: White

Frequency: 868 MHz

Dim: (W x H x D) 80 x 80 x 52 mm

Transmitter dimensions: 100 x 36 x 18 mm

Width: 80 mm

Height: 80 mm

Depth: 52 mm

Current consumption: 0.015 A

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2386853 Grothe 43740 Wireless door chime Complete set

Description

The radio gong is intended for installation in a flush-mounted device socket and is operated with a power supply of 230 V AC. A matching cover frame is included in the delivery – however, you can also use frames from other switch manufacturers. Minor adjustments may then be necessary.

This text is machine translated.

Features

Can assign an individual call melody to each coupled wireless doorbell button (radio motion detector) or connected button
Can be muted indefinitely or put into snooze mode for 1/3/9 hours and does not signal. As long as the LED flashes to remind you
Saves all settings permanently – even without power supply
Individually adjustable You can assign a different melody to each MISTRAL wireless bell button, motion detector, (general transmitter), connected button, etc. One exception: The volume is always the same for all
Quickly ready for use, since it first only needs to be coupled with the wireless doorbell button (general transmitter). Later, the ring tone and volume are set
Is part of an expandable system that uses different wireless doorbell buttons, radio bells, radio motion detectors and so on (general transmitters) of the series CALIMA, MISTRAL or ECHO can be extended.

Scope of delivery

UP-radio gong
Frames
Cover:
MISTRAL radio bell button SE03.

Hints

Note: Walls, doors, metal parts, etc. can significantly reduce the range! Do not clean the high-gloss surface with a microfiber cloth. Do not use cleaning agents. Wipe off mist.
