Name: GW Instek 01RF1300A0GS GRF-1300A Measurement adapter 1 pc(s)
Brand: GW Instek
SKU: 1321055
Availability: BackOrder

GW Instek 01RF1300A0GS GRF-1300A Measurement adapter 1 pc(s)-0

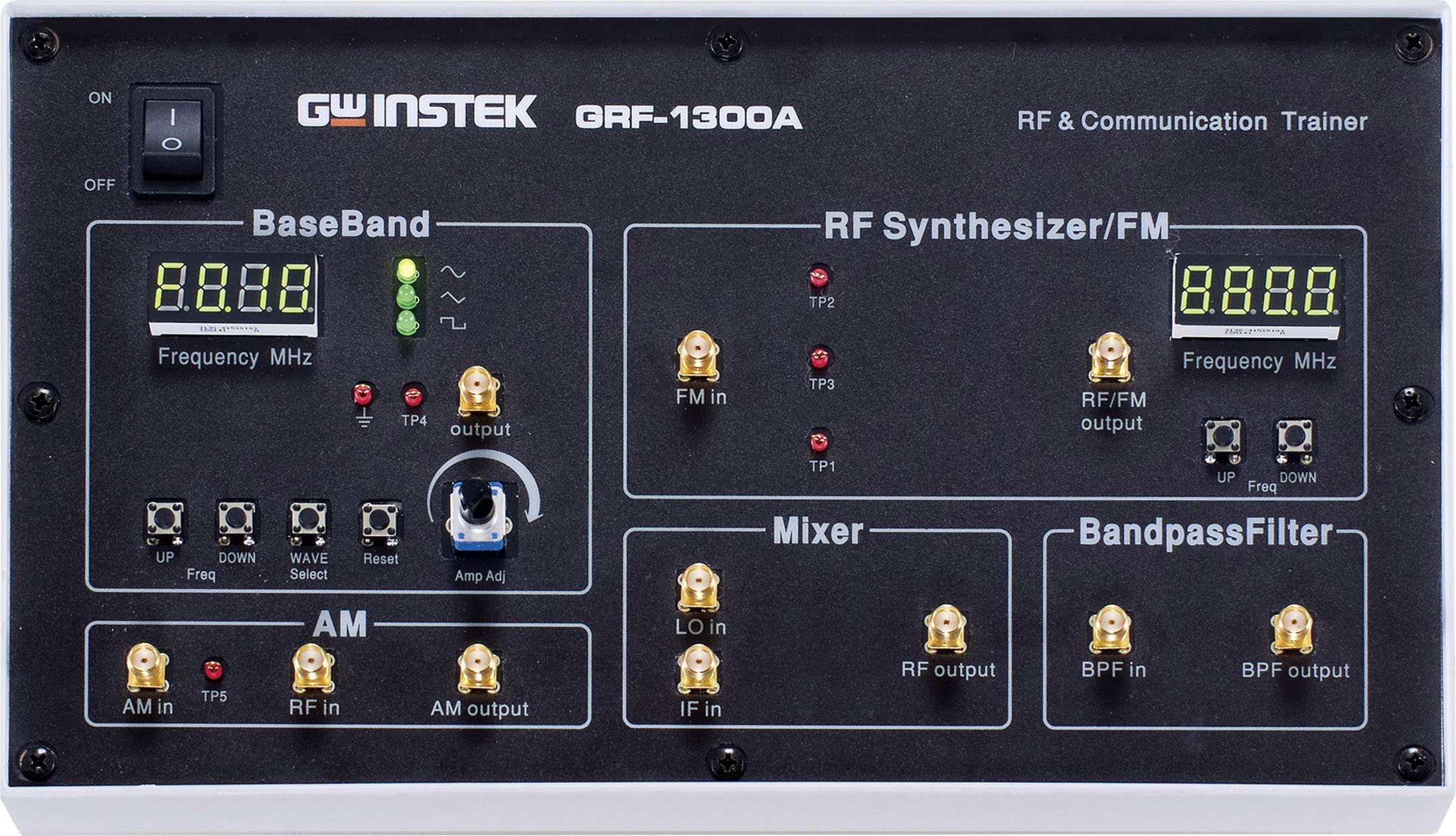

Measurement Device for RF & Communication. Contains areas for Baseband, RF Synthesiser/FM, Mixer and Bandpass Filter with various switches and connections.

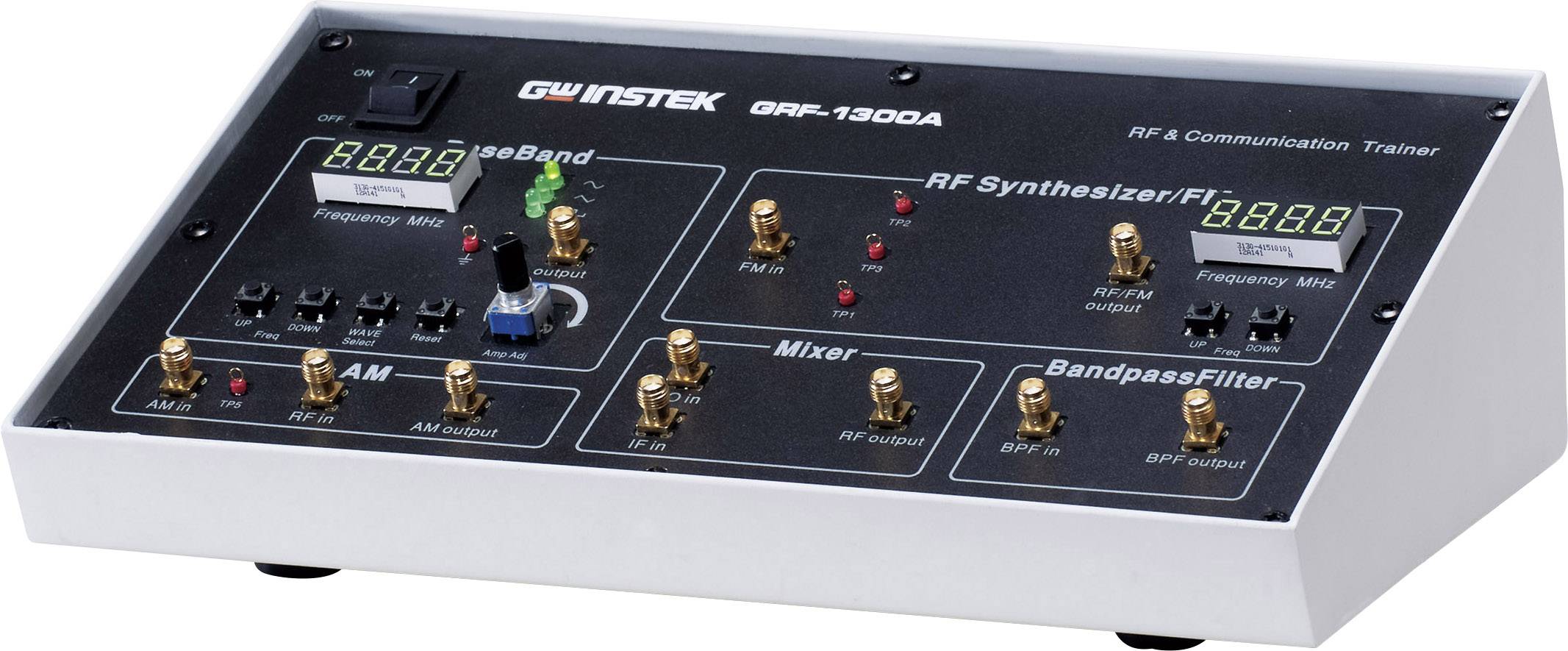

'GPR-1300A' RF and Communications Trainer with operating controls and display for frequency band, synthesiser, mixer and bandpass filter.

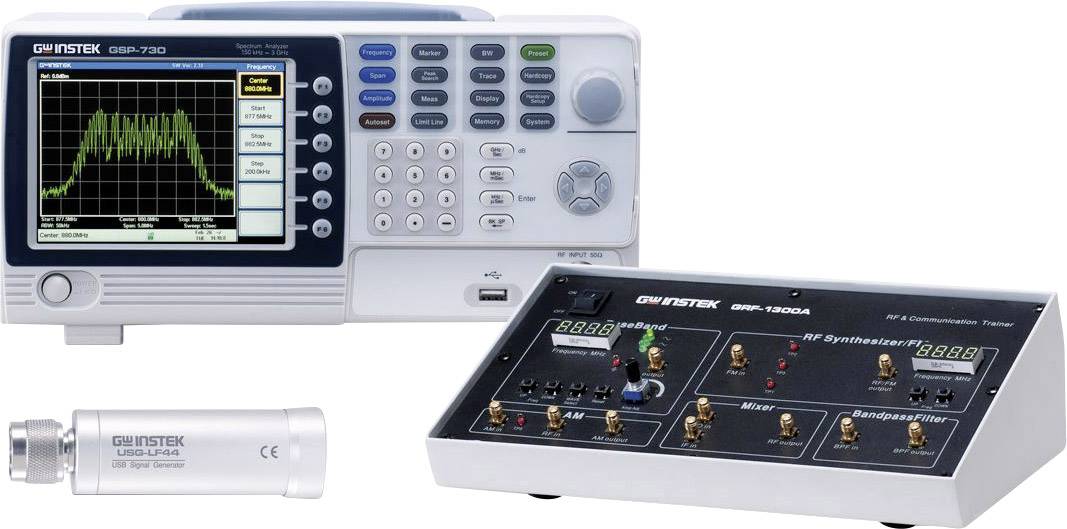

Measuring device for radio frequency analysis with a screen displaying a spectral diagram. Beside it, an RF communications test box.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 665.00 / piece)

€ 665.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

HF-Trainingskit GRF-1300 A

Sine, triangle, square wave base band signal:
Frequenrbereich: 0.1 - 3 MHz
HF frequency: 870-920 MHz
The & FM modulation
Mixer & 2.4 GHz band-pass filter
5 programmable on/off switches and 5 test points for simulating of 8 error conditions for controlled troubleshooting
USB interface

Technical specifications

Product type: Measurement adapter

Compatible with: GW Instek

Compatible with: GW Instek GSP-730

Type: GRF-1300A

Documents & Downloads

Datasheet

Datasheet 1321055 GW Instek 01RF1300A0GS GRF-1300A Measurement adapter 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1321055 GW Instek 01RF1300A0GS GRF-1300A Measurement adapter 1 pc(s)

Description

GRF-1300 A, as optional accessories for the GSP-730, is a trainer for basic RF communications experiments.
The GRF-1300 A RF Trainingskit not only offers all the functions of the GRF-1300 RF-Training Kits, but is extended also with mixer and band-pass filter. Users can view the properties of the mixer and a better understanding of the band-pass filter by a scalar network analyzer measurements by the combination of GSP-730 spectrum analyzer, GRF-1300 A RF Communications Trainers and USG signal generator is generated.
The combination of the USG signal generator and GRF-1300 A mixer function can 2.4 GHz AM and FM-modulation signals. The GRF-1300 A band-pass filter, the output signals by filtering out the vibrations and interference caused by mixer output signals are generated, clean up.
