Name: GW Instek GPM-8320-60 (CE) GPIB/DA12 Network diagnostics 3-phase Power testing, Graphic display, Data logger
Brand: GW Instek
SKU: 3439052
Availability: BackOrder

GW Instek GPM-8320-60 (CE) GPIB/DA12 Network diagnostics 3-phase Power testing, Graphic display, Data logger-0

Image similar

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 4,825.00 / piece)

€ 4,825.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

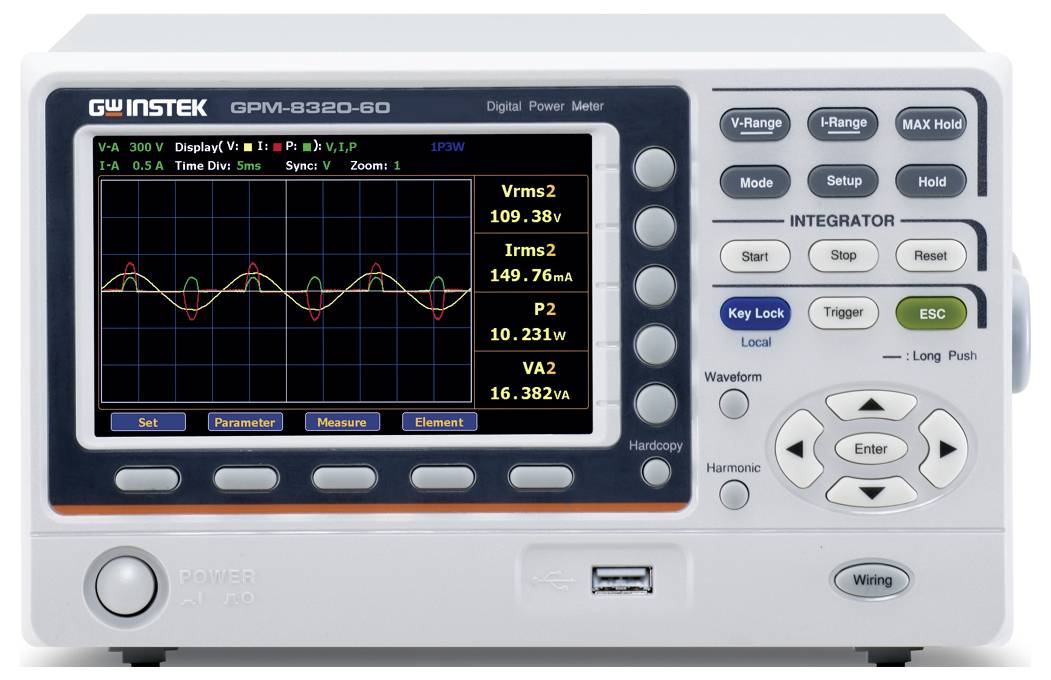

GW Instek GPM-8320-60 (CE) GPIB/DA12 Digital Power Meter

High Current & Precision: Direct current measurement up to 60 A (guaranteed) with an accuracy of ±(0.1% of reading+0.05% of range).
Wide bandwidth: Measures DC and 0.1 Hz to 100 kHz.
Versatile display: 5" TFT LCD display with 5-digit readings and 25 power measurement parameters.
Analysis functions: Waveform display (V/I/P) and harmonic analysis up to 50 order (IEC61000-4-7 compliant).
Flexible wiring: Supports 1P3W, 3P3W, 3P4W, 3V3A modes.
Data acquisition: Internal memory for 10,000 data logs.
Extensive interfaces: Standard RS-232C, USB (device/host), LAN; optional GPIB and digital I/O (DA12).
Automated measurement: Automatic range switching for integration measurements and adjustable range changes

Technical specifications

Bandwidth (voltage/current): DC, 0.1 Hz to 100 kHz
Sampling rate 300 kHz
Display resolution 5 digits
Input resistance (voltage): Approx. 2 MΩ
Input resistance (power, direct input): Approx. 1.65 MΩ
Maximum input (voltage): 1000 V
Maximum input (current): 70 A (peak 150 A), guaranteed specification 65 A for direct input 1A to 60A
Harmonic analysis: Yes, to 50 th order
Total harmonic distortion: Yes
Measurement parameters: Vrms, VMN, Vdc, Vac, IRMS, IDC, IAC, P, VA, VAr PF, CFI, CFV, DEG, IHZ, Hz, V+PK, V-PK, I+PK, I-PK, P+PK, P-PK, THDI, THDV, MATH, MCR, EFI
Waveform display: V (voltage), I (current), P (power)
External current sensor input: Yes (EXT1/EXT2)
Internal memory: 10,000 data logs
Automatic range switching: For integration mode
Display refresh rate 0.1s/0.25s/0.5s/1s/2s/5s/10s/10s/20s
3 or 6 (6A) can be selected

Product type: Network diagnostics

Reading category: CAT II 600 V

Display (details): 5" TFT LCD (800x480)

Phase detection: Yes

PG recognition: No

: Manufacturer's standards (no certificate)

Power supply (details): AC 100 V to 240 V, 50 Hz to 60 Hz; Consumption Max. 35 VA

Dim: (L x W x H) 40.25 x 22 x 13.2 cm

Weight: 3.4 kg

Measurement type: 3-phase

Features: Power testing
Graphic display
Data logger

Width: 22 cm

Height: 13.2 cm

Length: 40.25 cm

Interfaces: LAN
RS232C
USB host
USB device

Documents & Downloads

Datasheet

Datasheet 3439052 GW Instek GPM-8320-60 (CE) GPIB/DA12 Network diagnostics 3-phase Power testing, Graphic display, Data logger

User & Safety Instructions

User & Safety Instructions 3439052 GW Instek GPM-8320-60 (CE) GPIB/DA12 Network diagnostics 3-phase Power testing, Graphic display, Data logger

Description

The GW Instek GPM-8320-60/GPM-8330-60 models are extended versions of the existing three-phase power meter GPM-8320/GPM-8330. The GPM-8320-60 has 2 input elements, while the GPM-8330-60 3 provides input elements. The added "-60" symbol means that the maximum direct input current can reach 70 A (60 A is the guaranteed specification), WAS not only improves high-current power measurement applications, but also saves costs for current transformers compared to the existing models.

These models have a DC, 0.1 Hz to 100 kHz measuring bandwidth and are equipped with 16-bit A/D converters and a 300 kHz sampling rate. A 5-inch TFT LCD display, 5-digit measurements, 25 different power measurement parameters and high-precision measurement capabilities are also available.

The GPM-8320-60/GPM-8330-60 models also provide waveform display (voltage/current/power), integration measurement, multi-order harmonics measurement and analysis (50 Hz / 60 Hz measurement meets IEC61000-4-7), external sensor input terminals, and a variety of communication interfaces. These features enable users to measure performance clearly, conveniently, and accurately, making them the most functional and cost-effective power meters in their category.

This text is machine translated.
