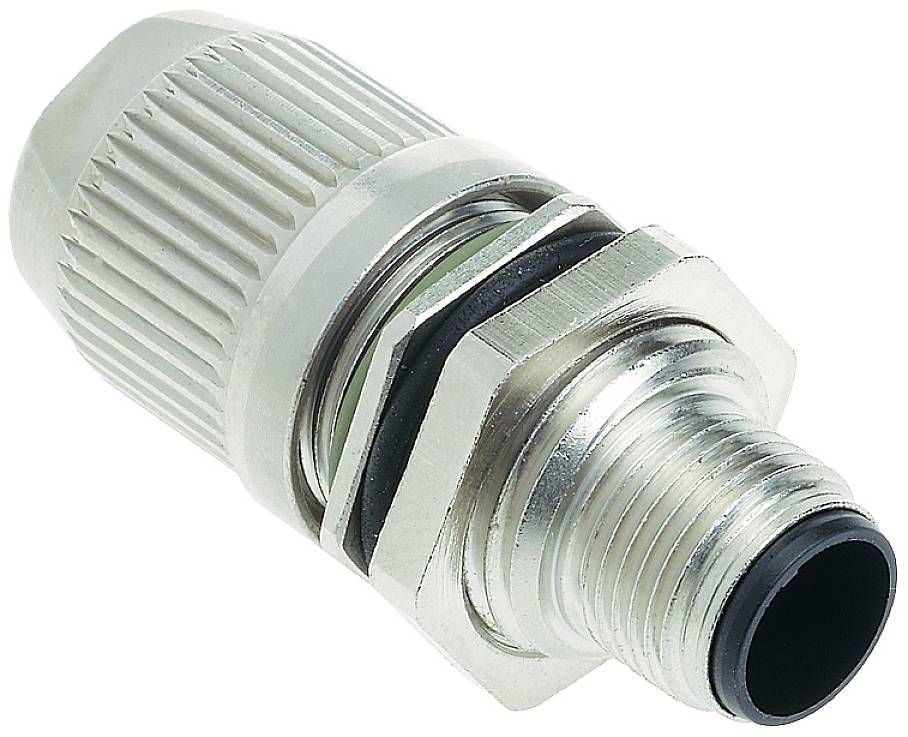

HARTING 21038411525 Connector Feedthru Total number of pins: 5 1 pc(s)
Product type
Connector
Connector type
Feedthru
Total no. of pins
5
Connection
Crimp
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 53.99 / piece)
€ 53.99
incl. VAT
14-day return policy included
Technical specifications
- Panel thickness: 2.5 mm - 4.5 mm
- Dimensioning surge voltage: 1.5 kV
- Shielding: shielded
- Gender: Pen
- Resistance: ≤ 10 mΩ
- Pollution level 3
- Tightening torque: 2 Nm lock nut
- Mating cycles: ≥ 500
- Over voltage category III
- Material application: Polyamide (PA)
- Wire outer diameter: ≤ 2.3 mm
- Type
21038411525
- Product type
Connector
- Connector type
Feedthru
- Total no. of pins
5
- Connection
Crimp
- Content
1 pc(s)
- Max. temperature
+85 °C
- Nominal current
4 A
- Min. temperature
-40 °C
- Nominal current - rounded value
4 A
- Seal
Screw-type locking
- Nominal voltage
60 V
- Mounting type
Rear wall installation
- Cable Ø (max.)
8.8 mm
- Cable Ø up to
4.5 mm
- Case material
Diecast zinc
26 - 18
- No. of contact sizes
5
- Code
B
- Weight
49.7 g
- Manufacturer part #
21038411525
- Cable Ø range
4.5 - 8.8 mm
- Number of pins
5
- max. cross section
0.75 mm²
- Min. cross section
0.14 mm²
- Cross-section range
0.14 - 0.75 mm²
- RoHS-compliant
Yes
- Feature
B-coded
IP65
IP67
- UKCA
yes
