Hebotec KBHP 6 - 20 Cable mount L-section rail 3010-004C Bundle Ø range 6 up to 20 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable mount
Fastening method
L-section rail
Bundle diameter (min.)
6 mm
Bundle Ø (max.)
20 mm
Material
Polyamide (fibreglass-reinforced)
Polypropylene
Velours
PA
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 10.92
30
6% = € 0.61
€ 10.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Multiple: 10
Total (€ 10.92 / piece)
€ 109.20
plus VAT.
Highlights & Details
Hebotec 3010-004C socket
- Cable mount
- L-section rail
- Bundle Ø range 6 up to 20 mm
Technical specifications
- Component 1: Socket
- Component 2: Velcro tape
- Mounting hole 1 M5
- Length: 75.4 mm.
- Width 34.1 mm
- Height: 14.6 mm
- Material 1: Glass-fiber reinforced polyamide
- Material 2: Polypropylene;Velours PA
- Min 6 mm shield diameter
- Max. Diameter 20 mm
- Product type
Cable mount
- Fastening method
L-section rail
- Bundle Ø range
6 up to 20 mm
- Bundle diameter (min.)
6 mm
- Bundle Ø (max.)
20 mm
- Material
Polyamide (fibreglass-reinforced)
Polypropylene
Velours
PA
- Content
1 pc(s)
- Manufacturer part #
3010-004C
- Width
34.1 mm
- Height
14.6 mm
- Length
75.4 mm
- Type
KBHP 6 - 20
Documents & Downloads
Datasheet
Datasheet 3411377 Hebotec KBHP 6 - 20 Cable mount L-section rail 3010-004C Bundle Ø range 6 up to 20 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3411377 Hebotec KBHP 6 - 20 Cable mount L-section rail 3010-004C Bundle Ø range 6 up to 20 mm 1 pc(s)
Description

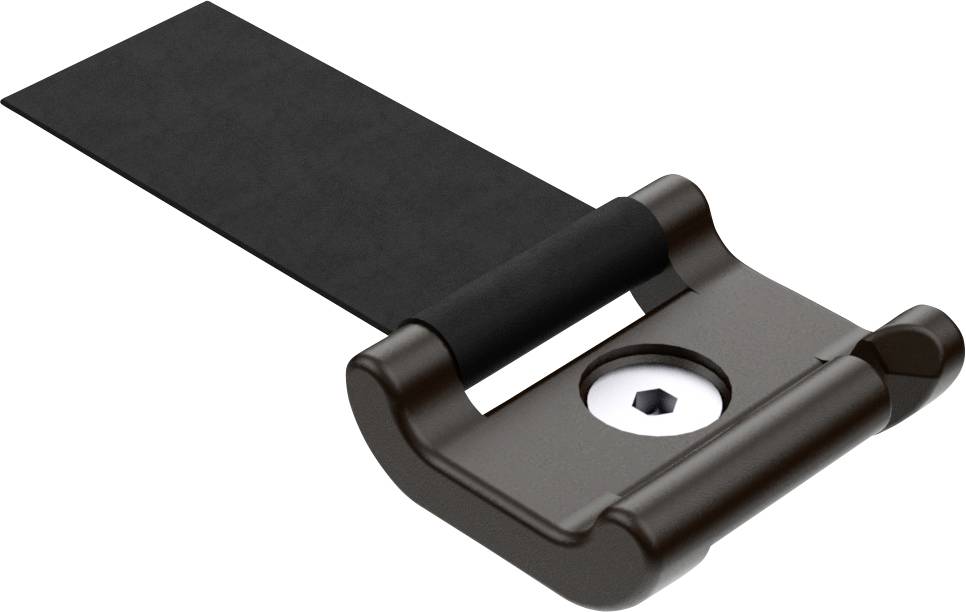

Velcro tape holder for profile nut 10 mm, clamping range 6 - 20 mm, self-extinguishing in accordance with UL94-V2, width 20 mm, color black
