HellermannTyton 161-41201 SBPE9-PE-BK-30M Spiral Binding Cable Protection Black
EAN:
Part number:
Item no:
Product type
Spiral tube
Bundle Ø (max.)
100 mm
Factory colour
Black
Material
Polyethylene (PE)
Dim
(Ø) 9 mm
Datasheet (PDF)
Number
Total (1 m = € 2.13)
€ 63.86
plus VAT.
HellermannTyton 161-41201 SBPE9-PE-BK-30M Spiral Binding Cable Protection Black
Highlights & Details
- For standard applications
Our service for you
Technical specifications
- Fire protection property: UL94 HB
- Product type
Spiral tube
- Bundle Ø (max.)
100 mm
- Factory colour
Black
- Material
Polyethylene (PE)
- Dim
(Ø) 9 mm
- Bundle diameter (min.)
10 mm
- Bundle Ø range
10 up to 100 mm
- Manufacturer part #
161-41201
- Content
30 m
- Features
Halogen-free
Reusable
- RoHS-compliant
Yes
- Max. temperature
+90 °C
- Min. temperature
-60 °C
- Type
SBPE9-PE-BK-30M
- (Ø)
9 mm
- Material (details)
Polyethylene (PE)
- Type
Packed
- Fire protection properties
In accordance with UL94 HB.
- Type
SBPE9
- Operating temperature
-60 - +90 °C, short-term up to +120 °C
- Temperature range
-60 - +90 °C, short-term up to +120 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 547471 HellermannTyton 161-41201 SBPE9-PE-BK-30M Spiral Binding Cable Protection Black
User & Safety Instructions
User & Safety Instructions 547471 HellermannTyton 161-41201 SBPE9-PE-BK-30M Spiral Binding Cable Protection Black
Description

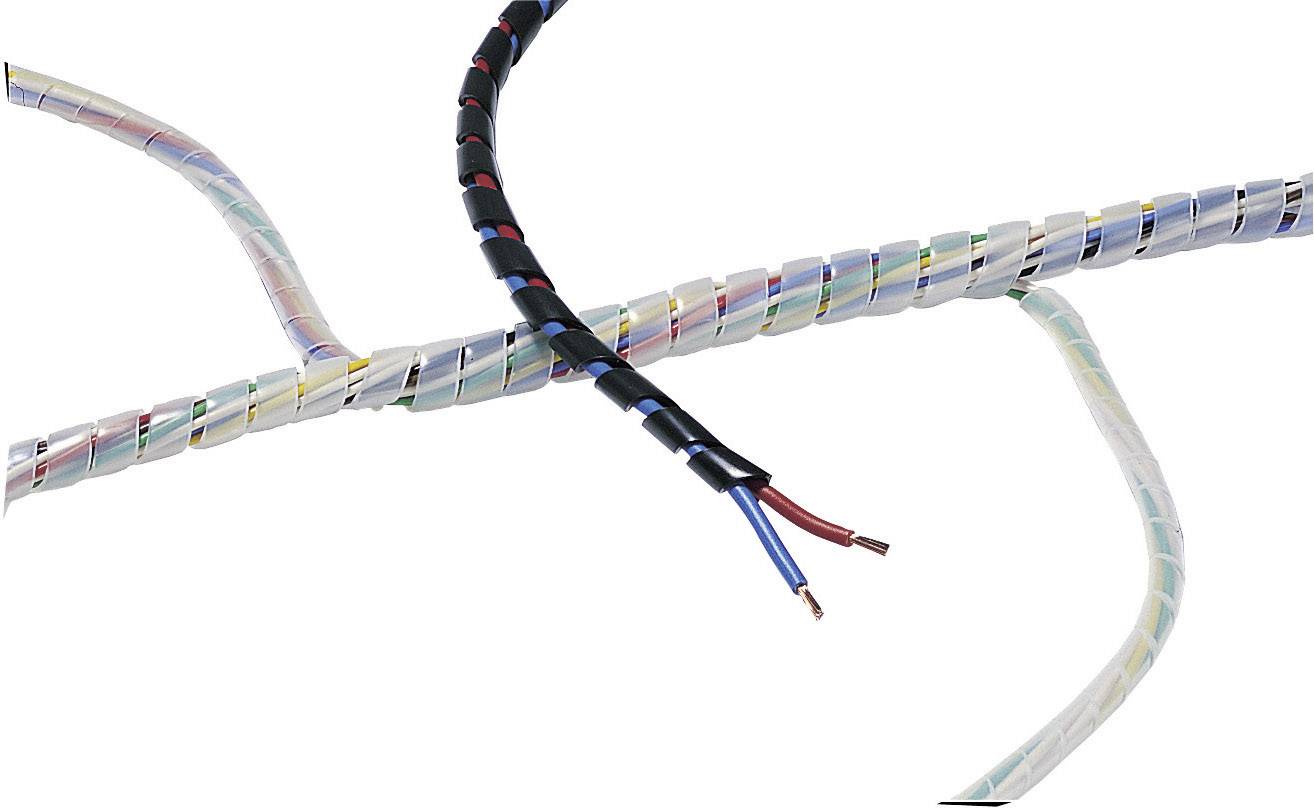

Spiral hoses can be wound around already mounted cable owing to their helial structure. Individual lines can be executed at all points. HellermannTyton spiral hoses are available in different sizes, colours and materials. For small requirements spiral hoses made of polyethylene are available in 5 m lengths.
Spiral hose - Type SBPE:
• made of polyethylene (PE) with fire-protection class UL94 HB for standard applications (e.g. in the cable fabrication as well as in building switching cabinets.
• Fire-protection property UL94 HB conforms to the approval for slow burning of this material type.
Spiral hose - Type SBPE:
• made of polyethylene (PE) with fire-protection class UL94 HB for standard applications (e.g. in the cable fabrication as well as in building switching cabinets.
• Fire-protection property UL94 HB conforms to the approval for slow burning of this material type.
