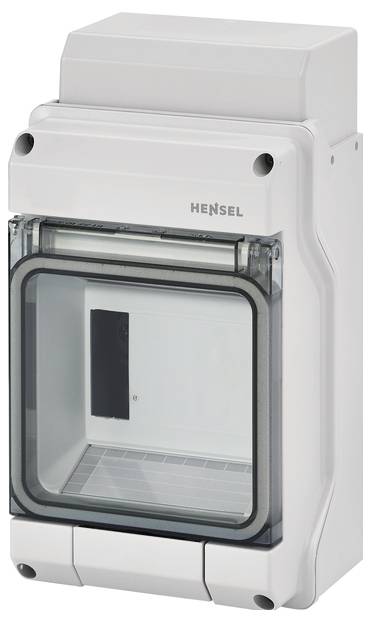

Name: Hensel 61000734 KV 1504 Switchboard cabinet Content 1 pc(s)
Brand: Hensel
SKU: 1826923
Availability: InStock

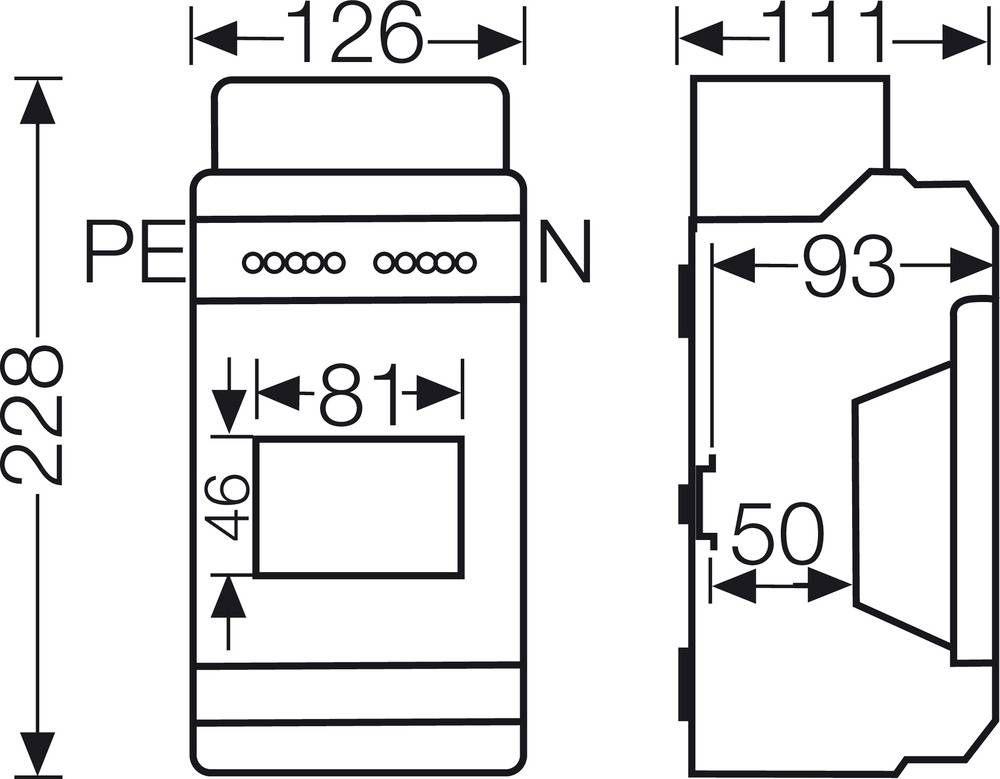

Technical drawing of a rectangular device with dimensions: 126x228 mm front view, 111x93 mm side view. Display field of 81x46 mm.

1/2

Product type

Switchboard cabinet

No. of partitions

4.5

No. of rows

Width

126 mm

Height

228 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

6 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 31.99 / piece)

€ 31.99

incl. VAT

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Hensel small distributor KV 1504

4.5 division units: 1 x 4.5 x 18 mm
1-row
The PE/N number x cross-section 2 x 25 mm², 4 x 4 mm² Cu, FIXCONNECT® plug-in terminal technology

Technical specifications

Product type: Switchboard cabinet

No. of partitions: 4.5

with PE and N terminals: Yes

No. of rows: 1

Factory colour: Grey-white (RAL 7035)

Width: 126 mm

Height: 228 mm

Dim: (W x H x D) 126 x 228 x 111 mm

Depth: 111 mm

Content: 1 pc(s)

Wireless charging: No

Weight: 0.64

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1826923 Hensel 61000734 KV 1504 Switchboard cabinet Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1826923 Hensel 61000734 KV 1504 Switchboard cabinet Content 1 pc(s)

Description

Small distributor KV 1504

This text is machine translated.

Features

For the installation of devices with snap-on mounting on DIN rail, top hat 35 mm
With transparent cover, sealable
Lock for door and plombierset see accessories
With cable entry panel
The cut-out device removable
With integrated, elastic sealing membranes for cable entry
Protection class IP 54
Color: gray, RAL 7035
Rated insulation voltage Ui = 400V a.c.
Power output capacity Pde = 12 W at 30K according to EN 60670-24
