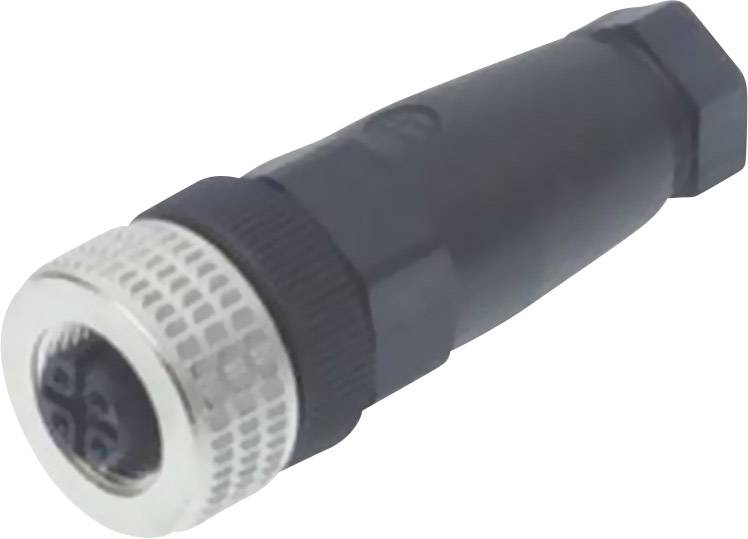

A black, cylindrical connector with a metal, knurled threaded coupling, suitable for industrial applications.

A black, cylindrical connector with a metal, knurled threaded coupling, suitable for industrial applications.

Technical drawing of a cylindrical component with dimensions: length ≈60mm, diameter 20mm, M12 thread, P9 fit.

1/2

Image similar

Hirschmann

Product type

Sensor/actuator connector

Connector type

Socket, straight

Connector standard

Sensor connector

Connection side A

M12 socket, straight

Connection side B

Customisable

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri, 8 Jan 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Packaging units

Number (Package size 100 pc(s))

Set(s)

Total (€ 7.55 / piece)

€ 755.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type: ELKA 4012 PG9

Product type: Sensor/actuator connector

Connector type: Socket, straight

Connector standard: Sensor connector

Connection side A: M12 socket, straight

Connection side B: Customisable

No. of pins: 4

Nominal voltage: 250 V

Nominal current: 4 A

Nominal current - rounded value: 4 A

Connector cross-section (max.): 0.75 mm²

Cross-section (sensor/actuator wiring): 0.75 mm²

Connection: Screw terminal

Factory colour: Black

Thread type connection side: M12

Thread type (wiring and installation): PG9

: IP67

Min. temperature: -25 °C

Max. temperature: +90 °C

Seal type: Screw-on

Manufacturer part #: 933 169-100-100

Industrial packaging: Yes

Content: 100 pc(s)

Cable Ø (max.): 8 mm

Cable Ø up to: 6 mm

Cable Ø range: 6 - 8 mm

Nominal voltage (details): 250 V

Nominal current (details): 4 A

Contamination level: 3

Connection: Screw connector

Temperature range: -25 - +90 °C

Seal: Soldered connection

Variants(All information include VAT, plus shipping costs)

Connection side A

Connector type

Hirschmann 933 169-100-100 Sensor/actuator connector M12 Socket, straight No. of pins (RJ): 4 100 pc(s)

Hirschmann 933 169-100-100 Sensor/actuator connector M12 Socket, straight No. of pins (RJ): 4 100 pc(s)

Item no:1718519

Dispatches on Fri, 8 Jan 2027

Conrad Electronic

This article

M12 socket, straight

Socket, straight

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 755.00^*

Hirschmann 933 098-100-1 ELST 4012 PG7 Contact Box And Connector, For M12 Connection Black

Hirschmann 933 098-100-1 ELST 4012 PG7 Contact Box And Connector, For M12 Connection Black

Item no:158013

Fast track dispatch on Tue 3 Nov

510 Piece(s)Conrad Electronic

M12 plug, straight

Plug, straight

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 16.99^*

Hirschmann 933 098-100-100 Sensor/actuator connector M12 Plug, straight No. of pins (RJ): 4 100 pc(s)

Hirschmann 933 098-100-100 Sensor/actuator connector M12 Plug, straight No. of pins (RJ): 4 100 pc(s)

Item no:1718472

Dispatches on Fri, 8 Jan 2027

Conrad Electronic

M12 plug, straight

Plug, straight

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 755.00^*

Hirschmann 933 139-100-1 ELKA 4012 PG7 Contact Box And Connector, For M12 Connection Black

Hirschmann 933 139-100-1 ELKA 4012 PG7 Contact Box And Connector, For M12 Connection Black

Item no:735174

Fast track dispatch on Tue 3 Nov

340 Piece(s)Conrad Electronic

M12 socket, straight

Socket, straight

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 16.99^*

Hirschmann 933 139-100-100 Sensor/actuator connector M12 Socket, straight No. of pins (RJ): 4 100 pc(s)

Hirschmann 933 139-100-100 Sensor/actuator connector M12 Socket, straight No. of pins (RJ): 4 100 pc(s)

Item no:1718518

Dispatches on Fri, 8 Jan 2027

Conrad Electronic

M12 socket, straight

Socket, straight

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 755.00^*

Hirschmann 933 162-100-1 ELST 4012 PG9 Contact Box And Connector, For M12 Connection Black

Hirschmann 933 162-100-1 ELST 4012 PG9 Contact Box And Connector, For M12 Connection Black

Item no:735228

Fast track dispatch on Tue 3 Nov

91 Piece(s)Conrad Electronic

M12 plug, straight

Plug, straight

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10.99^*

Hirschmann 933 162-100-100 Sensor/actuator connector M12 Plug, straight No. of pins (RJ): 4 100 pc(s)

Hirschmann 933 162-100-100 Sensor/actuator connector M12 Plug, straight No. of pins (RJ): 4 100 pc(s)

Item no:1718527

Dispatches on Fri, 8 Jan 2027

Conrad Electronic

M12 plug, straight

Plug, straight

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 755.00^*

Hirschmann 933 169-100-1 ELKA 4012 PG9 Contact Box And Connector, For M12 Connection Black

Hirschmann 933 169-100-1 ELKA 4012 PG9 Contact Box And Connector, For M12 Connection Black

Item no:735188

Fast track dispatch on Tue 3 Nov

428 Piece(s)Conrad Electronic

M12 socket, straight

Socket, straight

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11.99^*

Documents & Downloads

Datasheet

Datasheet 1718519 Hirschmann 933 169-100-100 Sensor/actuator connector M12 Socket, straight No. of pins (RJ): 4 100 pc(s)

User & Safety Instructions

User & Safety Instructions 1718519 Hirschmann 933 169-100-100 Sensor/actuator connector M12 Socket, straight No. of pins (RJ): 4 100 pc(s)

Description

Wire held by spring cage. Connectable cables Ø 6 - 8 mm / max. 0.5 mm²/ (AWG 19)

This text is machine translated.

Scope of delivery

Screws

Description

Wire held by spring cage. Connectable cables Ø 6 - 8 mm / max. 0.5 mm²/ (AWG 19)

This text is machine translated.

Scope of delivery

Screws
