Hirschmann 933 393-001-1 ELST 4408 RV KM Device Connector For M8-sensors Metal, Silver (metallic)

A metallic plug with multiple golden pins. Suitable for electrical connections and industrial applications.

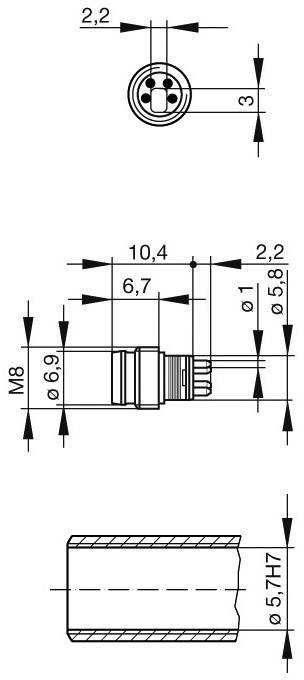

Technical drawing of a connector with dimensions: diameter at top 2.2 mm, length 10.4 mm, thread M8, bore 5, H7.
1/2
Product type
Sensor/actuator built-in connector
Connector type
Plug, mount
Connector standard
Sensor connector
Connection side A
M8 plug, built-in
Connection side B
Customisable
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
177 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 3.49 / piece)
€ 3.49
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Compact shape
Type

ELST 4408 RV KM

Product type

Sensor/actuator built-in connector

Connector type

Plug, mount

Connector standard

Sensor connector

Connection side A

M8 plug, built-in

Connection side B

Customisable

No. of pins

4

Nominal voltage

60 V AC

60 V DC

Nominal current

3 A

Nominal current - rounded value

3 A

Connector cross-section (max.)

0.25 mm²

Connection

Soldering

Factory colour

Metal

Silver (metallic)

Thread type connection side

M8

Contact material

CuZn

Contact surface

Gold plated

Sensor/actuator connectivity fittings

Push-fit

IP67

Min. temperature

-25 °C

Max. temperature

+90 °C

Seal type

Screw-on

Manufacturer part #

933 393-001-1

Content

1 pc(s)

Type

Connector plug

Nominal voltage (details)

60 V/AC/DC

Nominal current (details)

3 A

Type

ELST 4408 RV KM

Contamination level

3

Cross section

0.25 mm²

Connection

Soldering

Contacts

gold-plated

Fitting type (details)

Tubular press fit mounting

Voltage

60 V

Temperature range

-25 - +90 °C

Seal

Rast-or screw coupling

Documents & Downloads

Datasheet

Datasheet 735068 Hirschmann 933 393-001-1 ELST 4408 RV KM Device Connector For M8-sensors Metal, Silver (metallic)

User & Safety Instructions

User & Safety Instructions 735068 Hirschmann 933 393-001-1 ELST 4408 RV KM Device Connector For M8-sensors Metal, Silver (metallic)

Description

For installing control circuits etc. in housings. Sockets complete with leads. Device plug complete with leads, snap-in or screw locking.

Scope of delivery

  • Mounting nuts not included. Please order separately under 73 51 66-LA.
