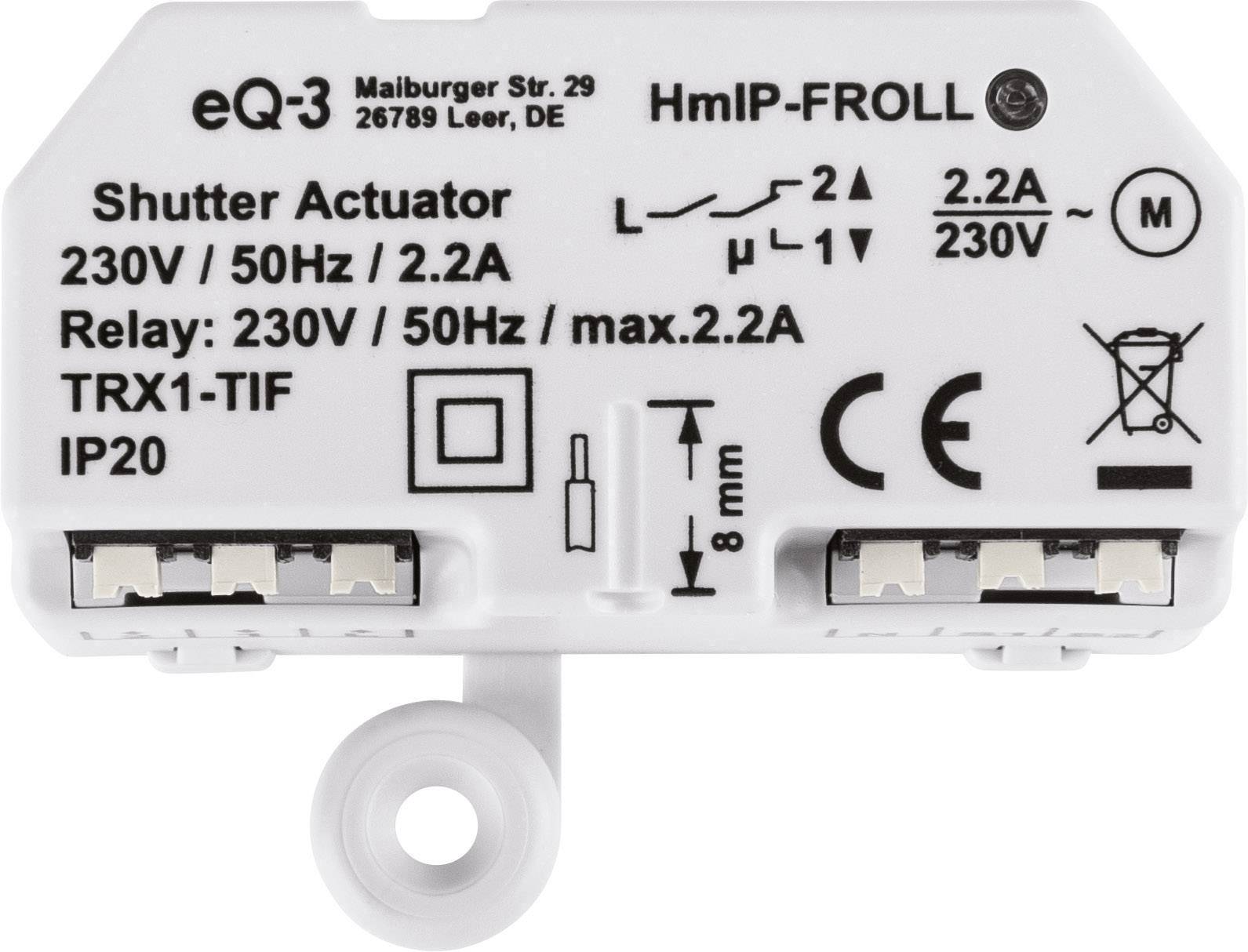

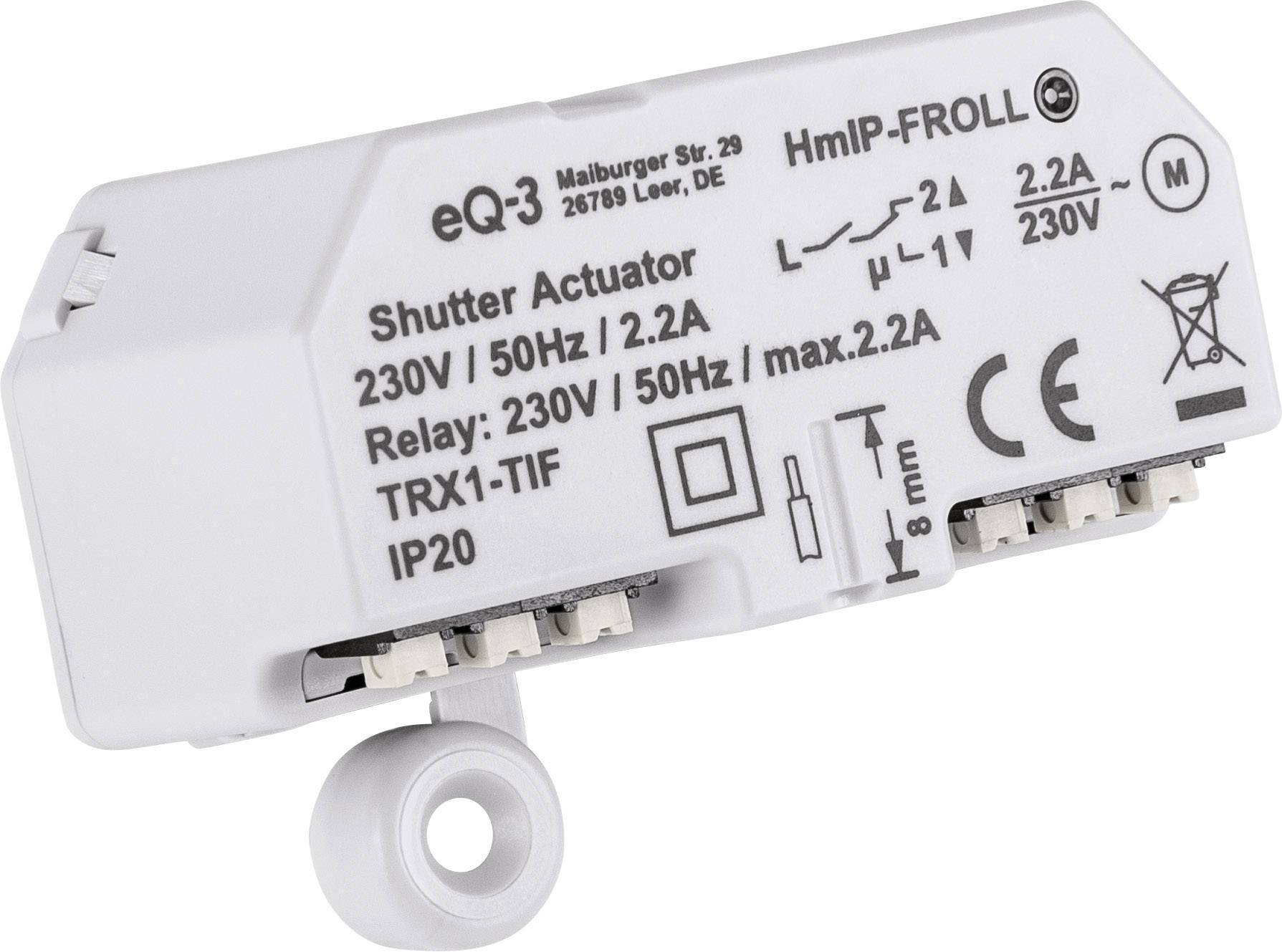

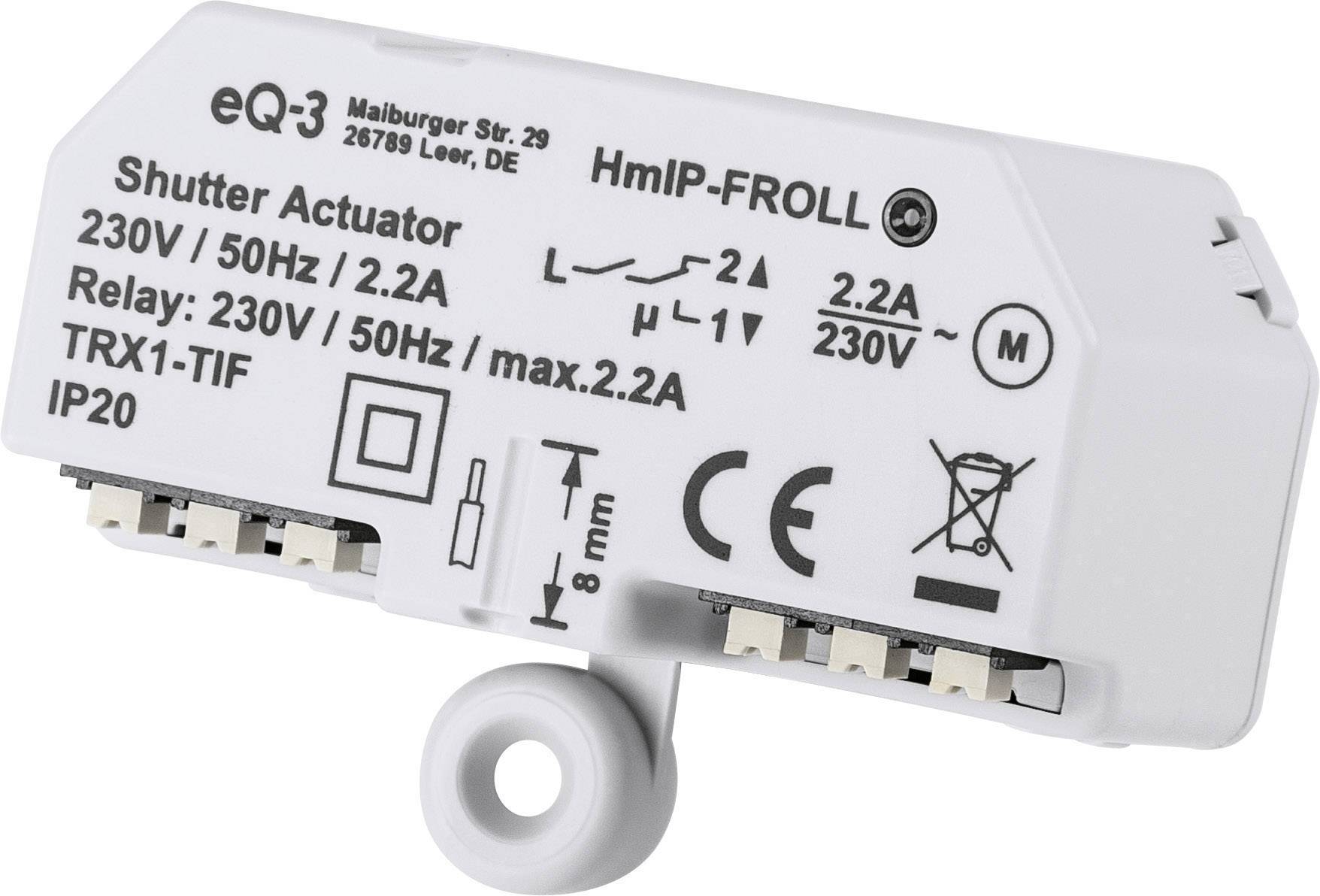

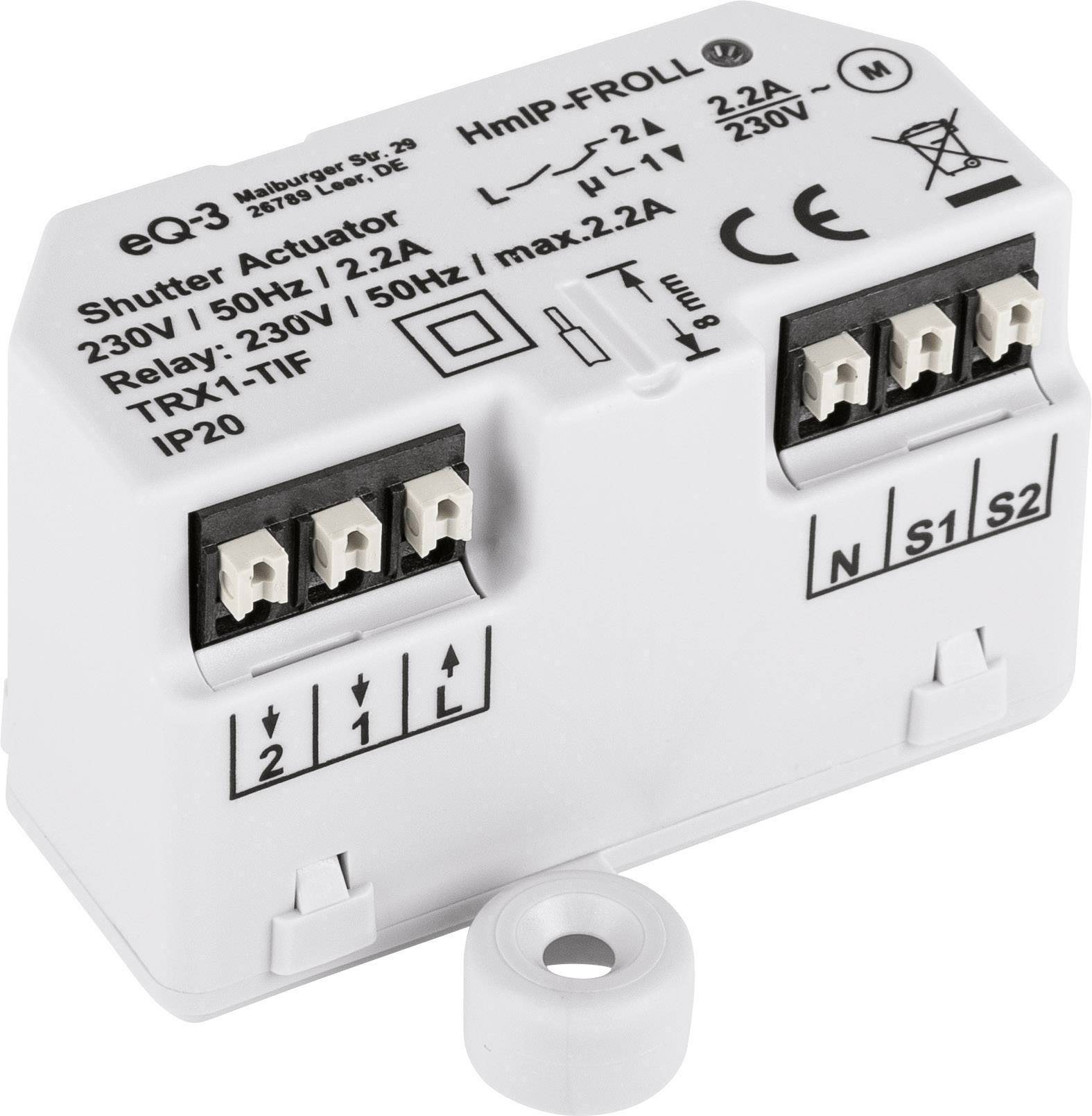

Homematic IP Wireless Blinds actuator HmIP-FROLL
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 55.99 / piece)
€ 55.99
incl. VAT
14-day return policy included
Highlights & Details
Homematic IP roller shutter actuator flush-mounted
- Actor for the automated control of roller shutter and blind
- Suitable for all conventional pipe motors
- Individual configuration of a week profile
Technical specifications
- Power consumption: 2.2 A (max.)
- Power consumption (standby mode): 0.2 W.
- Relay: 1 x changer, 1 x closer
- Product type
Blinds actuator
- Series
Homematic IP
Alexa (separate hub required)
- Transfer Standard (Smart Home)
Manufacturer-specific
- Max. switching capacity
500 VA
IP20
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Data transfer (Smart Home)
Wireless
- Frequency
868 MHz
180 m
- Mounting type
Flush mount
- Width
54 mm
- Height
33 mm
- Depth
41 mm
- Weight
0.1212
- Dim
(W x H x D) 54 x 33 x 41 mm
- Hub
Required
- Data exchange
Bidirectional (bi)
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1561424 Homematic IP Wireless Blinds actuator HmIP-FROLL
User & Safety Instructions
User & Safety Instructions 1561424 Homematic IP Wireless Blinds actuator HmIP-FROLL
Information
Information 1561424 Homematic IP Wireless Blinds actuator HmIP-FROLL
Description
The Homematic IP flush-mounted roller shutter actuator is part of Homematic IP Smart Home system and enables the automated control of roller shutter and blind via all common tubular motors.
The small actuator is in the flush-mounted socket and with the available tubular motor wired. After the start-up can individual week profiles, also depending on the sunrise and sunset, can be defined. The shutters, for example, working day after sunrise, but not before 06:30 up. In addition, a VU meter perr, storm and heat protection in combination with the Homematic IP App and other components is possible.
Once installed, the shadow dispenser via Homematic IP App, with the help of the Homematic IP remote control or a classic via two keys to use, the screwless terminals can be connected with.
Thanks to the low standby power consumption of up to 0.2 Watts, you have no need to think about the ongoing energy costs.
This text is machine translated.
The small actuator is in the flush-mounted socket and with the available tubular motor wired. After the start-up can individual week profiles, also depending on the sunrise and sunset, can be defined. The shutters, for example, working day after sunrise, but not before 06:30 up. In addition, a VU meter perr, storm and heat protection in combination with the Homematic IP App and other components is possible.
Once installed, the shadow dispenser via Homematic IP App, with the help of the Homematic IP remote control or a classic via two keys to use, the screwless terminals can be connected with.
Thanks to the low standby power consumption of up to 0.2 Watts, you have no need to think about the ongoing energy costs.
This text is machine translated.
Features
- Operation via voice
- Comfortable operation via HomeMatic IP APP or via HomeMatic IP remote control
- Individual configuration of a weekly profile enables time-controlled power-up and shutdown of shutters/awnings
- Comfortable control depending on sunrise and sunset
- Blocking, storm and heat protection in combination with HomeMatic IP APP and other components can be implemented
- Simple start-up thanks to automatic calibration run
- Suitable for all common tubular motors

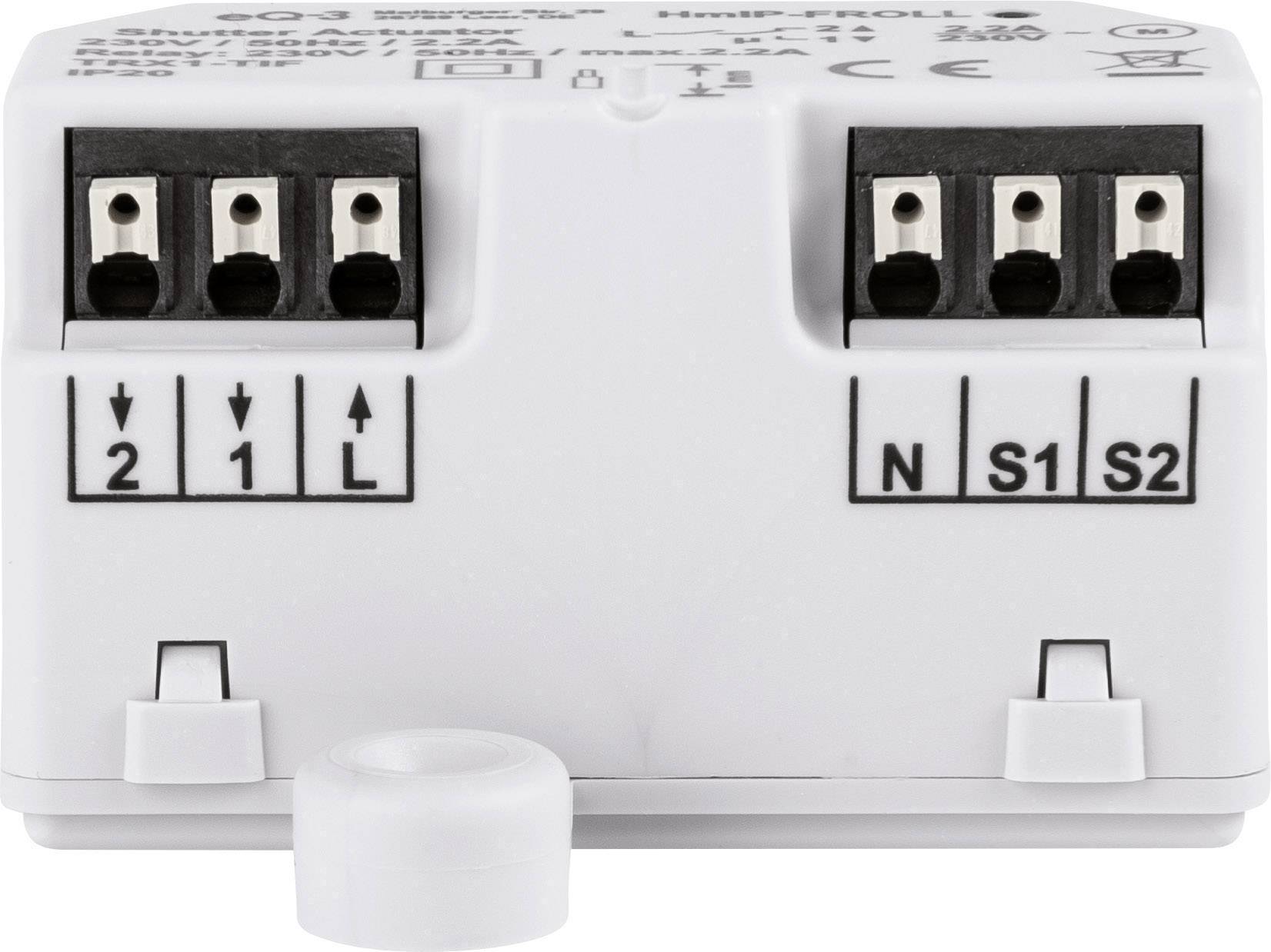

- Connection of two commercially available buttons via screwless terminals for local operation
- Compact design for easy installation in flush-mounted sockets or in surface-mounted distribution boxes (e.g. ELS Spelsberg Abox 25, IP65) for use in basements, for example
- A neutral conductor must be present for installation
- Can be operated with the access point in conjunction with the HomeMatic IP APP (without follow-up costs), the HomeMatic central CCU2 / CCU3 as well as with many partner solutions.
Scope of delivery
- Homematic IP roller shutter actuator
- User manual.
