Buy Honeywell Home Mt4-230-no Thermal actuator, passive (NO) thermal

A white electric radiator thermostat actuator with a visible red indicator that opens or closes the valve.

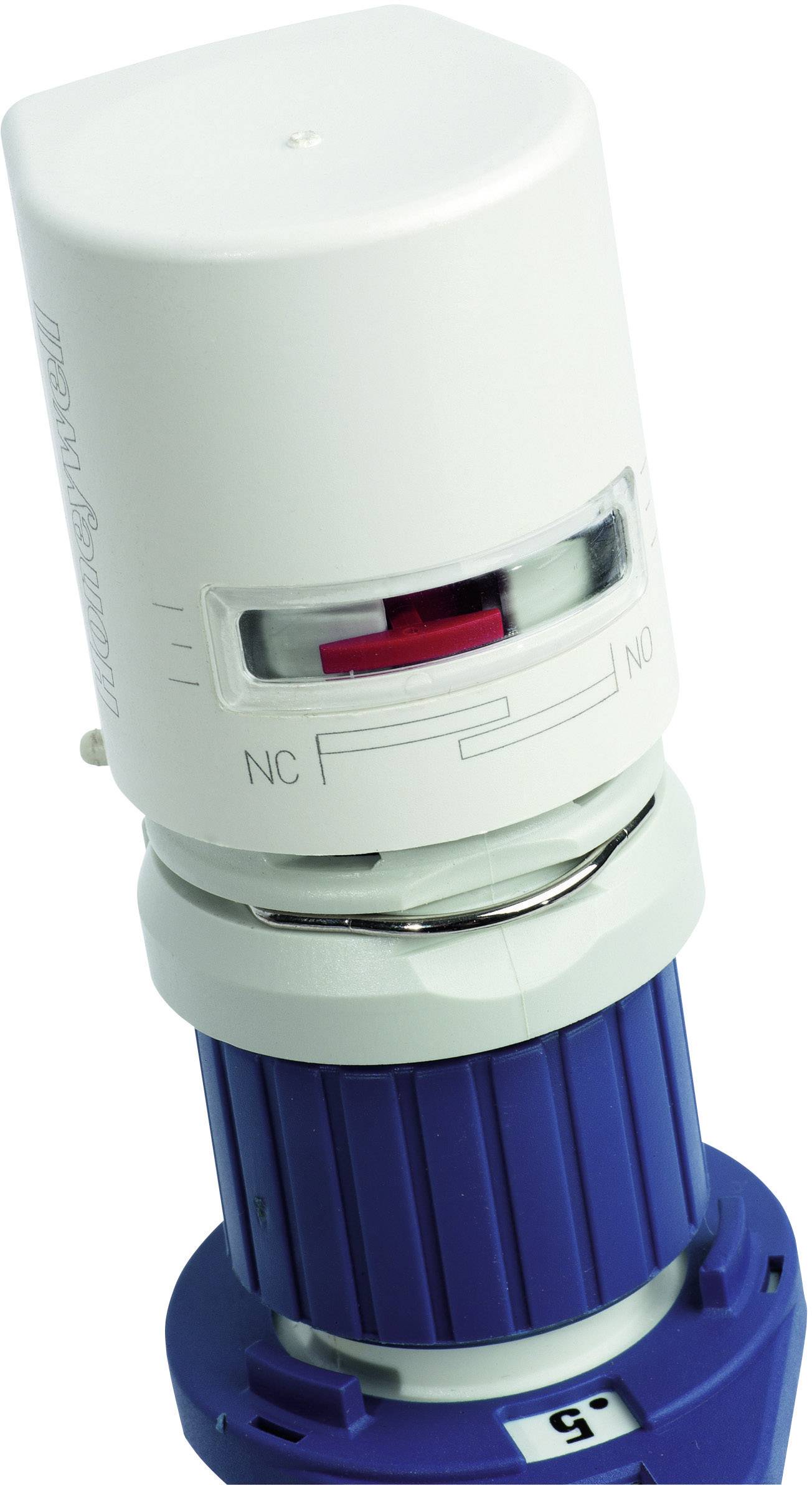

Thermostat head in white and blue with a red switch and 'NC' and 'NO' markings, used for controlling radiator temperature.

1/2

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

230 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 21.84 / piece)

€ 21.84

plus VAT.

Report legal concerns

Highlights & Details

Thermo-electric actuator open

Quick-lock
The plug-in cable
Water-proof casing

Technical specifications

Protection type IP 44
Ambient temperature 50 °C max.
Medium temperature: max. 120 °C
Humidity: max. 95%.

Product type: Thermal actuator, passive (NO)

Operation type: thermal

Stroke: 4 mm

Locking force: 90 N

Operating voltage: 230 V

Factory colour: White

Servo drive dims (L x W x H): 42 x 65 mm

Content: 1 pc(s)

Dim: (W x H x D) 110.0000 x 55.0000 x 70.0000 mm

Depth: 70.0000 mm

Height: 55.0000 mm

Width: 110.0000 mm

Weight: 200 g

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1205671 Honeywell Home Mt4-230-no Thermal actuator, passive (NO) thermal

User & Safety Instructions

User & Safety Instructions 1205671 Honeywell Home Mt4-230-no Thermal actuator, passive (NO) thermal

Description

These drives can be used for time-controlled two-point and pulse width-modulated control of underfloor heating. The actuator can be mounted easily and without tools in any installation position. Due to its compact design it is even in confined spaces.

This text is machine translated.
