Buy Sygonix Thermal actuator, passive (NC) thermal

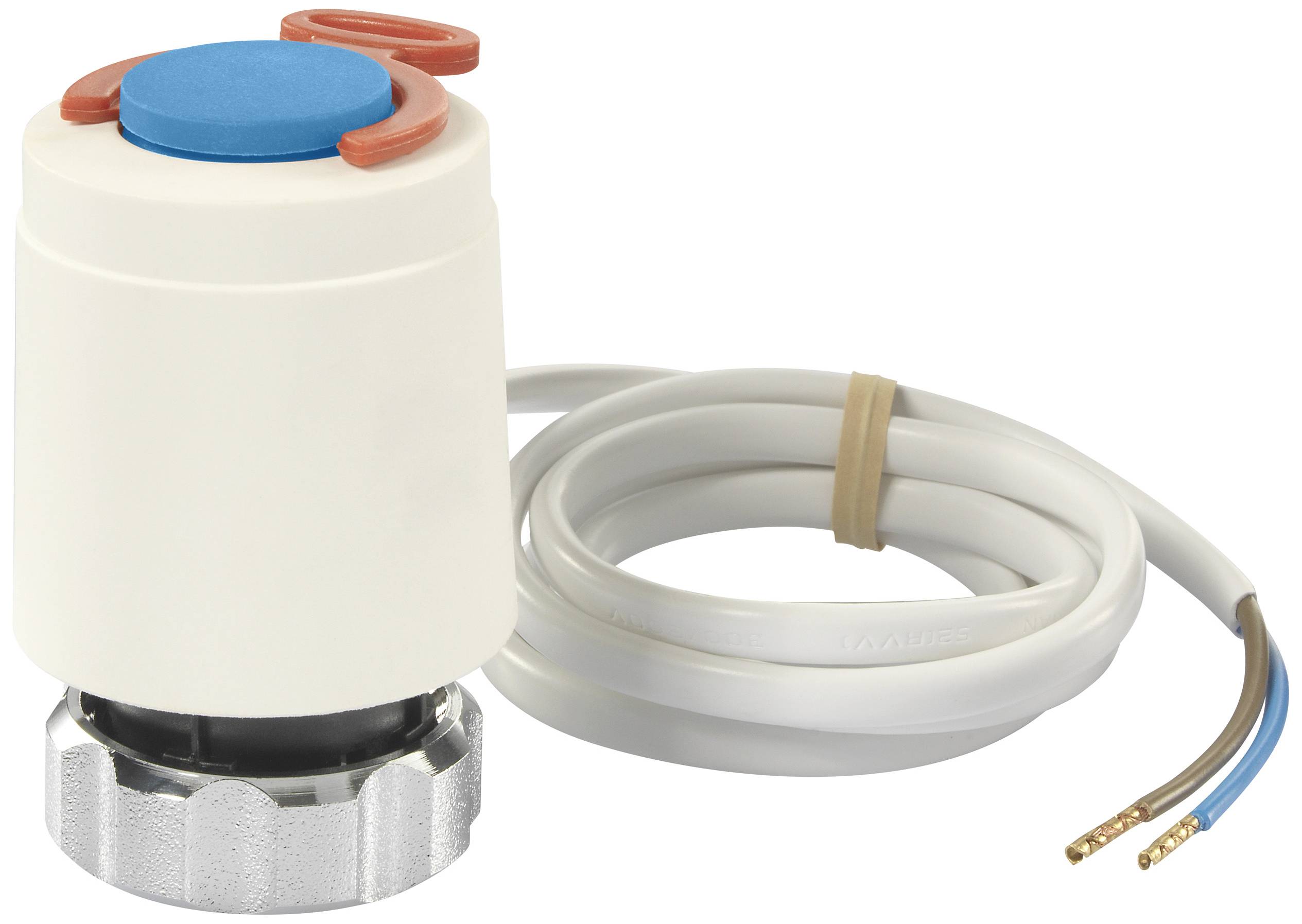

An electrical actuator with blue and red markings, connected to a cable, shows open cable ends. Suitable for heating systems.

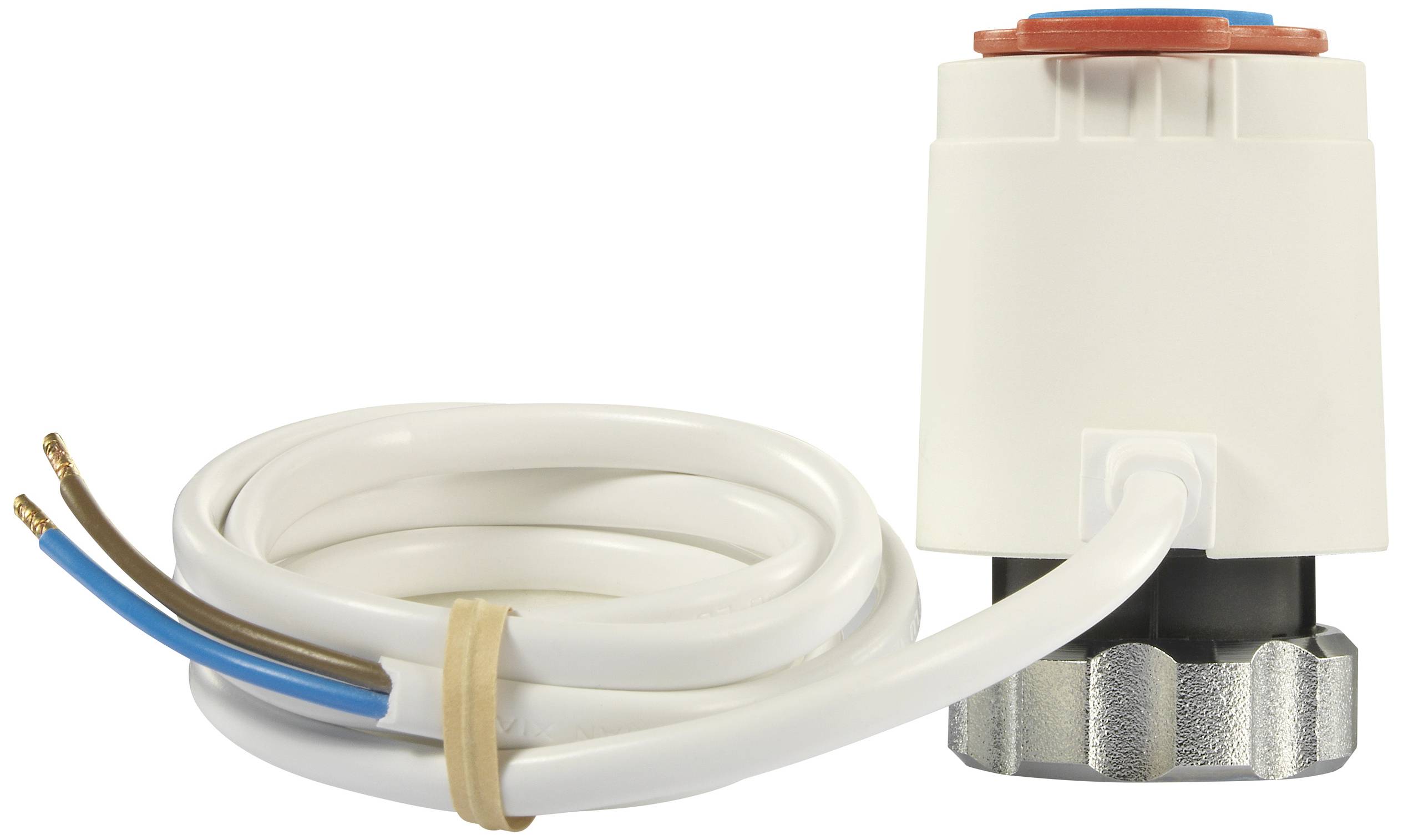

A white radiator thermostat valve with cable and exposed wires, used for controlling room temperature.

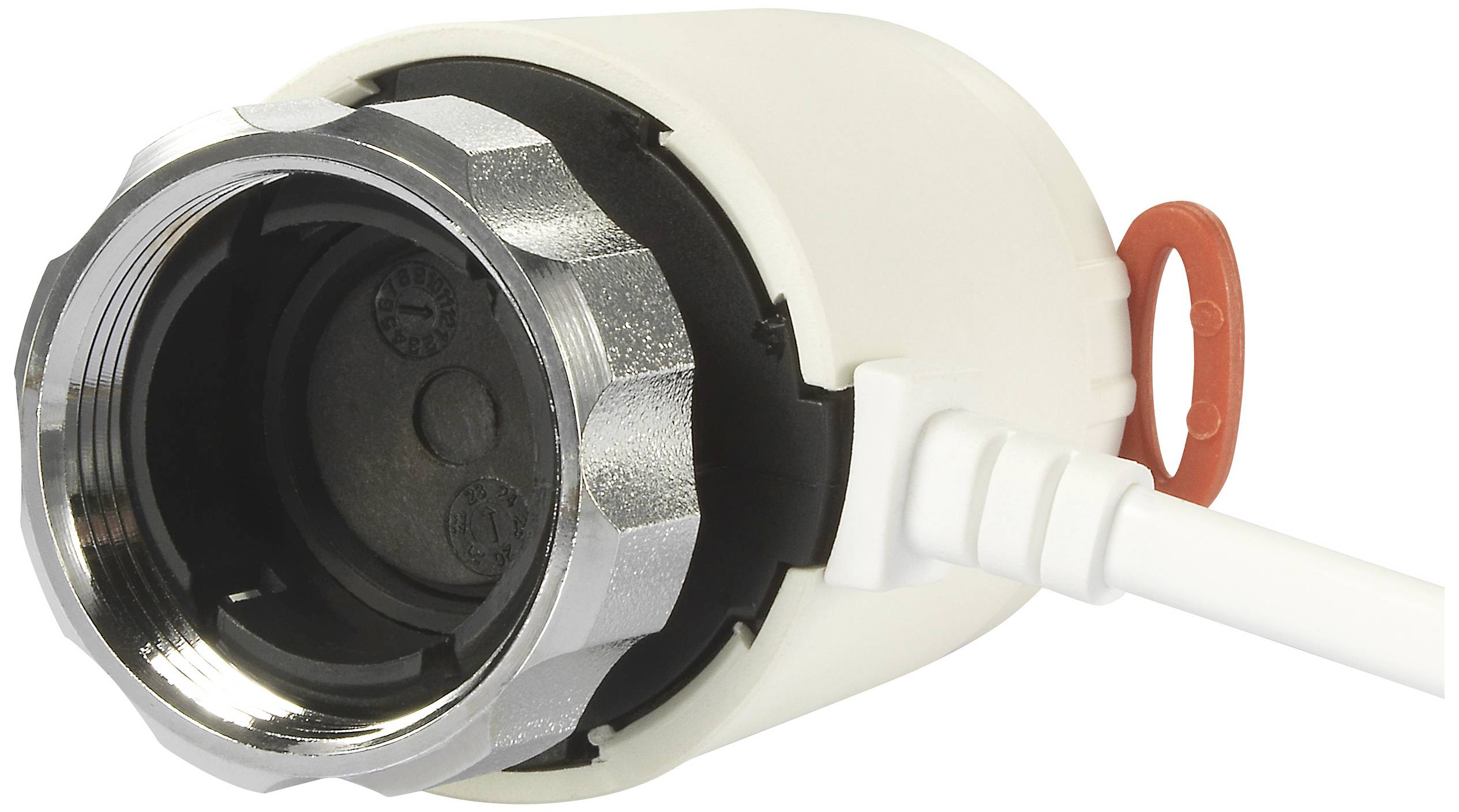

Electronic radiator thermostat in close-up with screw connection and cable. Predominantly in white and metallic colours.

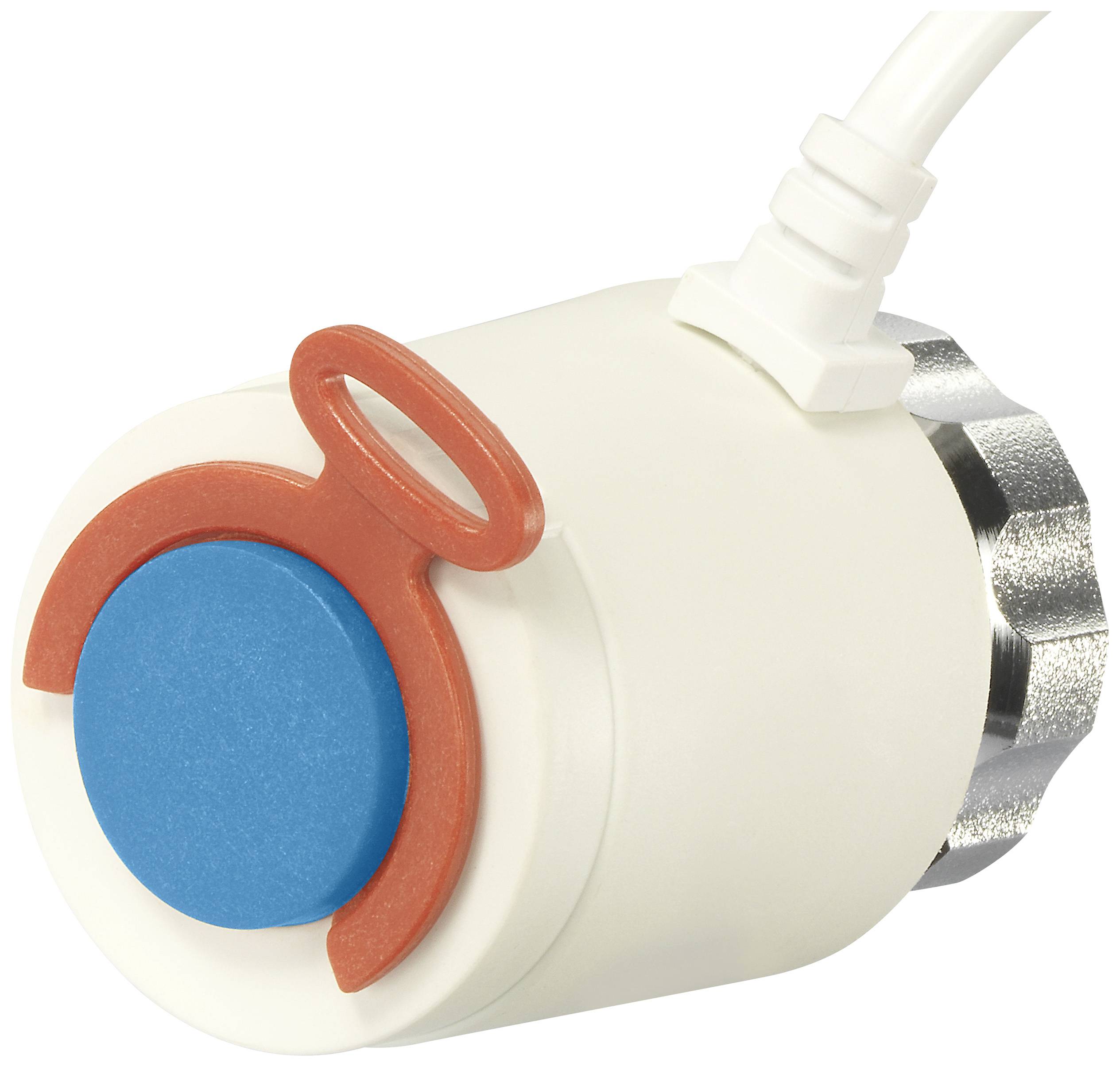

A white electric switch with a blue button and a red ring. A cable is connected.

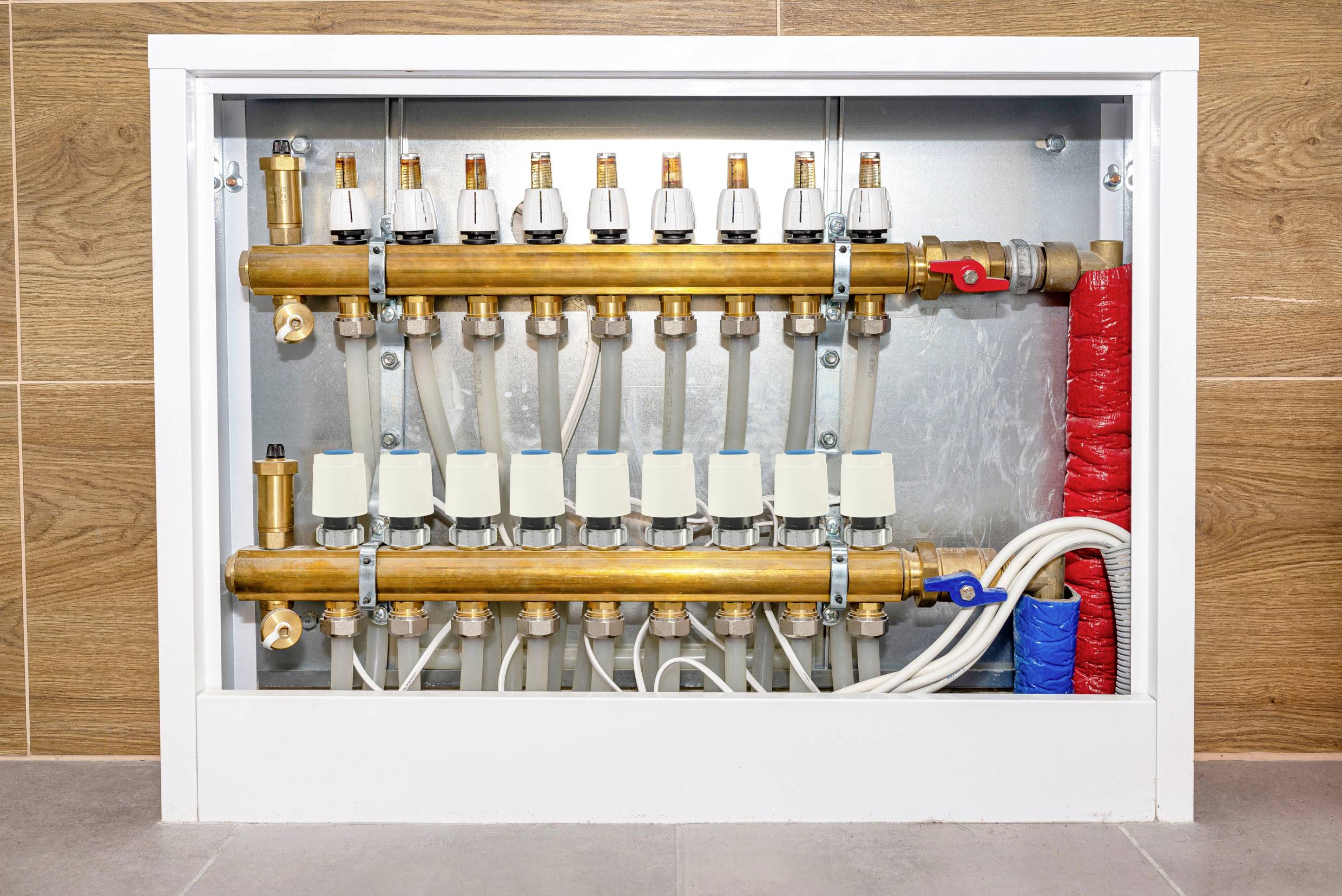

A distribution manifold with multiple pipes and valves for underfloor heating. Pipes are connected for controlling heating circuits.

A white device with a red button and cable is in the centre. Next to it are pictures of a hotel, a school, an office building, and houses.

1/6

Our service for you

Fast track dispatch on Fri, 11 Sep

911 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 10.92 / piece)

€ 10.92

plus VAT.

Report legal concerns

Highlights & Details

Thermo-electric actuator, 230V NC

For opening and closing small valves in underfloor water heating systems
Visible position indicator showing opening or closing of valve
Normally closed type

Technical specifications

Protection class: IP54
Operating voltage 230 V/AC, 50 Hz
Max. Start-up current 50 mA
Power consumption 1.5 W
Stroke: Min. 3 mm, max. 4.2 mm long
Valve connection M30 x 1.5 mm
Cable 2 x 0.75 mm², 100 cm
Closing force 110 N
Protection class II (double insulated)

Product type: Thermal actuator, passive (NC)

Operation type: thermal

Stroke: 4.2 mm

: 1.5 W

Locking force: 110 N

Operating voltage: 230 V AC

Factory colour: White

Content: 1 pc(s)

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2886727 Sygonix Thermal actuator, passive (NC) thermal

Warranty Terms

Warranty Terms 2886727 Sygonix Thermal actuator, passive (NC) thermal

Description

Energy efficient heating system regulator
The thermoelectric actuator from Sygonix can be installed quickly and easily in the heating system via its mother tongue and can be controlled by a room thermostat. The advantage is obvious: The actuator controls the interaction of thermostats and valves and thus improves the efficiency of the heating system considerably.
Straightforward and safe
The actuator is closed at rest. To ensure that even after a power failure the Sygonix actuator has a spring return function. The visible position indicator for opening or closing the valve is particularly user-friendly. The device is dust and splash-proof according to IP54.

This text is machine translated.

Features

Thermo-electric actuator
With spring return function, valve closes after power failure
Nut connection method for easy disassembly and quick and easy installation
Can be controlled by a room thermostat to reduce energy consumption from heating
IP54

Scope of delivery

Electric actuator
User manual
