Danfoss 014G1115 ECO™ Electronic TRV electronical 4 up to 28 °C
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 37.81 / piece)
€ 37.81
plus VAT.

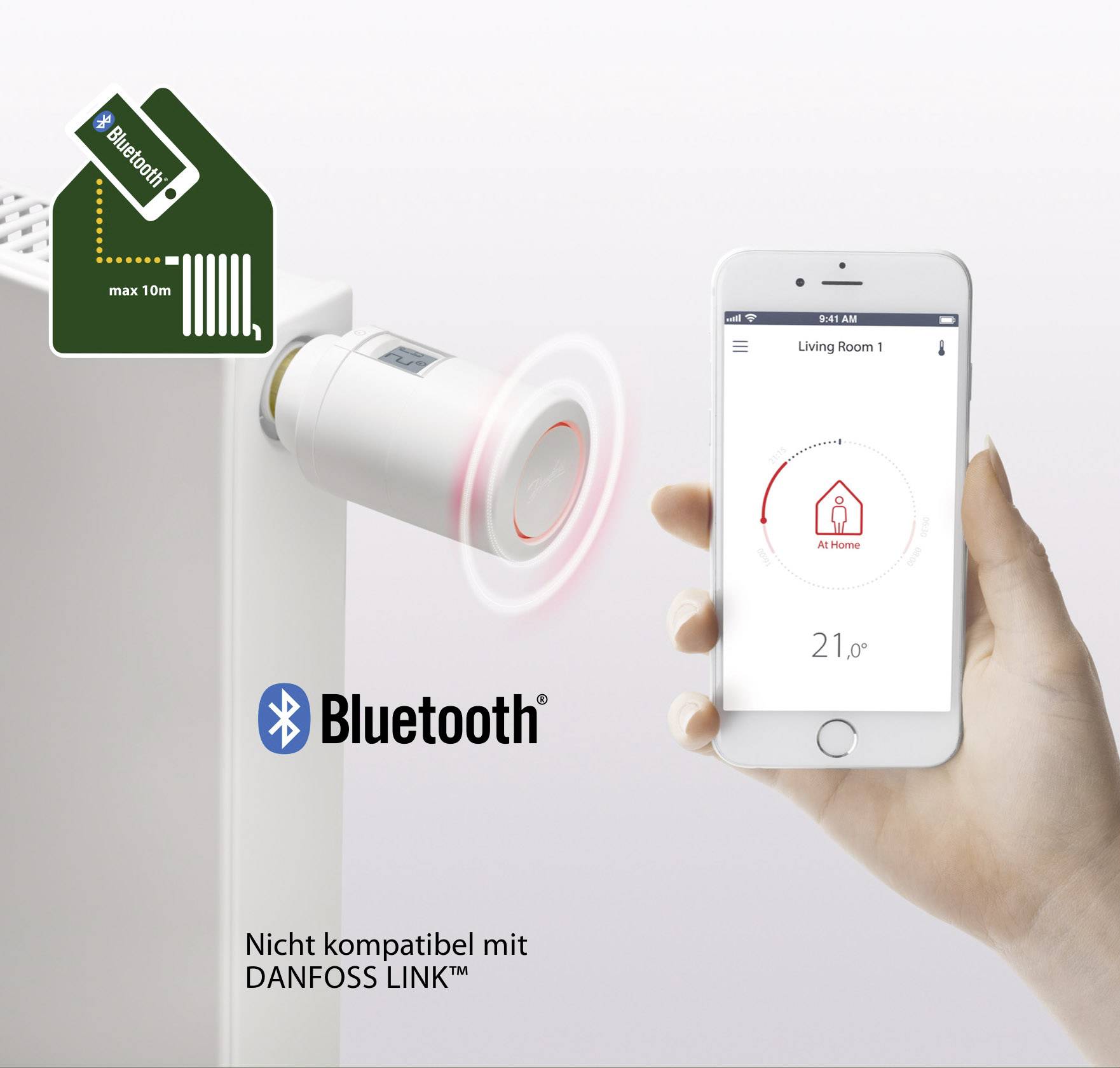

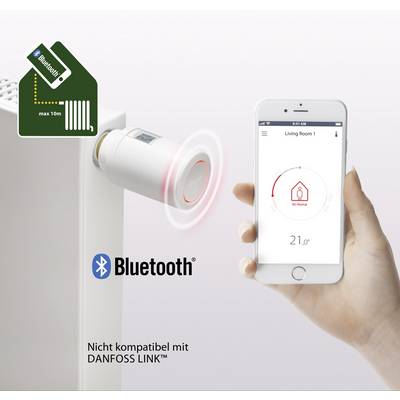

Bluetooth-enabled radiator thermostat
Highlights & Details
- Energy saving
- Easy to set up
- App-enabled
Technical specifications
- Software classification: A.
- Power supply: 2 x 1.5 V AA alkaline batteries
- Power consumption: 3 mW in standby, 1.2 W in operation
- Transmission power: Less than 2.1 mW
- Battery life: Up to 2 years
- Surrounding temperature: 0 to 40 °C
- Maximum water temperature: 90 °C.
- Temperature range 4 to 28 °C.
- Measuring frequency of the clock: +/- 10 min/year
- Measurement frequency: Temperature measurement every minute
- Spindle movement: Linear, up to 4.5 mm, max. 2 mm at the valve (1 mm/s)
- Noise level: Less than 30 dBA
- Safety class: Type 1
- Weight incl. batteries: 198 g
- Dim. (Ø x L) 55 x 81 - 93 mm
- Product type
Electronic TRV
- Operation type
electronical
- Min. temperature setting
4 °C
- Max. temperature setting
28 °C
- Switching cycle
7 day mode
- No. of daily switching programs
3
- Operating voltage
3 V
- Radio frequency
2.4 GHz
- Compatible with
Heaters
- Frost protection
Yes
- Factory colour
White
- Width
55 mm
Manufacturer-specific
- Connections (home appliances)
M30 x 1.5 adapter
Danfoss RA, RA/V & RA/VL
- Hub
Not required
- Content
1 pc(s)
- Temperature settings
4 up to 28 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2316832 Danfoss 014G1115 ECO™ Electronic TRV electronical 4 up to 28 °C
User & Safety Instructions
User & Safety Instructions 2316832 Danfoss 014G1115 ECO™ Electronic TRV electronical 4 up to 28 °C
User & Safety Instructions 2316832 Danfoss 014G1115 ECO™ Electronic TRV electronical 4 up to 28 °C
Description
Danfoss Eco™ can be installed in just 30 seconds without any problem! Adapters are available for all Danfoss thermostatic valves and most radiator valves from other manufacturers.
Danfoss Eco™ is the perfect stand-alone solution for Bluetooth control of radiator heaters in homes and houses. Intelligent heating is about adapting to the daily routine – for more comfort and increased energy savings. The easiest way to save energy at home is to turn off the heater when it is not needed – without stirring a finger. Danfoss' innovative smart heating solutions make it easier than ever to improve the indoor climate while reducing energy costs. Thanks to intuitive apps that can be used to create heat plans that are tailored to the daily routine, Danfoss solutions offer the perfect room temperature control. For every home and every need – from independant intelligent radiator thermostats to complete intelligent heating systems for complete control, anywhere, anytime.
This text is machine translated.
Danfoss Eco™ is the perfect stand-alone solution for Bluetooth control of radiator heaters in homes and houses. Intelligent heating is about adapting to the daily routine – for more comfort and increased energy savings. The easiest way to save energy at home is to turn off the heater when it is not needed – without stirring a finger. Danfoss' innovative smart heating solutions make it easier than ever to improve the indoor climate while reducing energy costs. Thanks to intuitive apps that can be used to create heat plans that are tailored to the daily routine, Danfoss solutions offer the perfect room temperature control. For every home and every need – from independant intelligent radiator thermostats to complete intelligent heating systems for complete control, anywhere, anytime.
This text is machine translated.
Features
- Easy app programming
- Easy-to-use UI.
- Automatic software updates
- Manual operation
- "Window open" function
- Low noise level
- Precise PID temperature control
- Adaptive learning
- Day and night temperature reduction, weekly schedule, holiday and break function
- Well readable LCD-display
- Display rotation - 180°
- Protection against unauthorized use
- Low battery power signal
- Three temperature reduction periods per day
- Individual individual programs for the entire week.
Scope of delivery
- ADAPTER M30, RA, RA/V & RA/VL
- User manual.
Hints
Not compatible with Danfoss LINK.
Batteries not included. Please order separately.
System requirements
- IOS, Android
