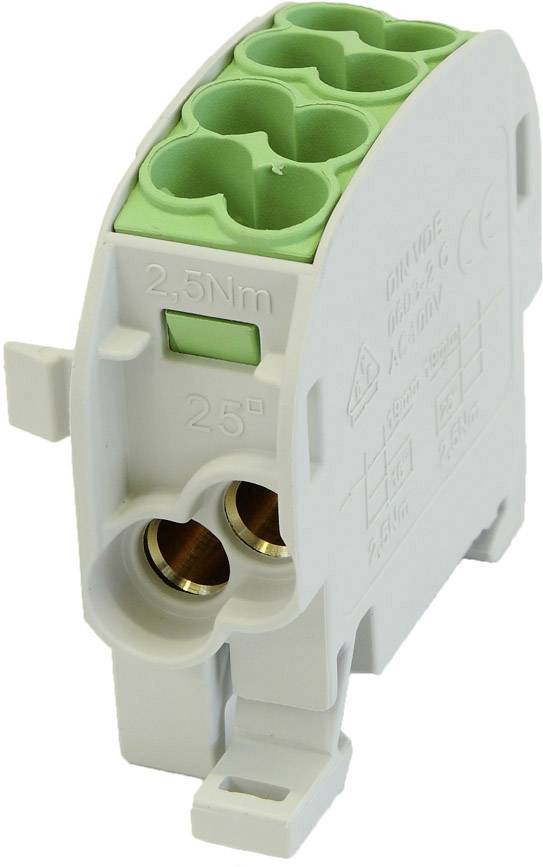

HoraeTec 080110-2-3 Main tap terminal PA, Brass Grey-white (RAL 7035), Yellow, Green 1-pin 100 A 690 V Conductor type =
EAN:
Part number:
Item no:
Product type
Main tap terminal
Number of pins
1
Nominal current - rounded value
100 A
Nominal voltage
690 V
Type
Main cable branch terminal 25 mm²-1-pin
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 17.64
3
4% = € 0.79
€ 16.85
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 5 pc(s))
Total (€ 17.64 / piece)
€ 17.64
plus VAT.
Highlights & Details
Set of 5 main lead branch terminal 25 mm²
- For aluminum and copper conductor
- On all sides finger-safe design
- Can be stacked end up to a maximum of 5-pin
Technical specifications
- Nominal voltage
690 V
- Type
Main cable branch terminal 25 mm²-1-pin
- Product type
Main tap terminal
- Factory colour
Grey-white (RAL 7035)
Yellow
Green
- Number of pins
1
- Dim
(W x H x D) 24.8 x 49.4 x 55.7 mm
- Nominal current
100 A
- Nominal current - rounded value
100 A
- Type
Type C-moveable finger-safe, modular
- Conductor type
PE
- Material
PA
Brass
- Width
24.8 mm
- Height
49.4 mm
- Depth
55.7 mm
Documents & Downloads
Datasheet
Datasheet 1606553 HoraeTec 080110-2-3 Main tap terminal PA, Brass Grey-white (RAL 7035), Yellow, Green 1-pin 100 A 690 V Conductor type =
User & Safety Instructions
User & Safety Instructions 1606553 HoraeTec 080110-2-3 Main tap terminal PA, Brass Grey-white (RAL 7035), Yellow, Green 1-pin 100 A 690 V Conductor type =
Description
Access/outlet 2 x 25 mm² + 2 x 16 mm² according to EN 60947-7-1/EN 61238-1 "Class A" and UL 1059 with clip-on fastening for horizontal mounting. 1 Insert with 4 clamping points (type "PE") green yellow.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Content: 5pc set
- This text is machine translated.
