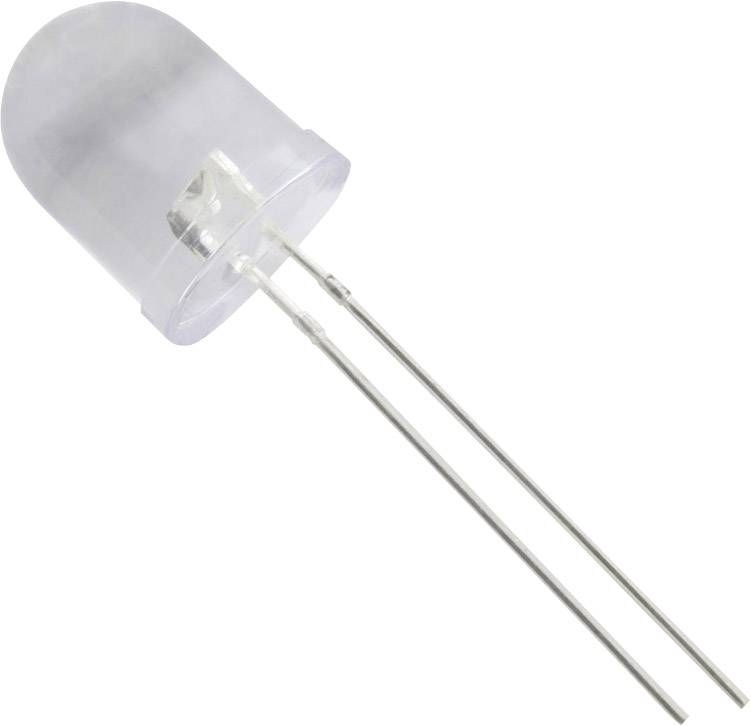

HuiYuan 10034R1C-CSE-E LED wired Red Circular 10 mm 8500 mcd 25 ° 20 mA
EAN:
Part number:
Item no:
Product type
LED wired
Forward current I(F)
20 mA
Casing
10 mm
Type
Radial lead
Light intensity I(V)
8500 mcd
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.31
30
6% = € 0.02
€ 0.29
50
13% = € 0.04
€ 0.27
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 0.31 / piece)
€ 3.10
plus VAT.
14-day return policy included
Technical specifications
- Product type
LED wired
- Factory colour
Red
- Forward current I(F)
20 mA
- Operating voltage
2.3 V
- Casing
10 mm
- Type
Radial lead
- Light intensity I(V)
8500 mcd
- Wavelength
628 nm
- Radiation angle
25°
- Type (LEDs)
Water clear
- LED features
LED 10 mm
- Technology
AlGaInP
- Lens type
Circular
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1603207 HuiYuan 10034R1C-CSE-E LED wired Red Circular 10 mm 8500 mcd 25 ° 20 mA
Description
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
