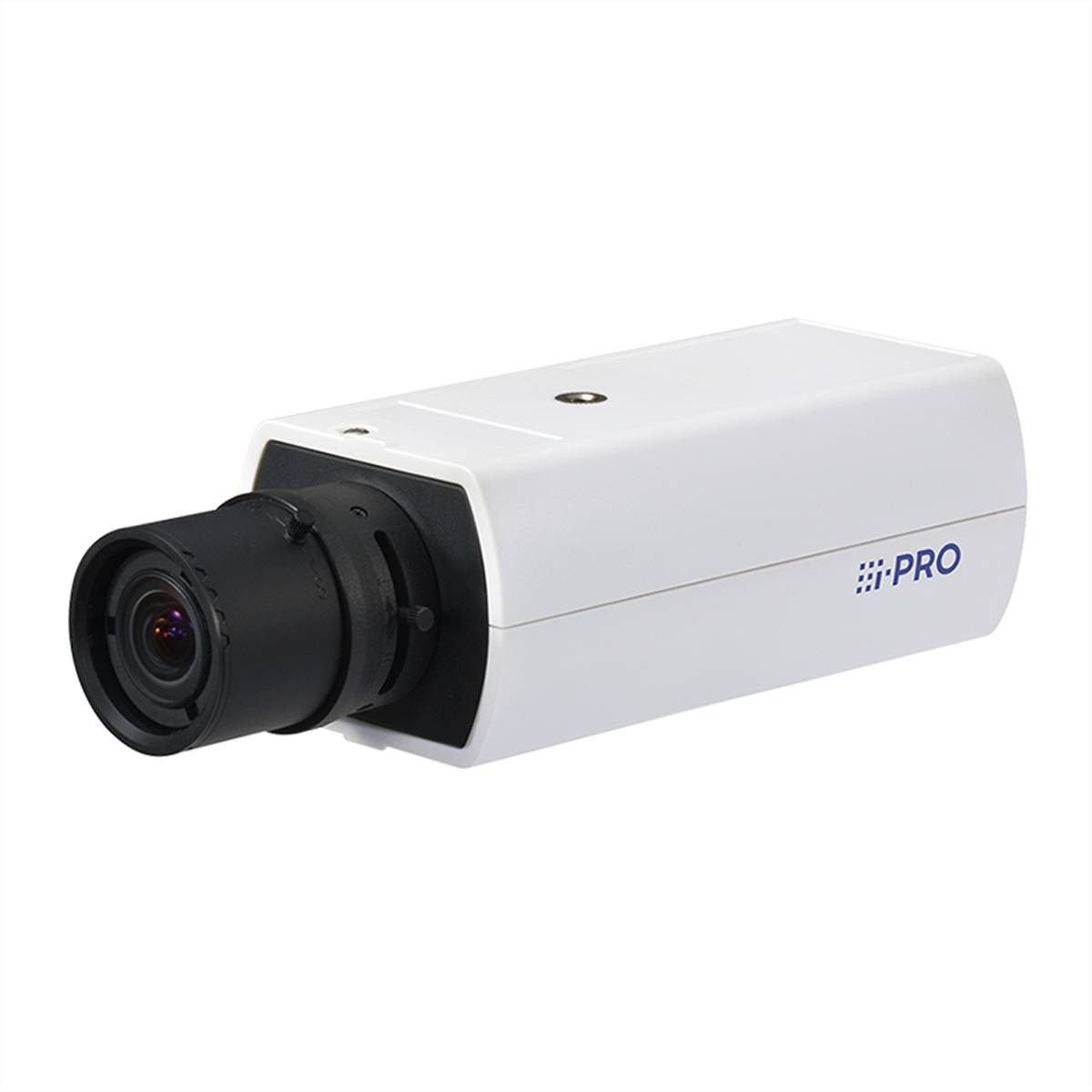

i-PRO Netzwerkkamera WV-S1136A
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
I-PRO WV-S1136A security camera Turret IP security camera indoors 2688 x 1520 pixels
- Indoor IP security camera
- CMOS 25.4 / 2.8 mm (1 / 2.8") 16 MP 2688 x 1520 pixels
- Wired Ethernet/LAN
- Night vision 20 m
- Optical Zoom 2.5x
- Turret ceiling
- IP66, IP67 IK10
- Black, White
- 3.3 kg
Technical specifications
- Supported positioning: Indoors
- Form factor: Turret
- International protection class (IP code): IP66, IP67
- Supported audio formats: AAC-LC,G.711,G.726
- Transfer type
Corded
- Width
300 mm
- Depth
90 mm
- Weight
3.3 kg
- Factory colour
Black
White
- Bluetooth
No
- Display resolution
2688 x 1520 Pixel
- Playback of
AAC-LC
- Type
IP-security camera
- Rotation
270°
- 10/100/1000 Mbps ports
1 x
- Sensor type
CMOS
- Wi-Fi
No
- UKCA
not relevant
- Operating temperature (T-T)
-40 - 60 °C
- Ethernet LAN
yes
- Minimum illumination
0.008 Lux
- Auto focus
yes
- Optical sensor size
25,4 / 2,8 mm (1 / 2.8")
- Number of sensors
1
- Fixed focus
yes
- Noise reduction
yes
- Web browser
yes
- Detect distance (wide)
45.1 m
- Detect distance (tele)
136.5 m
- Observe distance (wide)
18 m
- Observe distance (tele)
54.6 m
- Recognize distance (wide)
9 m
- Recognize distance (tele)
27.3 m
- Identify distance (wide)
4.5 m
- Identify distance (tele)
13.6 m
- Highlight Compensation (HLC)
yes
- Dynamic range
144 dB
- Card reader integrated
yes
- Video intelligence analytic
yes
- Number of Privacy masking areas
8
- Night vision
yes
- Video motion detection
yes
- Audio detection
yes
- Operating relative humidity (H-H)
10 - 100 %
- Number of languages
9
- Optical zoom
2.5 x
- Total megapixels
16 MP
- Back Light Compensation (BLC)
yes
- Fog proof
yes
Documents & Downloads
Datasheet
Datasheet 3798720 i-PRO Netzwerkkamera WV-S1136A
User & Safety Instructions
User & Safety Instructions 3798720 i-PRO Netzwerkkamera WV-S1136A
Description
Type : IP security camera
Bluetooth : No.
Wi-Fi : No.
Maximum resolution : 2688 x 1520 pixels
Form factor : Turret
Auto focus : Yes
Supported audio formats : AAC-LC, G.711, G.726
Ethernet/LAN : Yes
Compatible memory cards : MicroSD (TransFlash), MicroSDHC, microSDXC, SD, SDHC, SDXC
Number of Ethernet LAN connections (RJ-45) : 1
Integrated Card Reader : Yes
Product Colour : Black, White
Video compression formats : H.264, H.265
Relative humidity in operation : 10 - 100%
Operating temperature: -40 to + 60 °C.
Width 300 mm
Depth : 90 mm
Weighs 3.3 kg.
Certificates of Conformity : National Defense Authorization Act (NDAA)
This text is machine translated.
Bluetooth : No.
Wi-Fi : No.
Maximum resolution : 2688 x 1520 pixels
Form factor : Turret
Auto focus : Yes
Supported audio formats : AAC-LC, G.711, G.726
Ethernet/LAN : Yes
Compatible memory cards : MicroSD (TransFlash), MicroSDHC, microSDXC, SD, SDHC, SDXC
Number of Ethernet LAN connections (RJ-45) : 1
Integrated Card Reader : Yes
Product Colour : Black, White
Video compression formats : H.264, H.265
Relative humidity in operation : 10 - 100%
Operating temperature: -40 to + 60 °C.
Width 300 mm
Depth : 90 mm
Weighs 3.3 kg.
Certificates of Conformity : National Defense Authorization Act (NDAA)
This text is machine translated.
Scope of delivery
- I-PRO WV-S1136A 2MP Indoor Box network camera with AI engine
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
